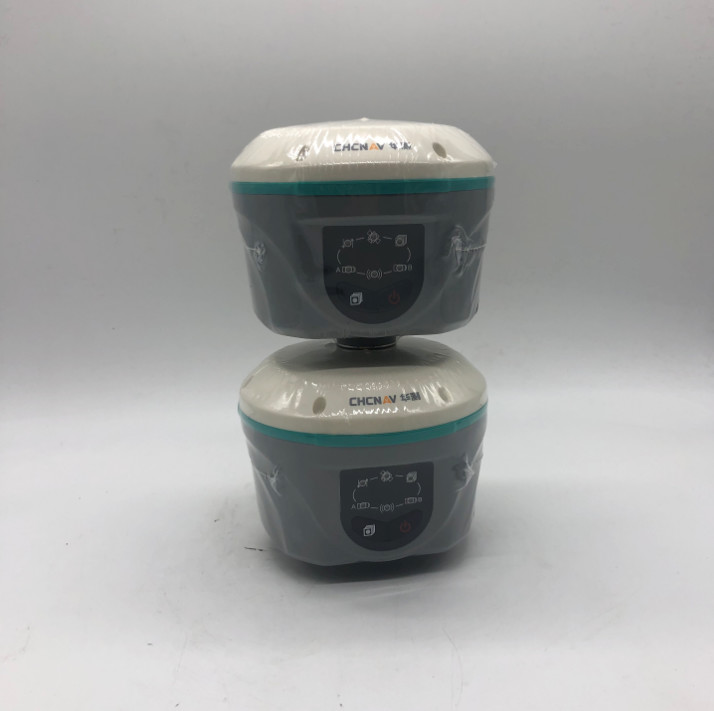

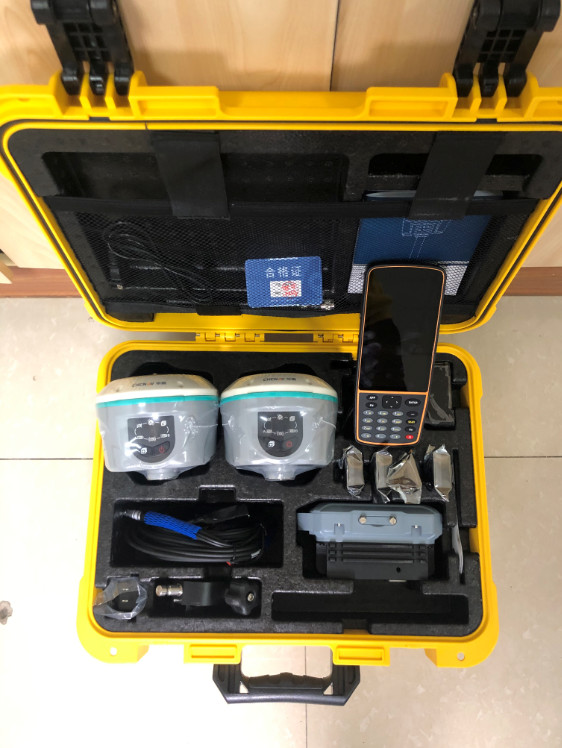

Surveying Instrument CHC T3 GPS Receiver GNSS RTK

Basic Information
Place of Origin: China
Brand Name: CHC
Certification: CE
Model Number: T3
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detail Information
Products Name: GPS RTK Receiver Channels: 576
Satellite Tracking: Beidou Frequency: 410~470MHz
Initialization Time: Typically < 8 Seconds, Typically 2s-8s, <5 Secs, < 10s, Typically <15s Internal Momery: 8GB, 32GB
High Light:

bluetooth rtk gps receiver

,

trimble gnss receiver


Product Description

CHC T3 small GNSS RTK receiver with High Accuracy and Dual Frequency

Dual battery, longer time measurement

When RTK is measured outdoors, the battery power determines the time and efficiency of the work.Battery life is a perennial problem.T3 USES intelligent dual-battery design, with a total of 6800mAh for two batteries, which can switch power mode according to the battery condition.



Waterproof unafraid of condensation

Let T3 become a "breathing" RTK receiver, Make the T3 an RTK receiver that can 'breathe'. Compared to a completely sealed receiver, T3 can drain water molecules through a waterproof and breathable membrane to avoid condensation inside the device and water accumulation



Project Details Performance Data
characteristic Satellite tracking Beidou
channels 576
Operating system LINUX operating system
Dry-Tec Yes
Initialization time 5s
Data output rate Maximum 50 hz
Initialization
reliability
>99.99%
Appearance Appearance Streamline cylinders.
Keys 1 power button and 1 static switch key.
Indicator light A differential signal lamp.
1 satellite lamp
1 data collection lamp.
2 power indicator lights.
1 WiFi indicator light.
Accuracy static accuracy Plane accuracy:±(2.5+ 0.5×10-6×D) mm
Elevation accuracy:±(5+0.5×10-6×D) mm
RTK accuracy Plane accuracy:±(8 + 1×10-6×D) mm
Elevation accuracy:±(15+ 1×10-6×D) mm
Single machine 1.5m
Code difference Plane accuracy:±0.25m+1ppm
Elevation accuracy:±0.50m+1ppm
Electrification
parameter
power consumption   3.2W
Battery capacity   3400mAh*2*7.4V=50.32Wh
Battery technology   Dual battery intelligent power supply system.
Working time   RTK mode 12 hours, external direct current,
dual battery power automatic switching.
external power source 9-36V DC
Physical
properties
size 13.5cm×10.6cm
Weight ≤1Kg
material AZ91D magnesium alloy
Working temperature -45℃~+75℃
Storage temperature -55℃~+85℃
Wet degree 100% no condensation
Waterproof and
dustproof
IP68
Impact vibration IK08
Communications I/O port 1 external UHF antenna port
1 seven-pin LEMO data port.
1 mini USB data transmission port.
1 micro SIM card slot
Difference format   RTCM3.2,RTCM3.X,CMR,CMR+,
CMRx,RTCM2.3
Built-in radio Power: 0.1W-2W adjustable.
Frequency: 450-470mhz
Protocol: CHC
WiFi 802.11 B/G/N
bluetooth BT 4.0, which is compatible with bt2.x,
supports the Win/Android/IOS system.
NFC controller and host touch can make the
wifi automatic connection
