| Place of Origin: | China |
|---|---|
| Brand Name: | MATO |
| Certification: | CE |
| Model Number: | MTS602L |
| Minimum Order Quantity: | 1pc |
| Price: | usd1500 |
| Packaging Details: | with plastic case inner and the carton outer |
| Delivery Time: | within 3-5days after the goods are paid. |
| Payment Terms: | TT |
| Supply Ability: | 10000 Per Year |
| High Light: | reflectorless total station,robotic total station |
||
|---|---|---|---|

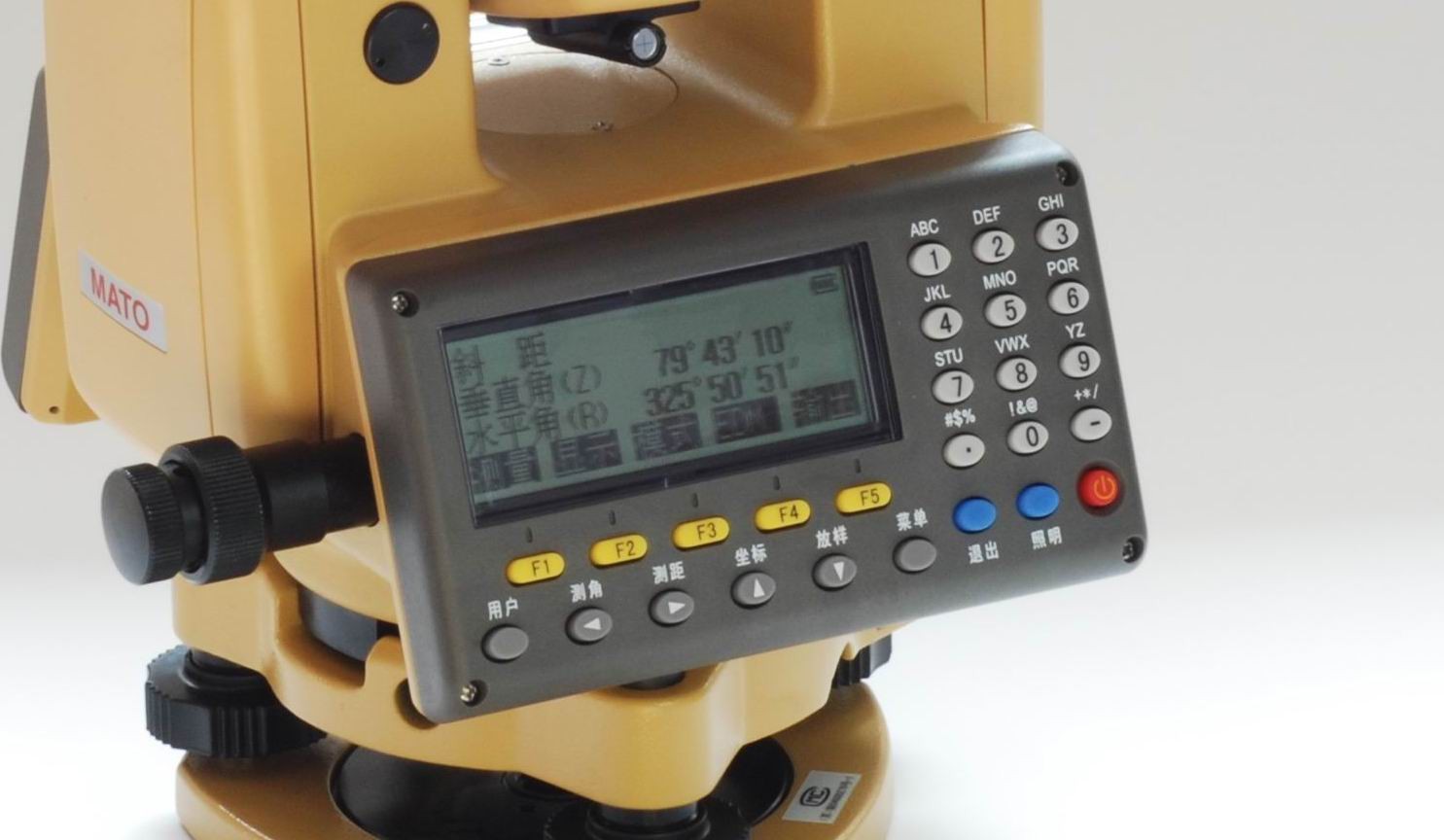

MATO MTS602L Total Station :
|
MODEL |
MTS-602R |
MTS-602L |
MTS-605L |
|
Telescope |
|||
|
Image |
Erect |
||
|
Magnification |
30X |
||
|
Effective Aperture |
45mm |
||
|
Resolving Power |
4" |
||
|
Field Of View |
1°30' |
||
|
Minimum Focus |
1.5m |
||
|
Distance Measurement (under Fair Weather Condition)PRISMLESS |
|||
|
Range 1P |
200M |
2km |
1.6km |
|
3P |
3km |
2.5km |
|
|
Accuracy |
2mm+2ppmxD |
||
|
Minimum Count |
1mm |
||
|
Distance Unit |
ft.Or m selectable |
||
|
Measuring Time |
|||
|
Fine |
1.8sec.(first time2.5sec.) |
||
|
Tracking |
0.4 Sec. |
||
|
Maximum display |
999999.999m |
||
|
Atmospheric Correction |
|||
|
Temperature |
C or F |
||
|
Atmospheric Pressure |
hPa/mmH/inHg |
||
|
Atmospheric Deflection & |
|||
|
Earth Curvature Correction |
k=0.14/0.20/0 |
||
|
Prism Constant |
0 mm / 30 mm |
||
|
Angle Measurement |
|||
|
Measurement Method |
Incremental Photoelectronic Encoder |
||
|
Detection Method |
|||
|
Horizontal |
Dual |
||
|
Vertical |
Dual |
||
|
Accuracy |
2" |
2" |
5" |
|
Minimum Readout |
1"and5" |
1"and5" |
5"and10" |
|
Sensitivity of Vials |
|||
|
Plate Vial |
30"/2mm |
||
|
Circular Vial |
8'/2mm |
||
|
Vertical Compensation |
Available |
||
|
Type |
Liquid-electric detection/Plate level |
||
|
Compensation Range |
+/-3' |
||
|
Resolution |
1" |
||
|
Optical Plummet |
|||
|
Image |
Erect |
||
|
Magnification |
3X |
||
|
Focus Rang |
0.5m-infinity |
||
|
Display |
Double Side, LCD, Four-line Display |
||
|
Data Port |
RS-232 |
||
