| Place of Origin: | China |
|---|---|
| Brand Name: | Mato |
| Certification: | CE |
| Model Number: | Met202 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | With Standard Export Packing ways |
| Delivery Time: | 5-8 days, Specific need for consultation |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 pieces per year |
| Brand: | Mato | Manigfication: | 30X |
|---|---|---|---|
| Model Number: | Met202 | Color: | Red |
| High Light: | total station theodolite,micro optic theodolite |
||
|

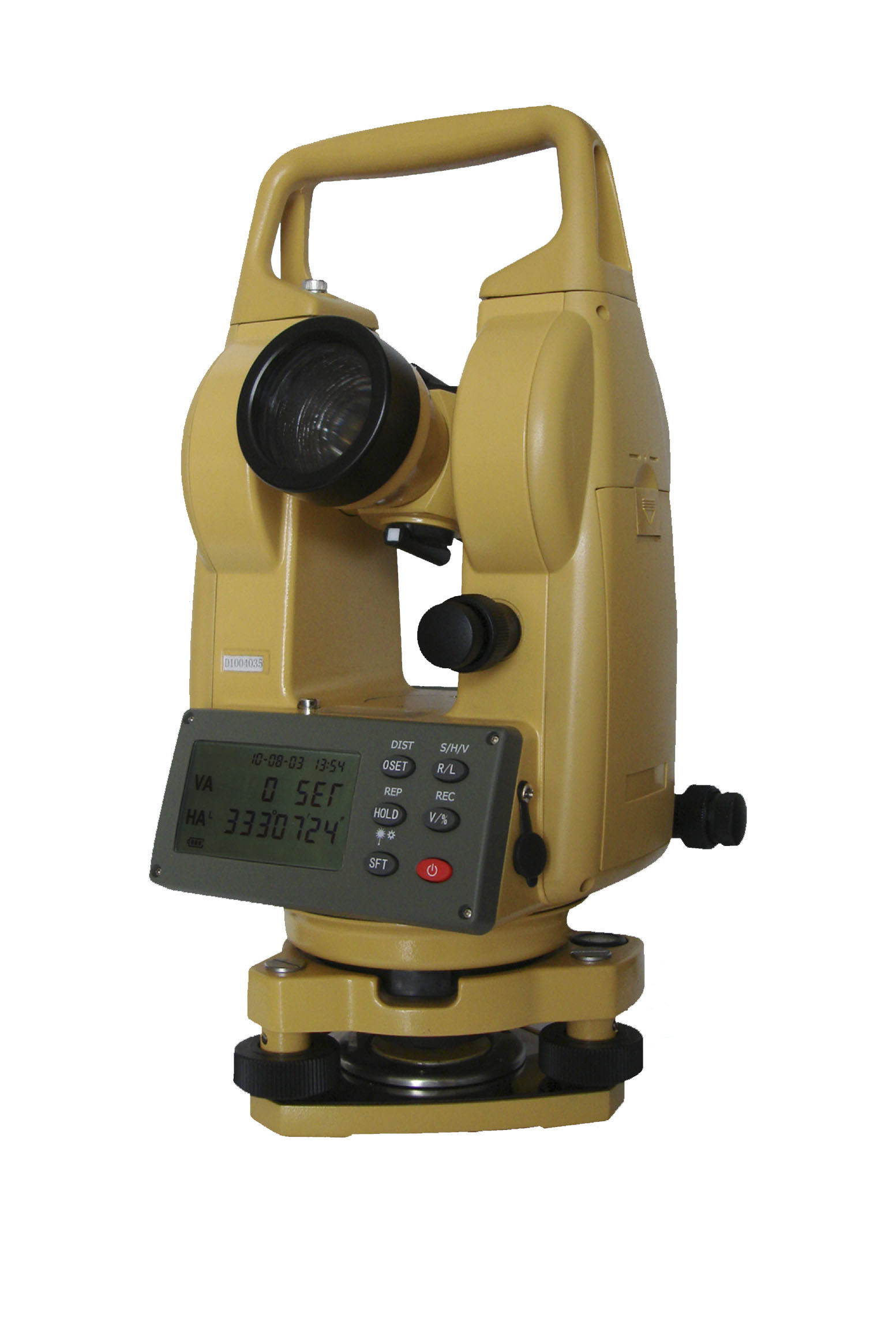

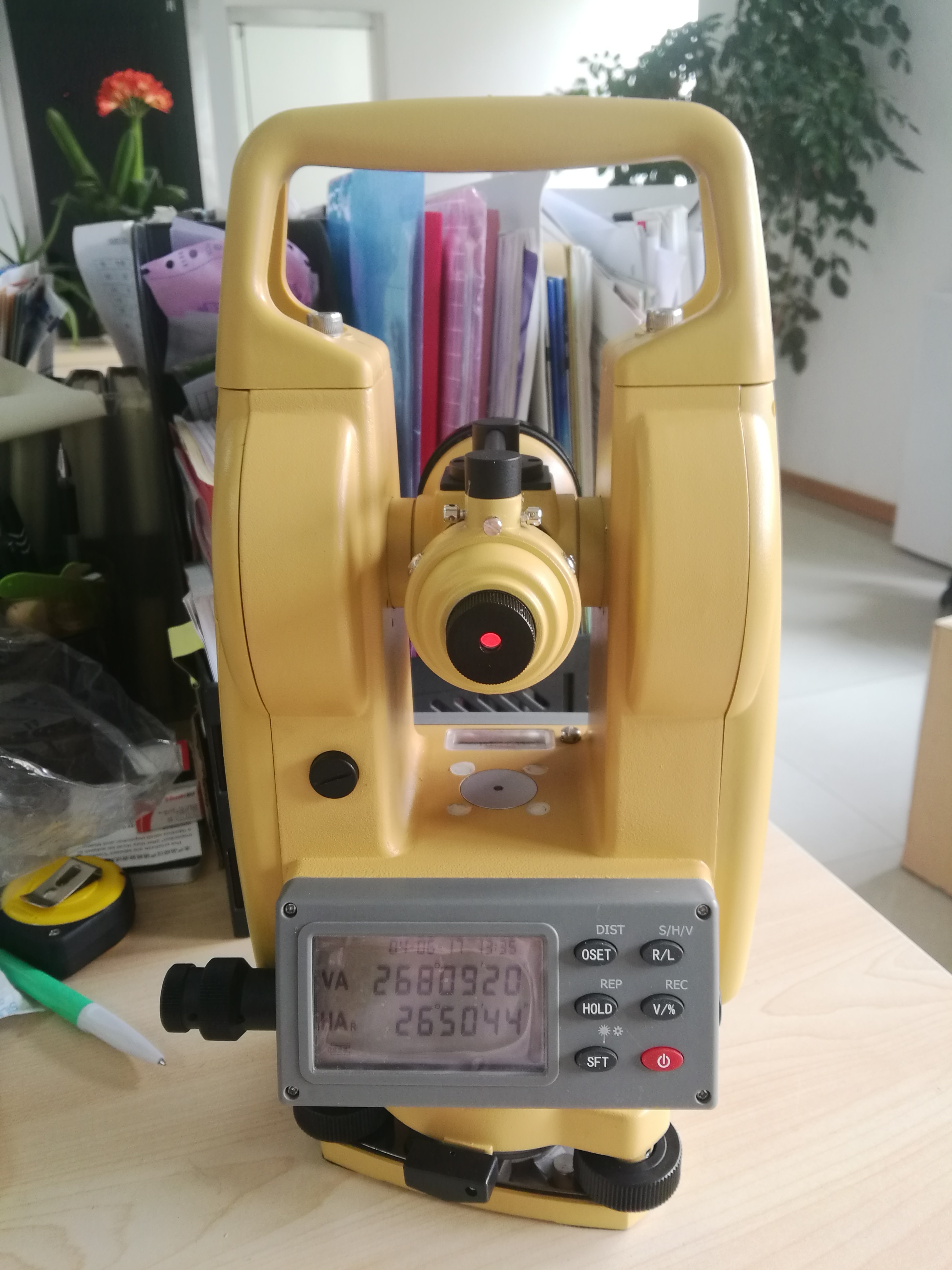

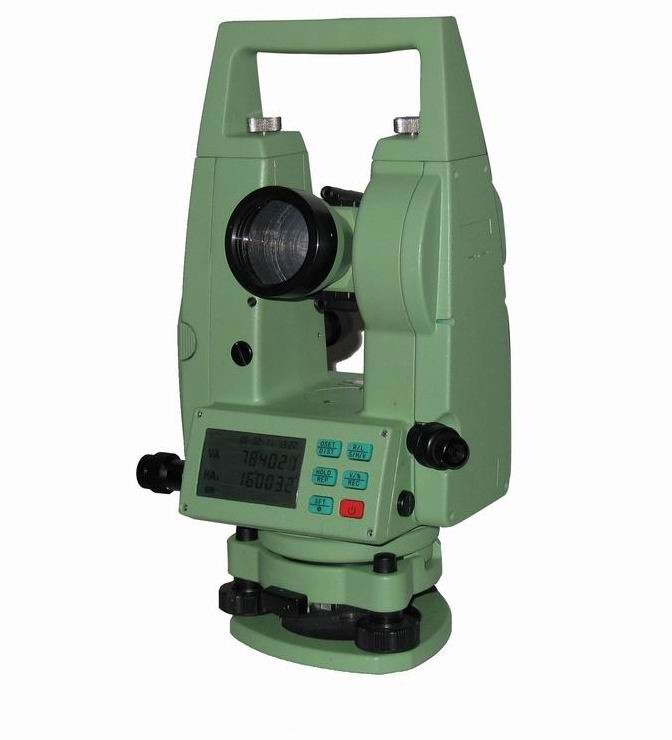

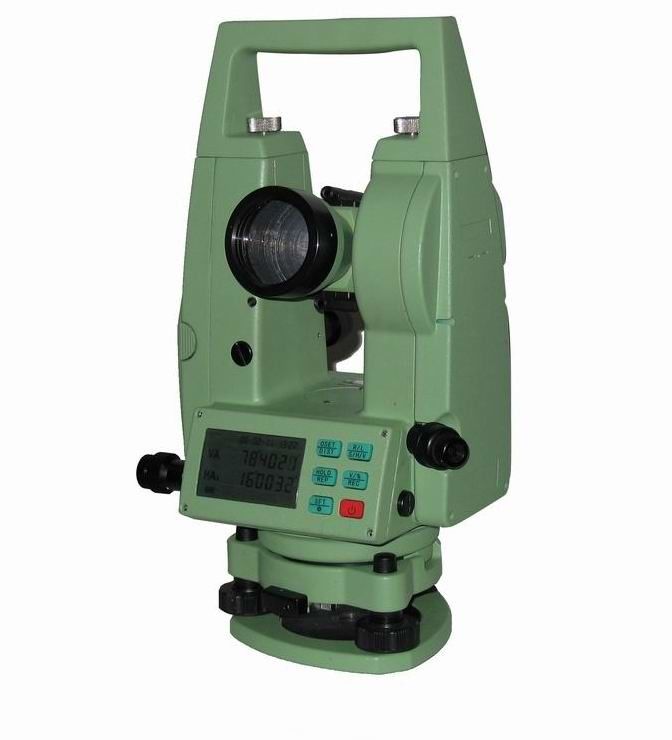

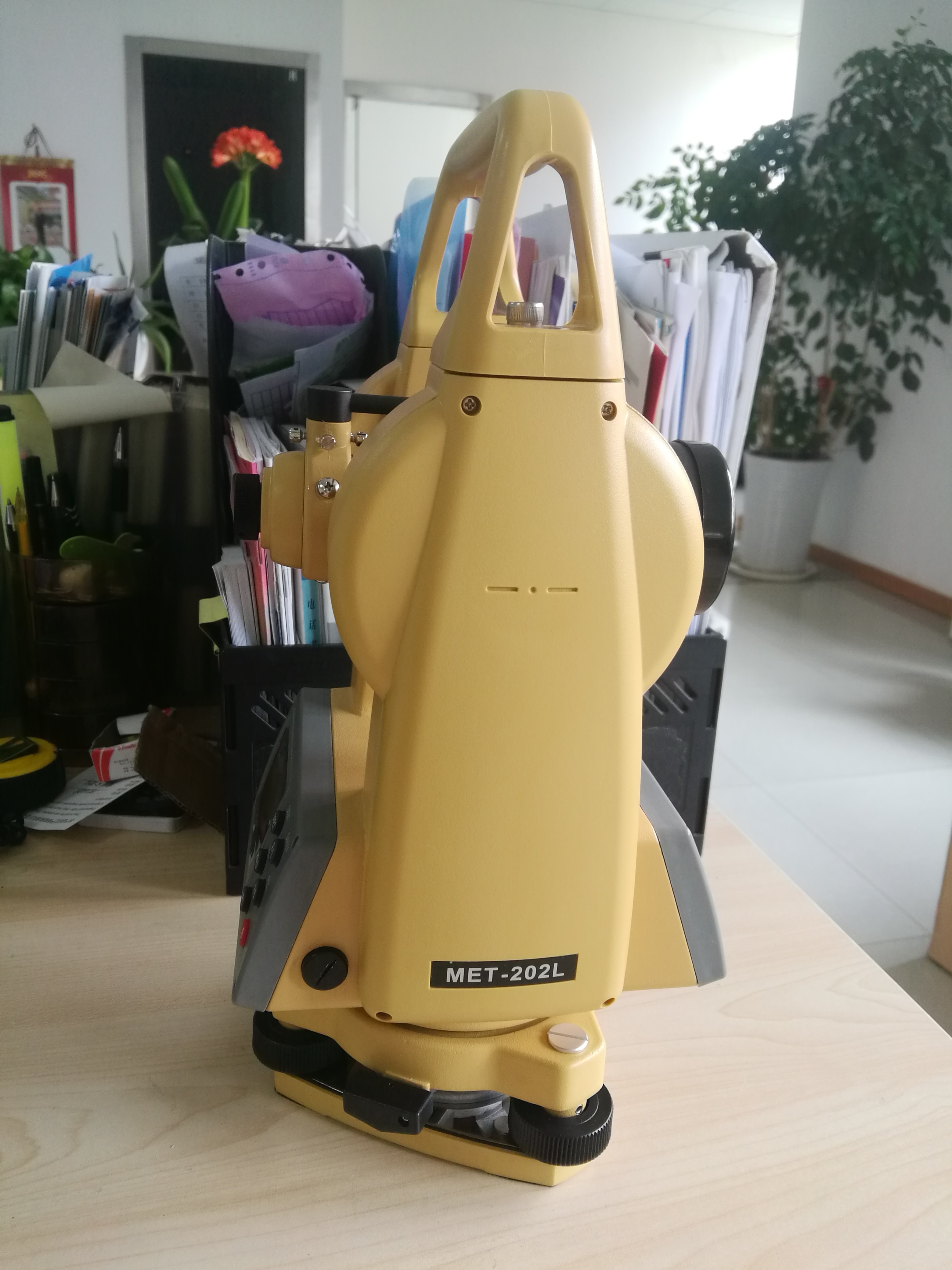

MET-202 |
MET-205 |
MET-210 |
|
|
Telescope |
|||
|
Length |
165mm |
165mm |
165mm |
|
Objective lens aperture |
45mm |
45mm |
45mm |
|
Magnification |
30X |
30X |
30X |
|
Image |
Erect |
Erect |
Erect |
|
Field of view |
1°30′ |
1°30′ |
1°30′ |
|
Resolving power |
3.3″ |
3.3″ |
3.3″ |
|
Shortest sighting distance |
1m |
1m |
1m |
|
Additive constant |
0 |
0 |
0 |
|
Stadia proportion constant |
100 |
100 |
100 |
|
Angle measurement |
|||
|
Minimum reading |
1"/5" |
1"/5"/10" |
1"/5"/10"/20" |
|
Accuracy |
2" |
5" |
10" |
|
Display |
|||
|
Display method |
Double sides display |
Double sides display |
One side |
|
IIIumination |
Provided |
Provided |
Provided |
|
Compensator |
|||
|
Tilt sensor |
A provided |
A provided |
B unprovided |
|
Compensating range |
±3′ |
±3′ |
- |
|
Optical plummet |
|||
|
Magnification |
3X |
3X |
3X |
|
Field of view |
5° |
5° |
5° |
|
Focusing rang |
0.5m∼∞ |
0.5m∼∞ |
0.5m∼∞ |
|
Level sensitivity |
|||
|
Plate level |
30″/2mm |
30″/2mm |
30″/2mm |
|
Circular level |
8′/2mm |
8′/2mm |
8′/2mm |
|
Data output |
|||
|
Output interface |
RS232C |
RS232C |
RS232C |
|
Power supply |
|||
|
Battery |
Four XAAsize batteries |
Four XAAsize batteries |
Four XAAsize batteries |
