| Place of Origin: | China |
|---|---|
| Brand Name: | Stonex |
| Certification: | CE |
| Model Number: | S800 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 3 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per month |

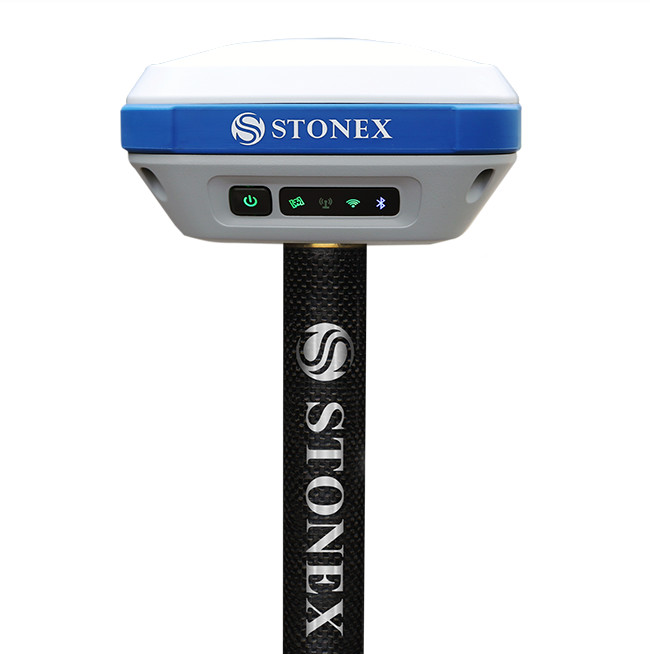

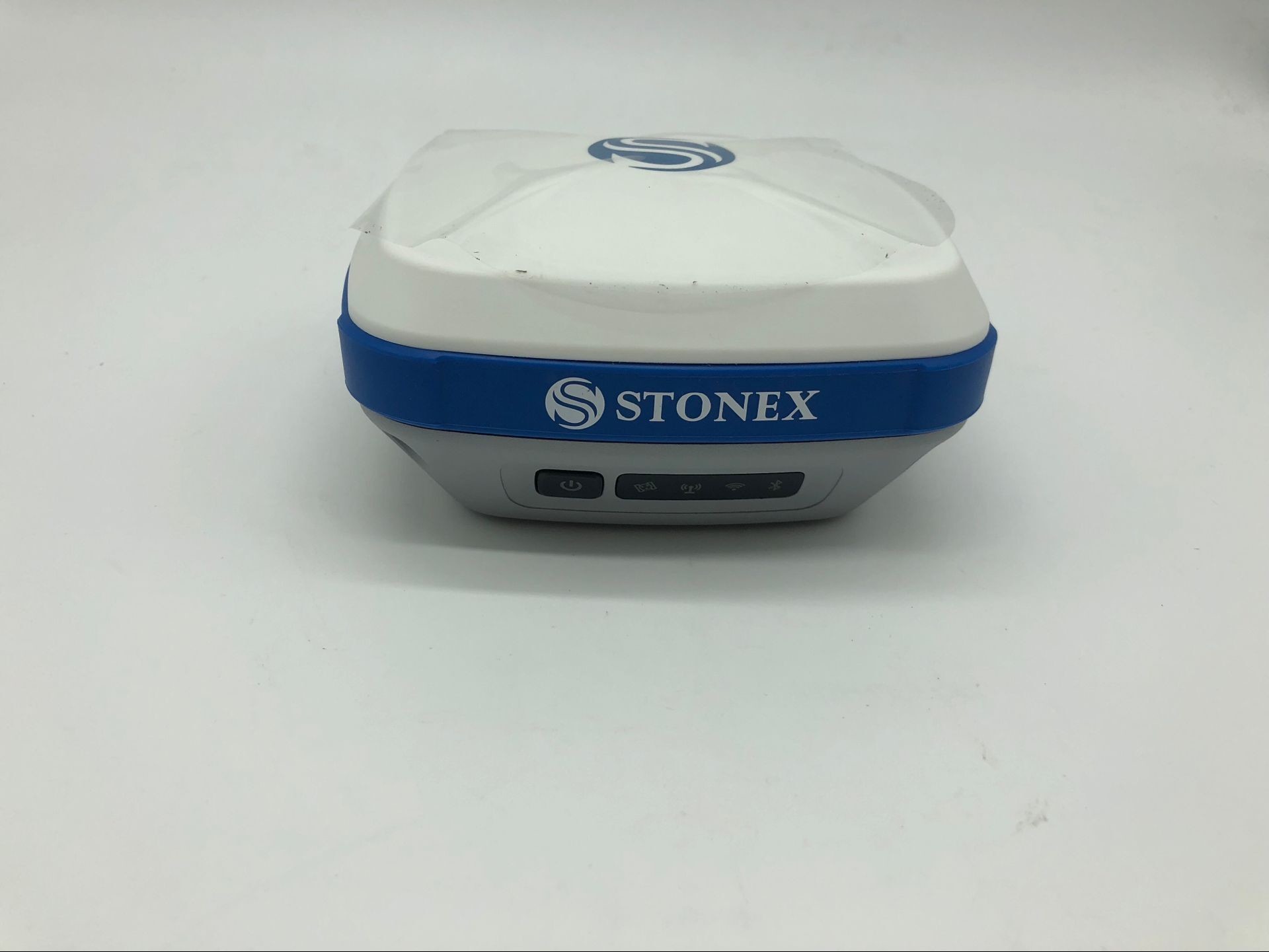

| Product Name: | RTK GNSS Receiver | Model Number: | S800 |
|---|---|---|---|
| Position Rate Reliabilityory: | 5 Hz, Optional Up To 20 Hz | Battery: | Rechargeable 7.2 V-6800 MAh |
| Charge Time: | Typically 4 Hours | Operating Temperature: | -40 °C To 65 °C |
| High Light: | trimble gnss receiver,dual frequency gnss receiver |
||
| Channels: | 555 |
| GPS: | L1C/A, L1C, L2P, L2C, L5 |
| GLONASS: | L1C/A, L2C, L2P, L3, L5 |
| BeiDou: | B1, B2, B3 |
| Galileo: | E1, E5 AltBOC, E5a, E5b, E6 |
| QZSS: | L1C/A, L1C, L2C, L5, L6 |
| SBAS: | L1, L5 |
| IRNSS: | L5 |
| Position Rate: | 5 Hz, optional up to 20 Hz |
| Signal Reacquisition: | < 1 sec |
| RTK Signal Initialization: | Typically < 10 s |
| Hot Start: | Typically < 15 s |
| Initialization Reliability: | > 99.9 % |
| Internal Memory: | 8 GB |
| Battery: | Rechargeable 7.2 V-6800 mAh Rechargeable 7.2 V-5200 mAh |
| Voltage: | 9 to 18 V DC external power input with over-voltage protection (5 pins Lemo) |
| Working Time: | 10 hours |
| Charge Time: | Typically 4 hours |
| Weight: | 1.2 Kg |
| Dimensions: | 146 mm x 146 mm x 76 mm |
| Operating Temperature: | -40 °C to 65 °C |
| Storage Temperature: | -40 °C to 80 °C |
| Waterproof/Dustproof: | IP67 |
| Shock Resistance: | Designed to endure to a 2m drop pole on concrete floor with no damage |
| Vibration: | Vibration resistant |
| Channels | 555 | |
| GPS |
|
|
| GLONASS | L1C/A, L2C, L2P, L3, L5 | |
| BeiDou | B1, B2, B3 | |
| Galileo | E1, E5 AltBOC, E5a, E5b, E6 | |
| QZSS | L1C/A, L1C, L2C, L5, L6 | |
| SBAS | L1, L5 | |
| IRNSS |
|
|
| Position Rate | 5 Hz, optional up to 20 Hz | |
| Signal Reacquisition | < 1 sec |
