| Place of Origin: | China |
|---|---|
| Brand Name: | Stonex |
| Certification: | CE |
| Model Number: | S9II |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 3 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 set per month |
| Product Name: | RTK GNSS Receiver | Position Rate: | 5 Hz |
|---|---|---|---|
| Dimensions: | 157 Mm X 76 Mm | Working Time: | Up To 12 Hours |
| Waterproof/Dustproof: | IP67 | Vibration: | Vibration Resistant |
| High Light: | trimble gnss receiver,dual frequency gnss receiver |
||

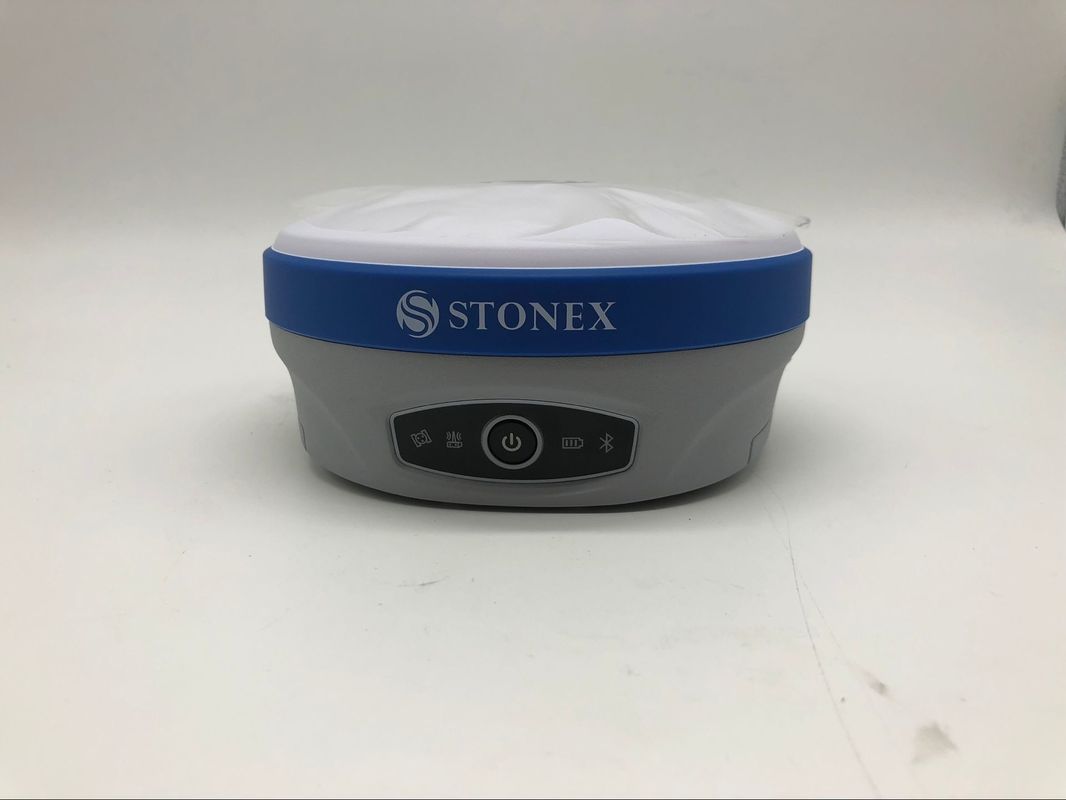

S900 and S900A
Stonex S900 with its 555 channels tracks all the present constellations and satellite signals: GPS, GLONASS, BEIDOU, GALILEO and QZSS. It has two, smart, hot-swappable batteries for uninterrupted workflow. It features a new high accuracy multi-constellation antenna, a powerful UHF transmitter and GSM 4G modem along with Bluetooth and WiFi. The firmware is upgradeable to be always updated with the latest features. The E-Bubble functionality makes the S900 very reliable in getting the measurements of difficult points. The points will be recorded automatically when the pole is levelled.
The Stonex S900Aup has all the same features and benefits of the S900 plus additional correction capabilities via Atlas, a new feature that enhances the performance and potential of field surveying. The S900Aup also has now 600 Channels that provide an excellent onboard real-time navigation solution with high accuracy.
aRTK & Atlas® Correction Service
The S900Aup is the new Stonex GNSS Receiver that can automatically select the best combination of GNSS signals with the possibility to receive Atlas® real-time corrections when the connection signals are interrupted or not available. aRTK is an innovative feature available in Stonex S900Aup GNSS Receiver that significantly mitigates the impact of land-based communication instability.
Thanks to aRTK the receiver is able to continue generating RTK positions in case the land-based RTK correction source becomes unavailable for a few minutes.
The Atlas® is a subscription for S900Aup aimed to achieve three different levels of accuracy depending on subscription type that you need. It’s perfect when working in difficult areas because it gives precise positioning centimetres around the world.
| Channels: | 555 |
| GPS: | L1 C/A, L1C, L2C, L2P, L5 |
| GLONASS: | L1 C/A, L2C, L2P, L3, L5 |
| BeiDou: | B1, B2, B3 |
| Galileo: | E1, E5a, E5b, E5 AltBOC, E6 |
| QZSS: | L1 C/A, L1C, L2C, L5, L6 |
| SBAS: | L1, L5 |
| IRNSS: | L5 |
| Position Rate: | 5 Hz |
| Signal Reacquisition: | < 1 sec |
| RTK Signal Initialization: | Typically < 10 s |
| Hot Start: | Typically < 15 s |
| Initialization Reliability: | > 99.9 % |
| Internal Memory: | 8 GB |
| Battery: | 2 rechargeable and replaceable intelligent lithium batteries 7.2 V – 3400 mAh |
| Voltage: | 9 to 22 V DC external power input with over-voltage protection (5 pins Lemo) |
| Working Time: | Up to 12 hours |
| Charge Time: | Typically 4 hours |
| Dimensions: | 157 mm x 76 mm |
| Weight: | 1.19 kg (one battery) 1.30 kg (two batteries) |
| Operating Temperature: | -40 °C to 65 °C |
| Storage Temperature: | -40 °C to 80 °C |
| Waterproof/Dustproof: | IP67 |
| Shock Resistance: | Designed to endure to a 2m drop pole on concrete floor with no damage |
| Vibration: | Vibration resistant |
