Detail Information

Product Name:

RTK GNSS Receiver

Channels:

220

Internal UHF Radio:

450~470MHz With 116 Channels

RTK Accuracy:

8mm+1ppm;15mm+1ppm

Highlight:

trimble gnss receiver

dual frequency gnss receiver

Product Description

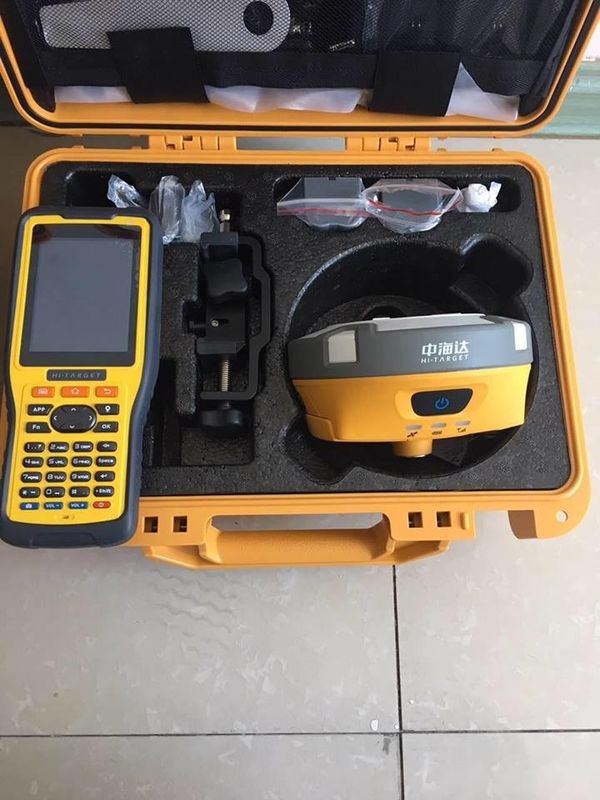

RTK GNSS Receiver High-Precision Hi-Target Rugged Design V90 Android GPS RTK

High-Precision Hi-Target Rugged Design V90 Android GPS RTK

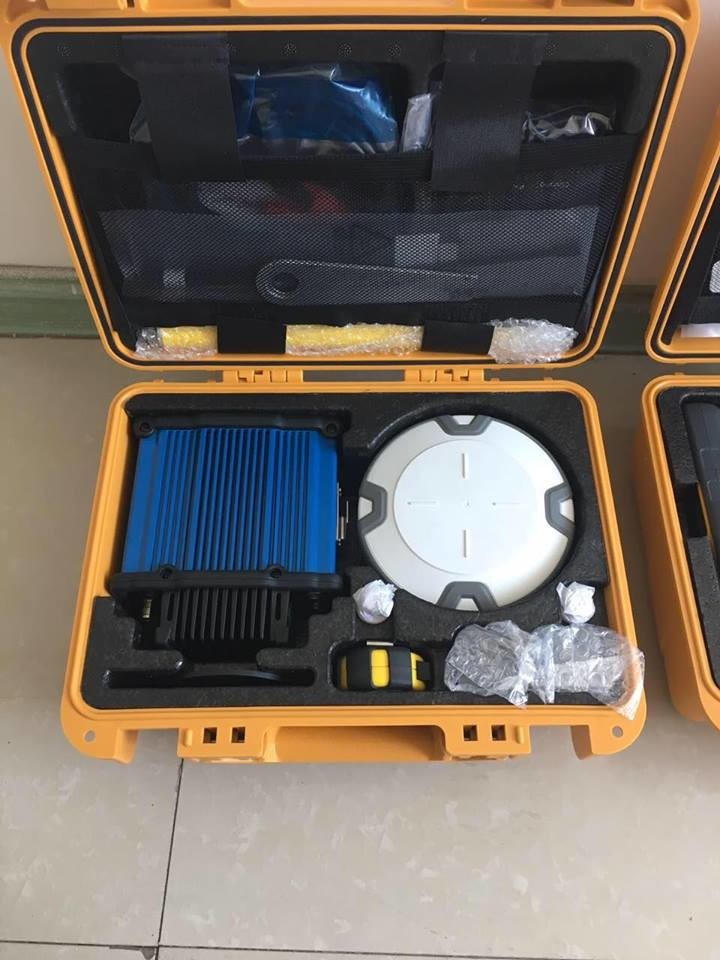

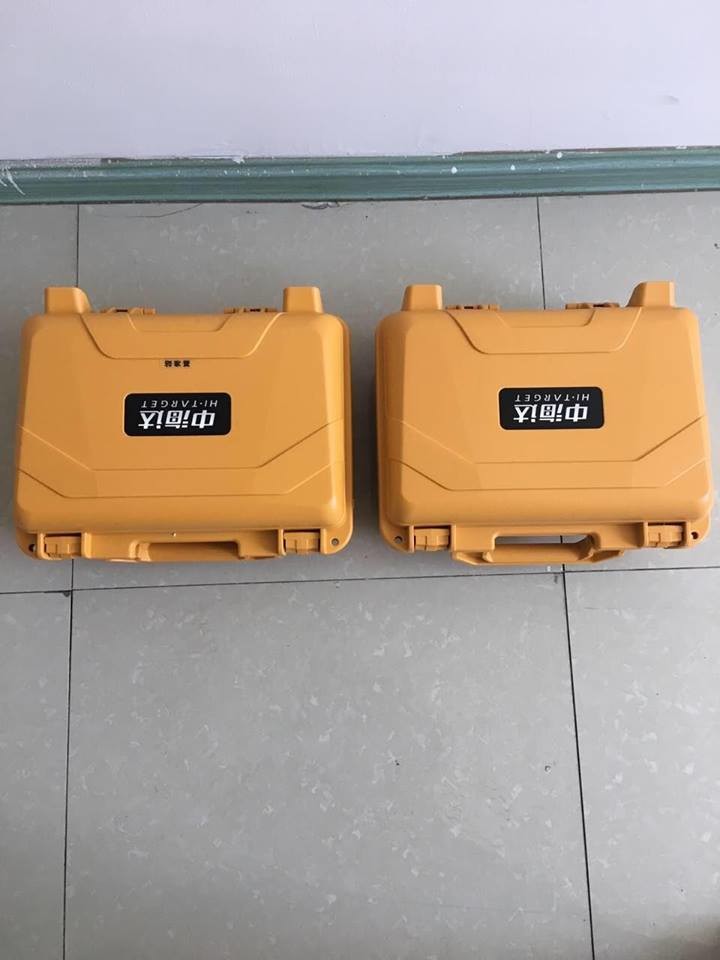

1 set packed in 3 cartons: 45*25*40cm (7kg)
45*25*40cm (7kg)
145*17*14cm(5kg)

Key features:

1) Advanced GNSS engines

2) Support GPS, GLONASS, BDS, GALLILEO

3) Tilt sensor and electronic bubble integrated

4) NFC and WiFi functionality

Detail advantage functions

1 Multi-constellation Tracking

1) 555 tracking channel(optional)

2) NGS approved full-wave GNSS antenna

3) Supports GPS,GlONASS,GALILEO,BDS,SBAS

4) Supports a wide range of satellite signals

5) A large receiving area designed for multipath mitigation

6) Air dielectric is light and stable

2 Smart Application

1) Offers tilt survey with a maximum tilt angle of 30 degrees

2) Supports electronic bubble

3) Intelligent voice assistance guides field operation.Voice can be DIY

4) Standard Rinex data and HI-TARGET raw data recorded simultaneously

3 Optional Transceiver UHF Radio

1) The transceiver UHF radio enables switchable working modes between base and rover

2) Three types of internal UHF radio provide different frequencies based on users requirements

The SATEL internal UHF radio is compatible with other radios

4 Multi-network Connection

1) Supports GPRS,GSM and WCDMA

2) Supports WIFI

5 Powerful Battery

1) Powered by high-capacity (5000mAh)Li-ion battery to ensure full day operation

6 Rugged Design

1) IP67 dustproof and waterproof

2) Able to survive 3-meter natural fall onto concrete

Model		V90 plus
System Configuration	Data storage	8GB Internal storage (Support up to 32GB external SD card)
	Data storage	Record GNS and RINEX format simultaneously
	Data Formats	1Hz positioning output, up to 50Hz
		CMR: CMR, CMR+, sCMRx input and output
		RTCM: RTCM 2.1, 2.2,2.3, 3.0, 3.1, 3.2 input and output
		Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS
		Navigation outputs binary: GSOF
Satellite Signals Tracked Simultaneously	Channels	220
	BDS	B1,B2
	GPS	Simultaneous L1C/A, L2C, L2E, L5
	GLONASS	Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P
	SBAS	Simultaneous L1 C/A, L5
	GALILEO	Simultaneous L1 BOC, E5A, E5B, E5AltBOC
Static and Fast Static GNSS Surveying	Horizontal	2.5mm+0.5ppm RMS
Static and Fast Static GNSS Surveying	Vertical	5mm+0.5ppm RMS
Post Processing Kinematic (PPK / Stop & Go) GNSS Surveying	Horizontal	1cm+1ppm RMS
	Vertical	2.5cm+1ppm RMS
	Initialization time	Typically 10 minutes for base while 5minutes for rover
	Initialization reliability	Typically > 99.9%
Network RTK	Horizontal	8mm+1ppm RMS
	Vertical	15mm+0.5ppm RMS
	Initialization time	Typically < 8seconds
	Initialization reliability	Typically > 99.9%
Code Differential GNSS Positioning	Horizontal	25cm+1ppm RMS
	Vertical	50cm+1ppm RMS
	SBAS	0.50m Horizontal, 0.85m Vertical
Power and Battery	Power	6V to 28V DC external power input,Power consumption ≤3.5W
	Internal battery	Rechargeable, removable 7.4V, 5000mAh Lithium-ion battery
	Internal battery life	Static 12hours
		RTK rover (UHF/GPRS/3G) 10 hours
		RTK base more than 8 hours
I/O Interface	1 xBluetooth, NFC ,1 x standard USB2.0 port ,1 x TNC antenna connector,1 x RS232 serial port ,1 x DC power input (5-pin) ,1 x MicroSD card port
Physical	Dimensions (W x H)	153mm x 83mm (6.02inch x 3.27inch)
	Weight(without internal battery)	950g (2.09lb)
	Operating temperature	-40ºC to +65ºC (-40ºF to +149ºF)
	Storage temperature	-55ºC to +85ºC (-67ºF to +185ºF)
	Humidity	100%, considering
	Water/dustproof	IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).
	Shock and vibration	Designed to survive a 3m(9.84ft) natural fall onto concrete.

Place of Origin:	China
Brand Name:	Hi-target
Certification:	CE
Model Number:	V90

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Carton
Delivery Time:	3 days
Payment Terms:	negotiable
Supply Ability:	1000 set per month
