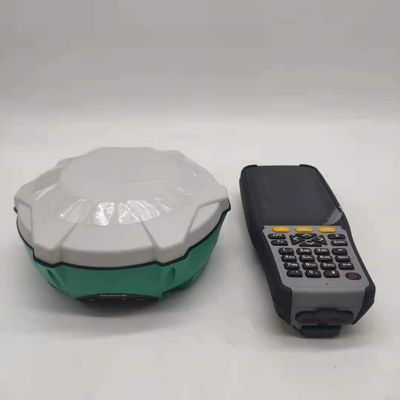

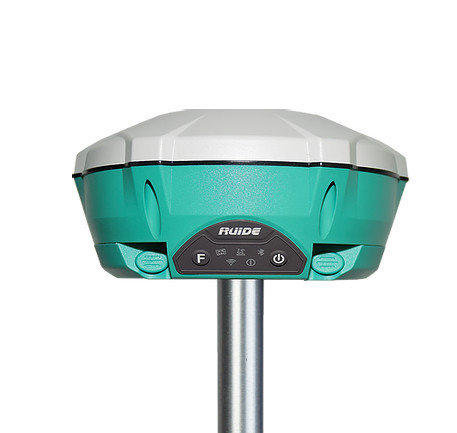

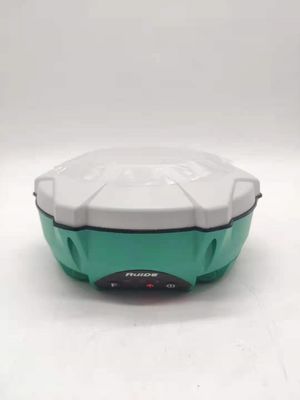

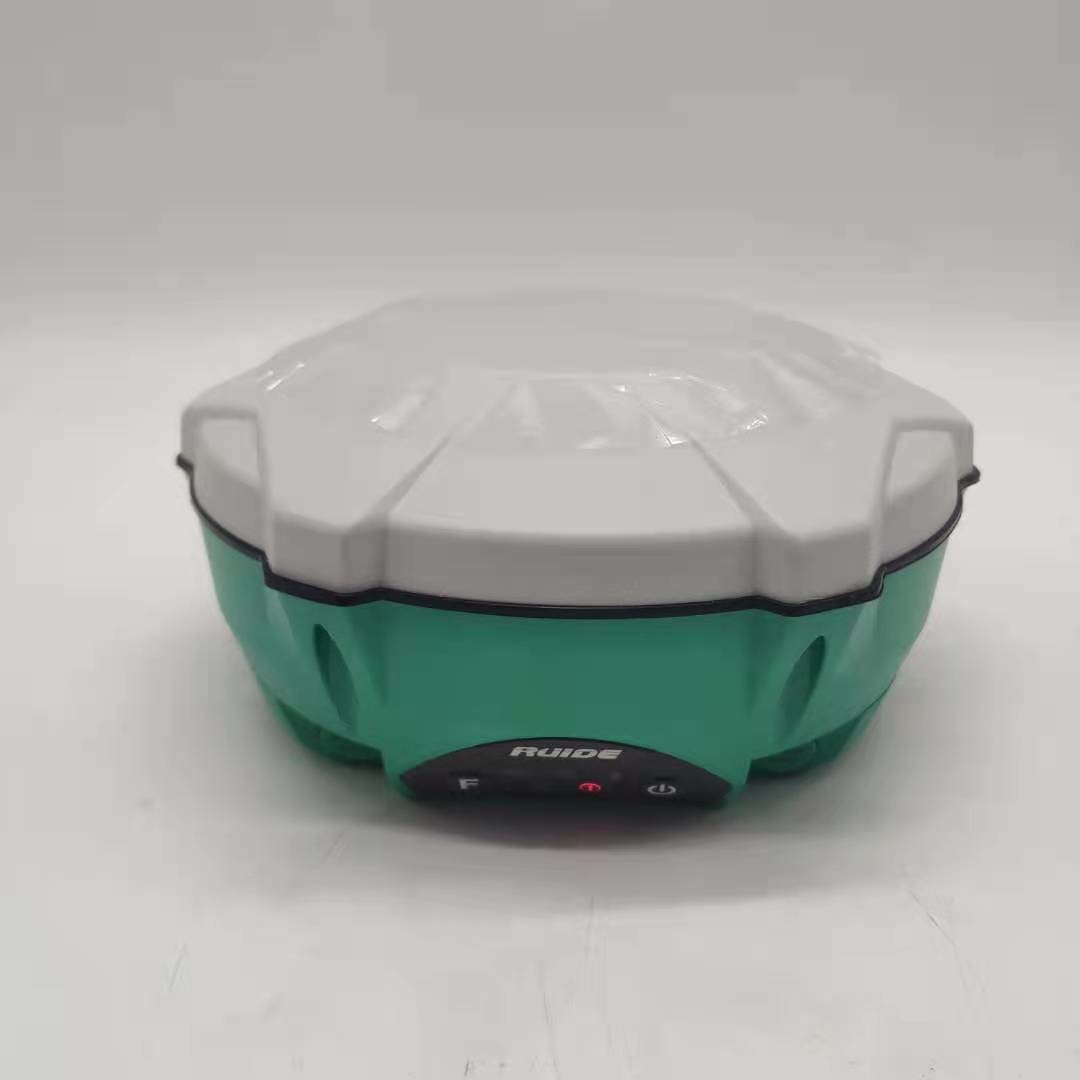

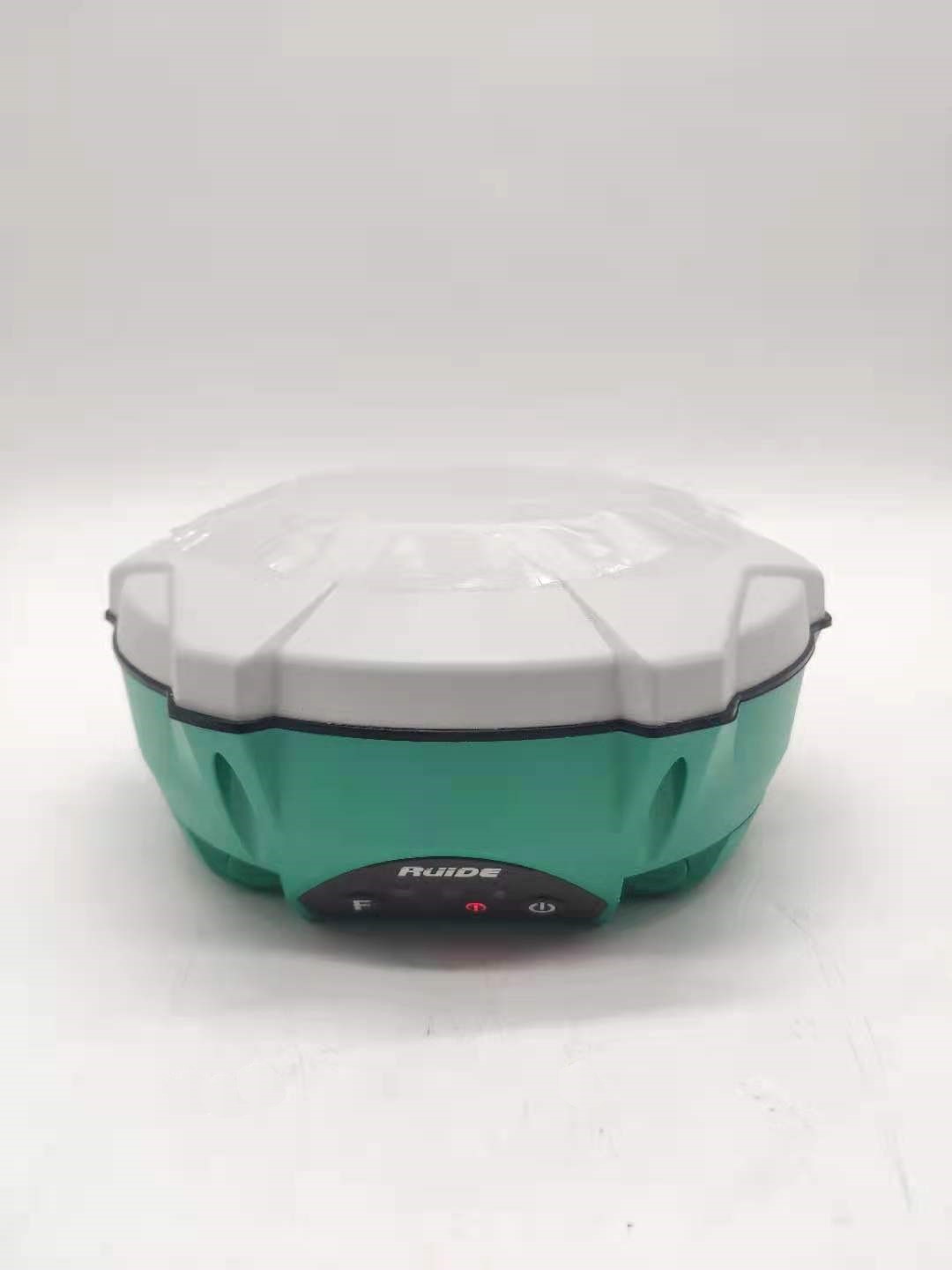

Ruide R80i GPS survey instrument Bluetooth 692 Channels RTK GNSS Receiver SSD 8GB Storage

Basic Information
Place of Origin: China
Brand Name: RUIDE
Certification: CE
Model Number: R90i
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: With Standard Epxort Packing Ways
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs per year
Detail Information
Channels: 692 Accuracy: <2cm Within 30° Tilt <5cm Within 60° Tilt
Satellite System: GPS+GLONASS+BeiDou+Galileo+SBAS Supports Protocols: 410-470MHz
Storage: SSD 8GB And External USB Pen Drive Bluetooth: Bluetooth2.1 +EDR And 4.0
WiFi: 802.11b/g/n
High Light:

692 Channels RTK GNSS Receiver

,

Bluetooth RTK GNSS Receiver

,

Bluetooth rtk gps unit


Product Description

Product Description

The new GNSS positioning system R90i Plus combines user-friendly, ergonomic design with high-end reliability under harsh conditions.

With the newly-equipped Rimu module, plus the powerful GNSS mainboard, integrated Linux OS and multi-datalink choices, it helps you to complete your surveying tasks with the highestspeed and accuracy. Worry-free from the harsh environment and no longer watch and level the bubble! Itsdual hot-swappable batteries, and a highest industrial protectionstandard enable you to work freely and into it!


R90i is equipped with a WiFi module, which enables our computers and smartphones to connect to the receiver via hotspot. That means a lot, because we can log on RUIDE Web Server to monitor the working status and configure almost all settings of the receiver, anytime, anywhere, wirelessly.



Specifications



Pacific Peak BD970 board, has 692 channels
Global Positioning System L1C/A, L1C, L2C, L2E, L5
Glonus L1C/A, L1P, L2C/A, L2P, L3
Galileo Giove-A, Jove-B, E1, E5A, E5B
Bedou B1, B2
QZS, Vass, Mas, Egnos, Gagan, Bath.
Free Glonus, Galileo, and Bedu have no time limit and no code to activate them.
Phase fuzzy resolution algorithm, fixed solution time < 10 seconds.
Measurement rate 1Hz-50Hz.
RTK accuracy: 8 mm + 1ppm (level), 15 mm + 1ppm (elevation).
The RIMU tilt sensor has an operating range of up to 60° and an accuracy of <2 cm (up to 60°), <5 cm (up to 60°).
Wireless wireless networking technology with a built-in web server.
Able to use the receiver as a rover, but also as a base, without any modifications to the hardware.
Multiple communication options: internal UHF modems, but also internal GSM/GPRS.
Two rechargeable lithium-ion batteries are enough for a full day's work.
8GB of internal storage for collecting static measurement data.
Compatibility with VRS, FKP, and MAC networks such as HEPOS.
Weighs only 1330GR (with batteries).
Fully waterproof and dustproof device (IP67).It endured a drop from a height of 2 meters.
Bluetooth wireless communication with external recording.
The built-in LED indicator constantly informs the user of the status of Bluetooth, modem, satellite, WiFi and power.
Communication port: 1X RS232, 1XUSB, 1X Bluetooth.

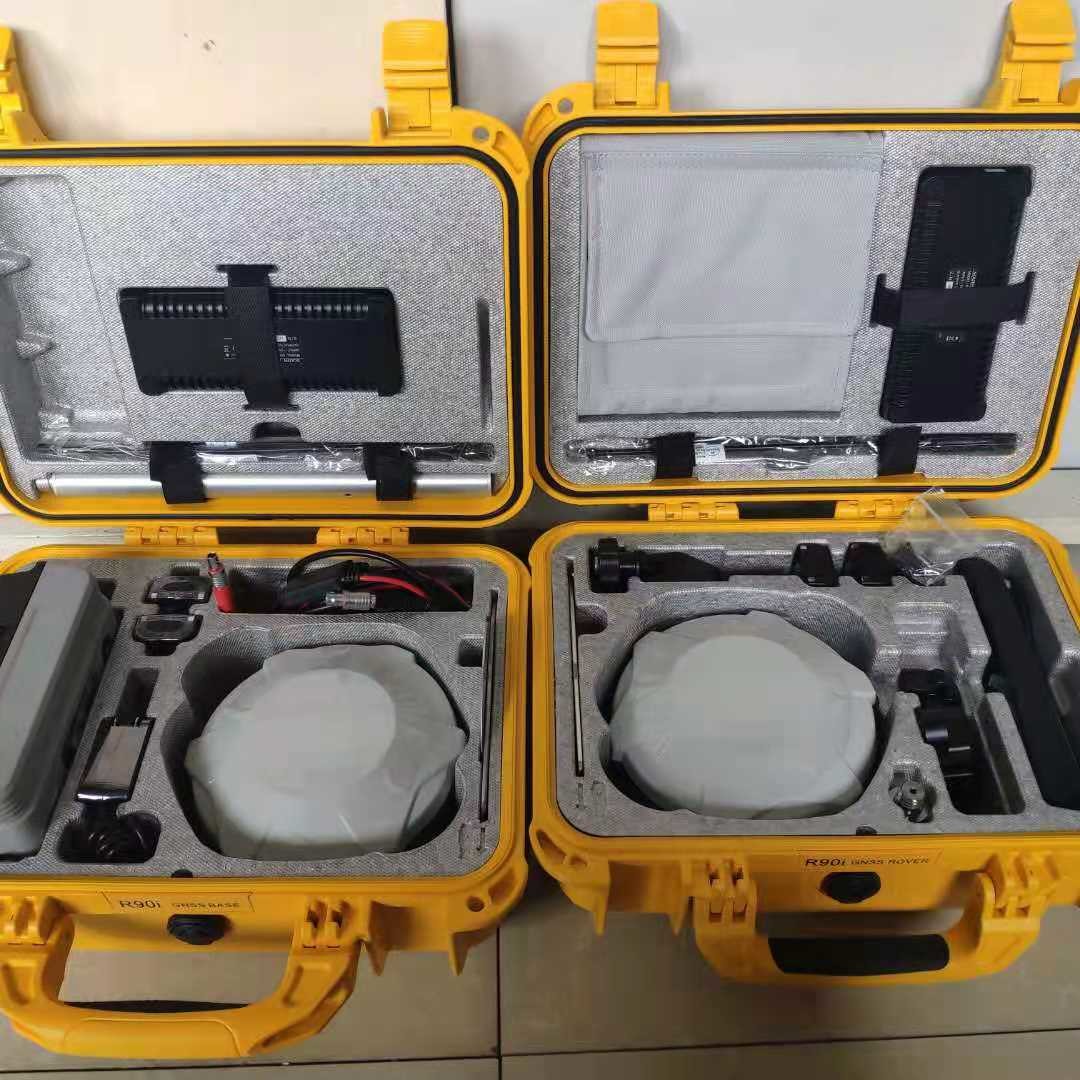

Packaging & Shipping

PACKING_

Our Services

1. Warranty: 12 months warranty is offered for survey equipment. 6 months warranty offered for survey accessory. Warranty comes in effective from the day your receive good.
2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be charged by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case.
3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us
4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site. We offer this service to bulk order while customer has requirement.
5. Technical support is offered 24/365.

Company Information

Shanghai Galxy International Trade company, Ltd. combining with developing, researching and producing. Our company is located in Pudong Developing Zone, and has two subsidiary companies: Shanghai Galaxy International Trade Co., Ltd. and Mato Opto-electrical High-tech Company. Our company has researching center and factory in Changzhou.

Our main products are as following: total station, electronic theodolite, automatic level, laser level, rotation laser, GPS, distance laser sensor and accessories, such as tripod, prism, pole, staff and USB cable for total station. Our company designs software for many domestic and oversea factories, for example, Boif, TJOP, Stanley, and Cst-Berger. We have powerful capacity in technical research, and the products we designed have advanced technology and steady performance. The non-prism total station and the absolute coding measure instrument we developed and produced have very competitive points in the measure instrument market.

We expect that we could cooperate with more business partners from all over the world. In addition, we can do OEM service for companies or dealers that want to find better producers in China.

Our goal is to produce the best surveying instruments in the world.

Our target is to globalize the market, internationalize the quality and maximize the profit!
