Ruide R93I RTK GNSS Receiver GPS Rugged Small Light Dual Frequency

Basic Information
Place of Origin: China
Brand Name: Ruide
Certification: CE
Model Number: R93I
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: suitcase and carton
Delivery Time: 5-10day
Payment Terms: T/T, Western Union
Supply Ability: 10pcs/day
Detail Information
Channels: 965 Channels Model: Ruide R93I
BDS: B1,B2,B3 GPS: L1,L2C,L2P,L5
GLONASS: L1 C/A, L1P, L2C/A, L2P Galileo: E1C,E5A,E5B
Initialization Time: <10s Horizontal: 0.25 M + 1 Ppm RMS
Operating System: Linux Humidity: Resistance To 95% Condensation
Waterproof: 1m Immersion,IP68 External Radio: 5W/25W/35w
High Light:

Dual Frequency GPS GNSS Receiver

,

Rugged RTK GPS Receiver

,

Light RTK Receiver


Product Description

Product Description

Ruide Brand GPS Rugged Small Light Design Dual Frequency Ruide R93I RTK GNSS Receiver :



Technical parameter
Items Specification
GNSS Signal Tracking 965 Channels
BDS:B1,B2,B3
GPS: L1,L2C,L2P,L5
GLONASS: L1 C/A, L1P, L2C/A, L2P
Galileo: E1C,E5A,E5B
SBAS,QZSS: support
L-Band :support
GNSS Features Positioning output rate 1Hz~20Hz
Initialization time :<10s
Initialization reliability : >99.99%
All-Constellation receiving Technology that supports all existing and planned GNSS constellation signals
Positioning Precision Code Differential GNSS Positioning Horizontal:0.25 m + 1 ppm RMS
Vertical:0.50 m + 1 ppm RMS
SBAS positioning accuracy: typically<5m 3DRMS
Static GNSS Surveying Horizontal:(2.5mm+0.510-6D)
Vertical:(5mm+0.510-6D)
RTK Surveying Horizontal:(8mm+110-6D)
Vertical:(15mm+110-6D)
Operating system / user interaction Operating system Linux
buttons Single button operation, convenient and quick
indicator Four indicator lights
Web interaction Built-in WebUI management background, support WiFi and USB mode access WebUI page, real-time monitoring of receiver status, set any configuration of the receiver.
voice Intelligent voice technology, support for Chinese, English, Korean, Russian, Portuguese, Spanish, Turkish; support for voice customization
Data cloud service Support register online, remote upgrade and etc.
Electrical Power 9-28V wide voltage DC design with overvoltage protection
Battery High capacity built-in battery 6800mAh 7.4V
Power solution Routine operations meet the endurance of more than 8 hours
(Provide 7*24h continuous working power solution)

Communications I/O Port 5 PIN LEMO External power interface +RS232
7 PIN LEMO with USB(OTG)
Radio, Network Antenna Interface (shared)
Radio modem Built-in high performance radio,
operating frequency 410-470MHz,
External radio: 5W/25W/35w
protocol: TrimTalk450S,TrimMark3, SOUTH, CHC,SATEL,HI-TARGET
Blue tooth BLE blue tooth 4.0;blue tooth 2.1 + EDR standard
NFCwireless communication Using NFC wireless communication technology, the controller can be automatically paired with the receiver.( controller needs have NFC wireless communication module)
WIFI standard 802.11b/g/n
WIFI hot spot WIFI hot spot function: intelligent terminal can connect to the receiver to do personalization custom;
Data transmission supported between the receiver and the controller
WIFI data chaining Receiver can access WIFI, to broadcast or receive differential data via WIFI
Data storage / transmission Data storage 8G solid state memory, supporting 32GB external extension, Automatic cyclic storage,
Supporting external USB memory for data storage;
transmission One key Smart copy directly exports host static data via external USB memory; plug and play USB for data transfer; FTP download, HTTP download.
data format Static: SOUTH, Rinex2.01, Rinex3.02 and etc.
Differential data format: RTCM 2.1,RTCM 2.3,RTCM 3.0,RTCM 3.1,RTCM 3.2 Input and output;
GPS output data format: NMEA 0183, PJK plane coordinates, binary code,
IMU/Sensor Electron bubble Built-in sensors, data collector software can display electronic bubbles, real-time check the alignment of the surveying pole leveling situation
Shake and shake tilt measurement (optional) The built-in IMU sensor supports the tilt measurement function of shaking and shaking, and automatically corrects the coordinates according to the tilt direction and angle of the centering rod.
temperature sensor Built-in temperature sensor, real-time monitoring and adjusting host temperature
Physical Size 135*135*84.75mm
Weight 0.97KG with battery
Material aluminium magnesium alloy
Temperature Operating:0 to +65
Storage:0C to +80 C
Humidity Resistance to 95% condensation
Waterproof/ Dustproof Waterproof:1m immersion,IP68
Dustproof: Completely prevent dust from entering,IP68
shockproof Resistance to 2-meter drop with rod

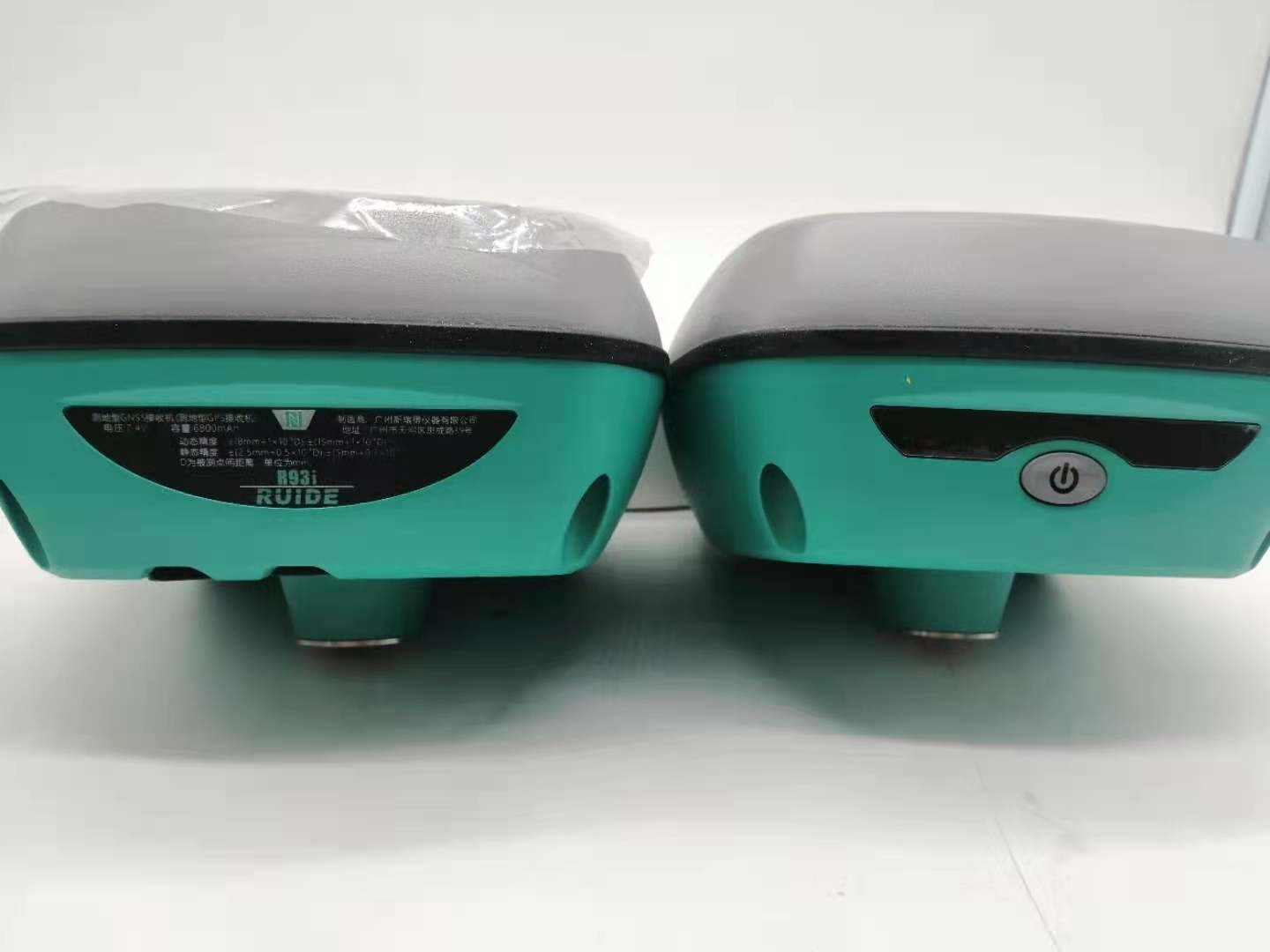

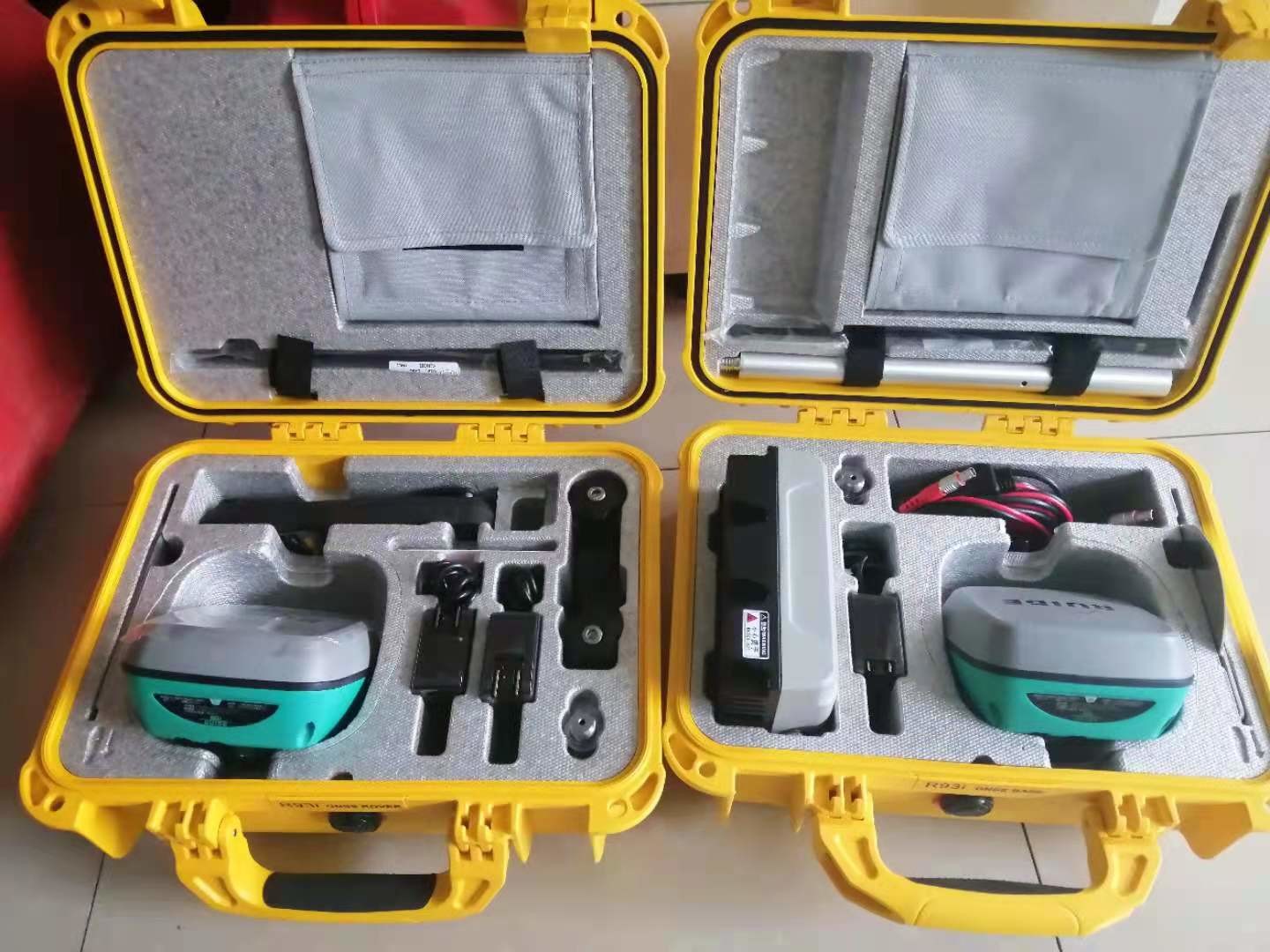

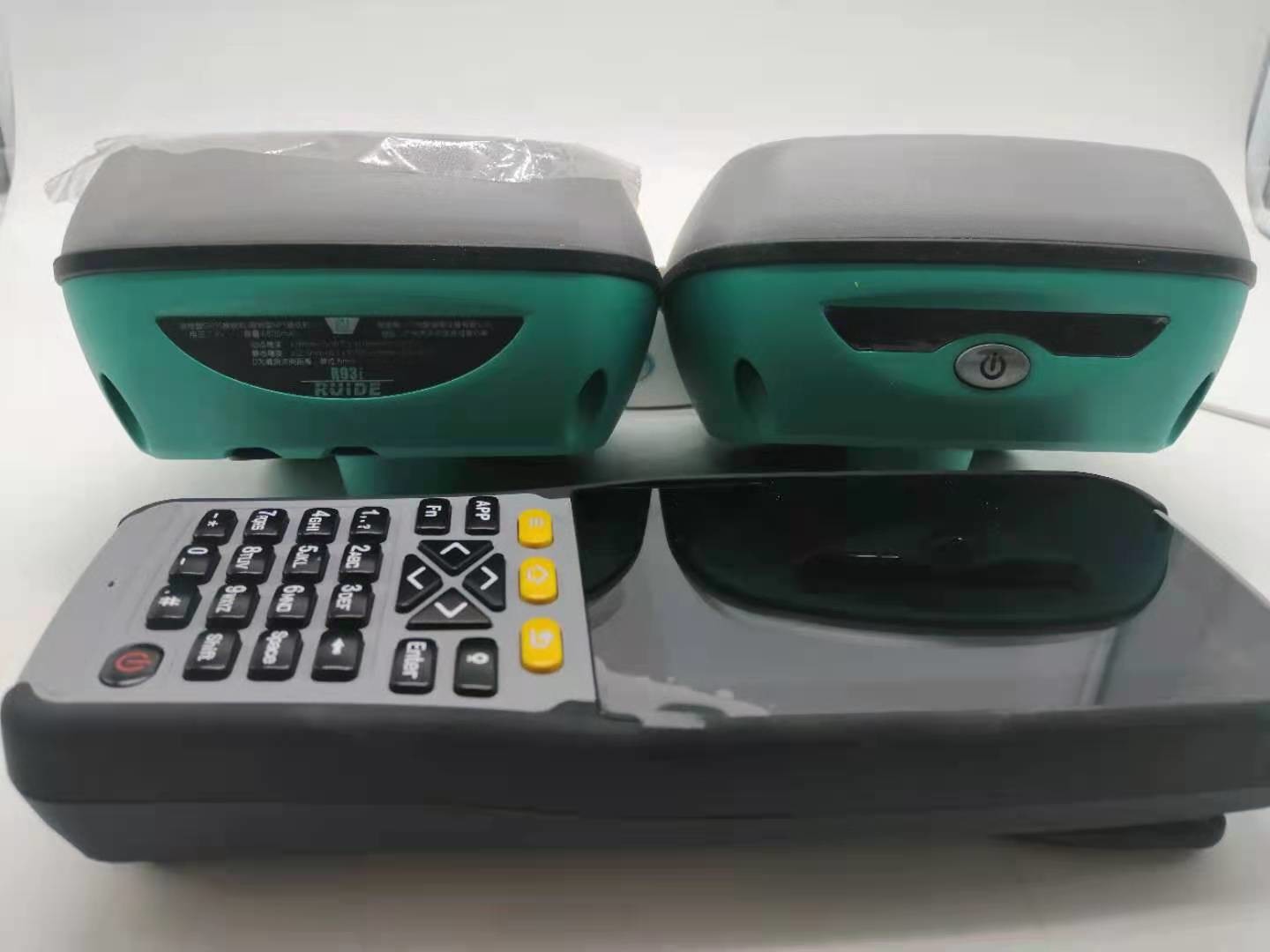

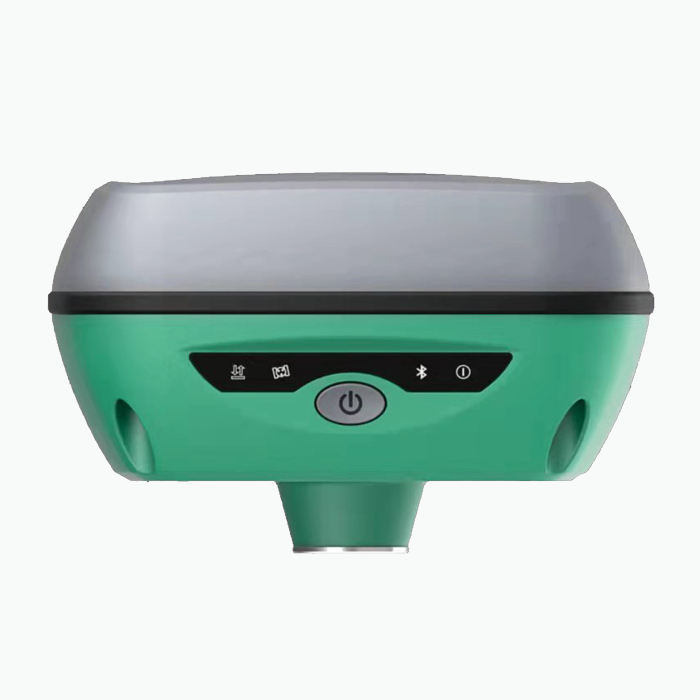

Ruide R93I RTK GNSS Receiver GPS Rugged Small Light Dual Frequency 0Ruide R93I RTK GNSS Receiver GPS Rugged Small Light Dual Frequency 1Ruide R93I RTK GNSS Receiver GPS Rugged Small Light Dual Frequency 2Ruide R93I RTK GNSS Receiver GPS Rugged Small Light Dual Frequency 3
