Channel: | 336 Channels | Positioning Output Rate: | 1Hz~50Hz |
---|---|---|---|
Initialization Time: | < 10s | RTK Initialization Time: | 2 ~ 8s |
Humidity: | 100% Non-condensing | Waterproof/Dustproof: | IP68 Standard |
GPS: | L1C/A, L1C, L2C, L2E, L5 | GLONASS: | L1C/A, L1P, L2C/A, L2P, L3 |
BDS: | B1, B2, B3 | IMU Tilt Angle: | 0°~60° |
High Light: | IP68 GPS Multi Channel Receiver,IMU GPS RTK Receiver,336 Channels RTK Receiver |

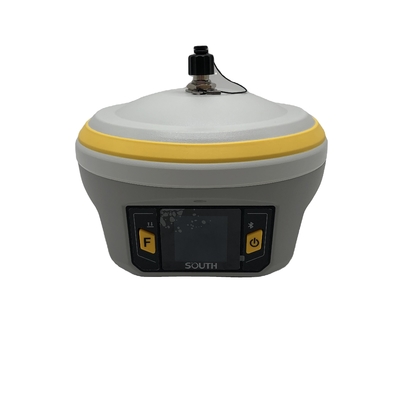

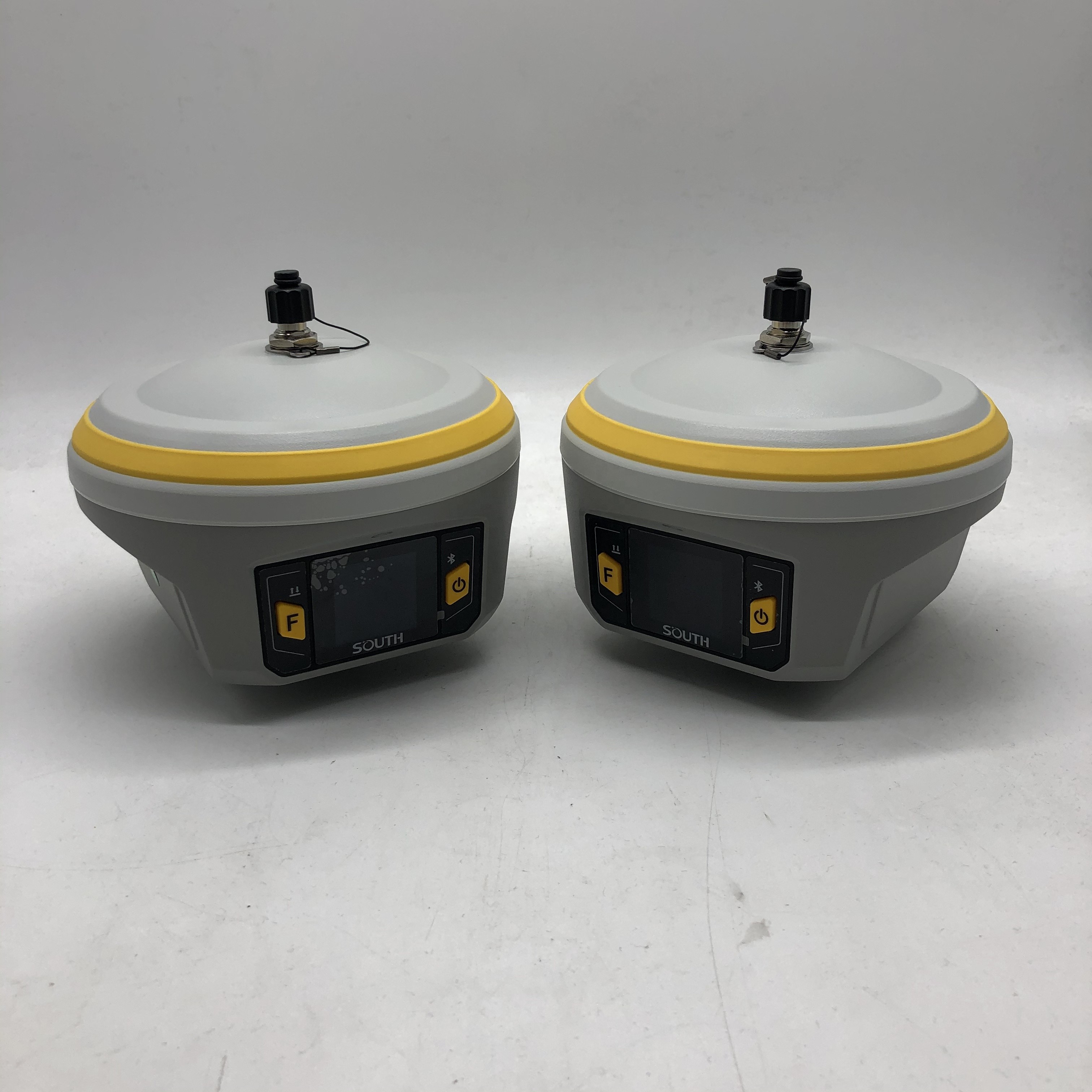

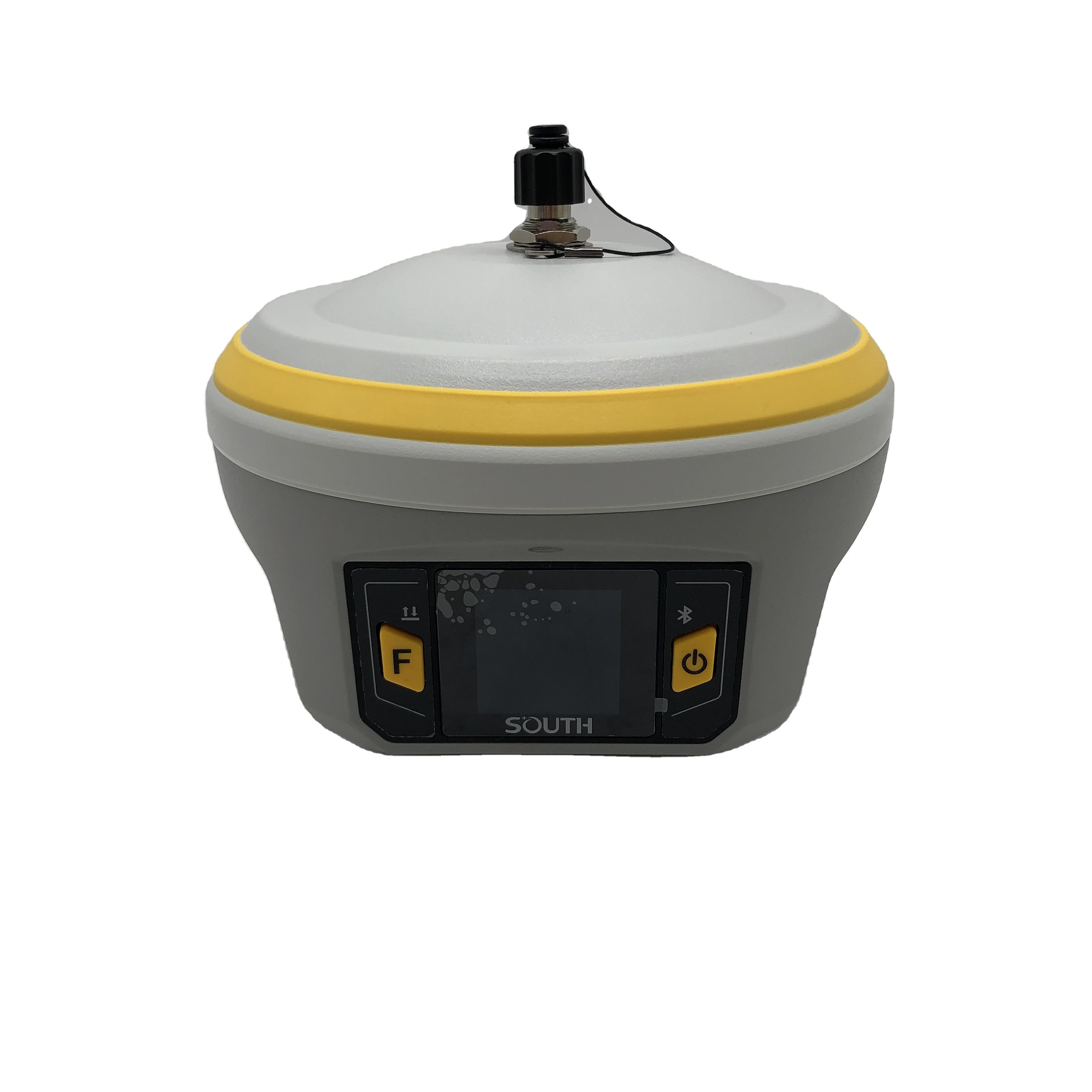

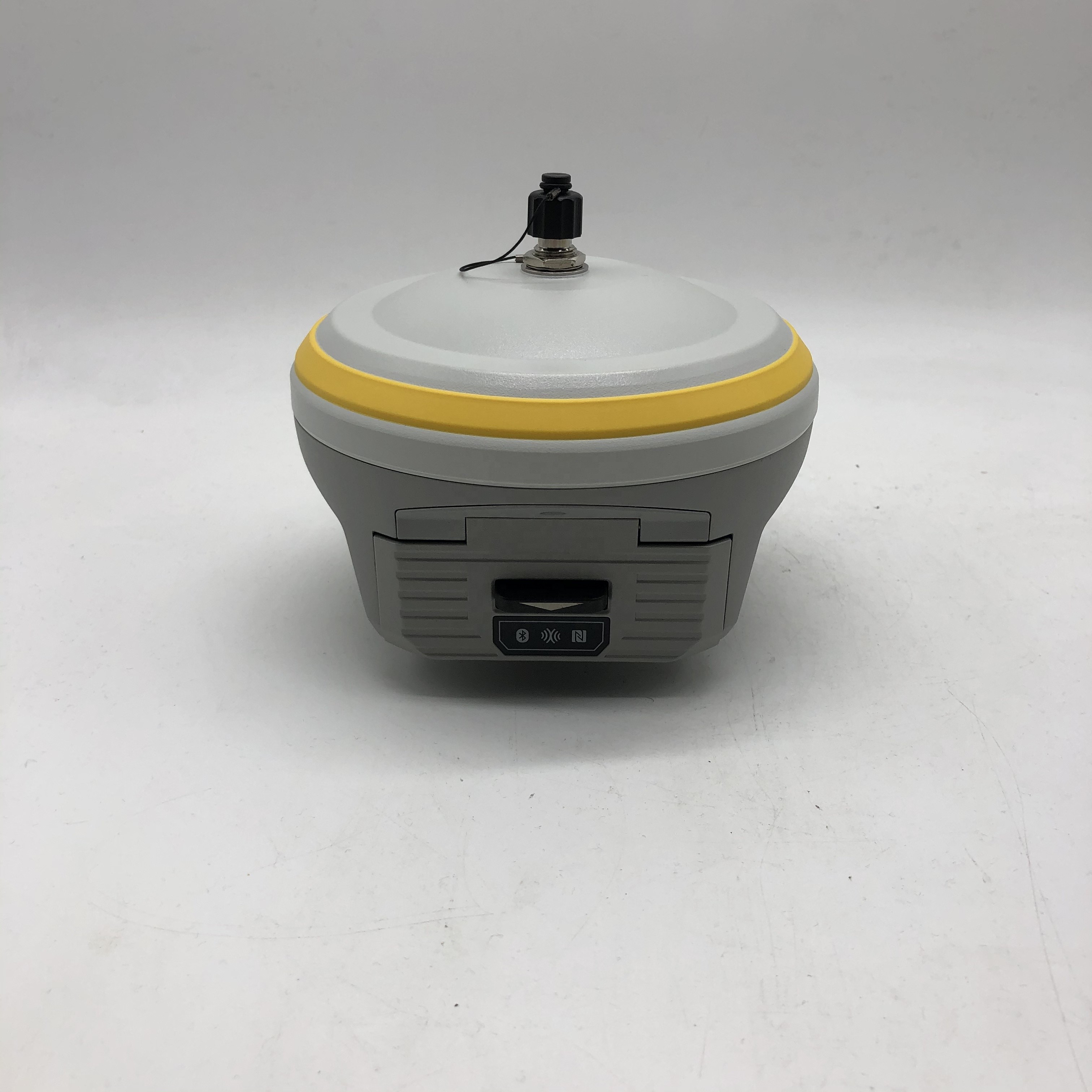

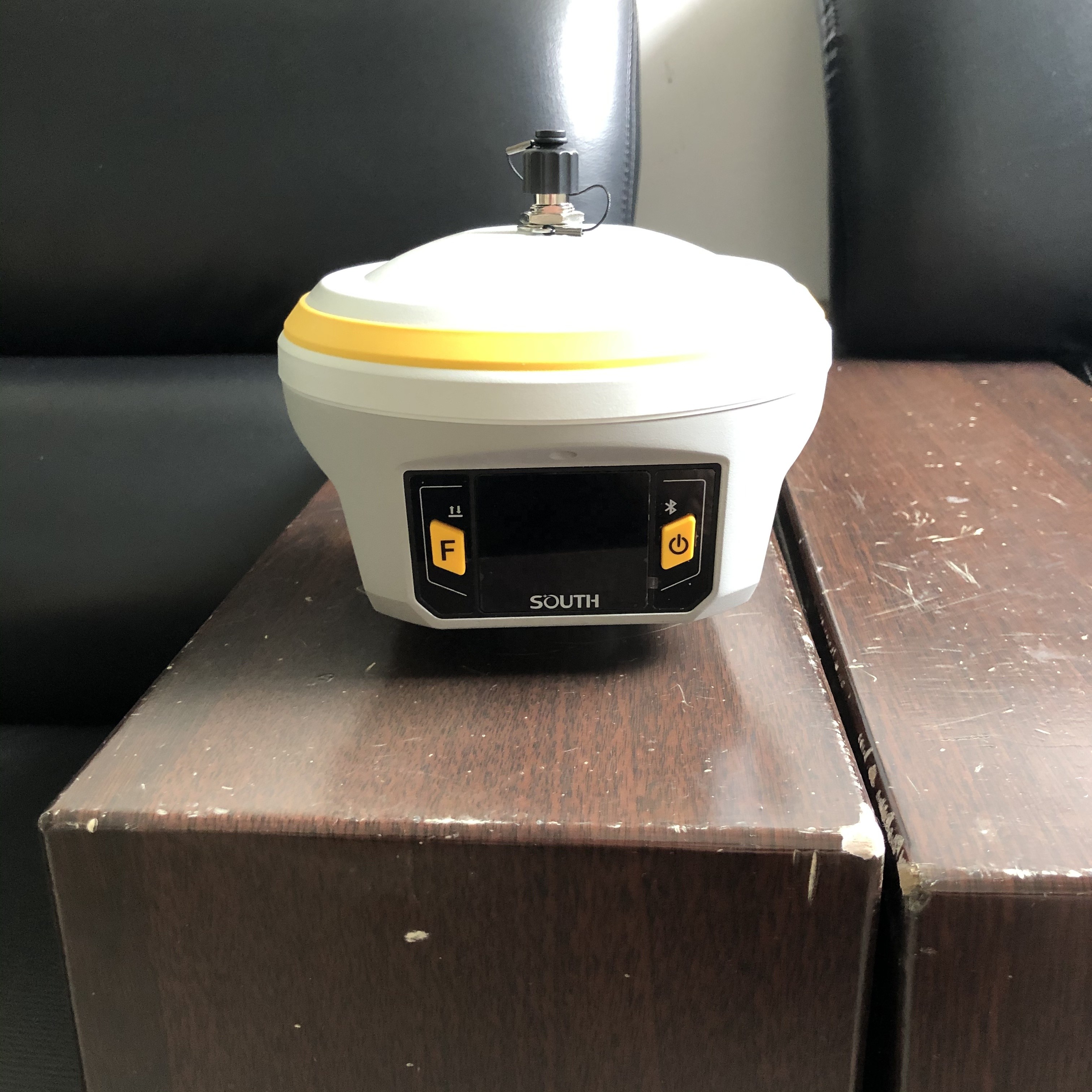

South IP68 standard GPS South INNO7 GNSS with IMU receiver 336 Channels RTK.
NSS Features | Channels | 336 |
GPS | L1C/A, L1C, L2C, L2E, L5 | |
GLONASS | L1C/A, L1P, L2C/A, L2P, L3 | |
BDS | B1, B2, B3 | |
GALILEOS | E1, E5A, E5B, E5AltBOC, E6 | |
SBAS | L1C/A, L5 (Just for the satellites supporting L5) | |
IRNSS | L5 | |
QZSS | L1C/A, L1 SAIF, L2C, L5, LEX | |
MSS L-Band | Trimble RTX[1] | |
Positioning output rate | 1Hz~50Hz | |
Initialization time | < 10s | |
Initialization reliability | >99.99% | |
Positioning Precision | Code differential GNSS positioning | Horizontal: 0.25 m + 1 ppm RMS Vertical: 0.50 m + 1 ppm RMS |
GNSS static | Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMS |
|
Real-time kinematic (Baseline<30km) |
Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMS |
|
SLink (RTX)[2] | Horizontal: 4-10 cm Vertical: 8-20 cm |
|
RTK XTRa (xFill)[3] | Horizontal: 5 + 10 mm/min RMS Vertical: 5 + 20 mm/min RMS |
|
SBAS positioning | Typically<5m 3DRMS | |
RTK initialization time | 2~8s | |
IMU tilt compensation | Additional horizontal pole tip uncertainty typically less than 8mm + 0.6 mm/° tilt down to 30° | |
IMU tilt angle | 0°~60° | |
Hardware Performance | Dimension | 15.3cm(φ)×10.6cm(H) |
Weight | 1.2kg (battery included) | |
Material | Magnesium aluminum alloy shell | |
Operating temperature | -25℃~+65℃ | |
Storage temperature | -35℃~+80℃ | |
Humidity | 100% Non-condensing | |
Waterproof/Dustproof | IP68 standard, protected from long time immersion to depth of 1m IP68 standard, fully protected against blowing dust | |
Shock/Vibration | Withstand 2 meters pole drop onto the cement ground naturally | |
Power consumption | 2W | |
Power supply | 6-28V DC, overvoltage protection | |
Battery | 7.4 V 3400mAh rechargeable, removable Lithium-ion battery | |
Battery life | Single battery: 16h (static mode) 10h (internal UHF base mode) 12h (rover mode) |
|
Communications | I/O Port | 5PIN LEMO external power port + Rs232 7PIN LEMO +external USB(OTG)+Ethernet 1 UHF antenna interface 1 GPRS antenna interface (internal and external antenna switchable) SIM card slot (standard) |
Internal UHF | Radio receiver and transmitter, 1W/2W/3W switchable | |
Frequency range | 410-470MHz | |
Communication protocol | Farlink, Trimtalk450s, SOUTH, SOUTH+,SOUTHx, HUACE, Hi-target, Satel | |
Communication range | Typically 15km with Farlink protocol | |
Cellular mobile network | Advanced 5G network communication module, downward compatible with 4G/3G | |
Bluetooth | BLEBluetooth 4.0 standard, Bluetooth 2.1+EDR | |
NFC Communication | Realizing close range (shorter than 10cm) automatic pair between receiver and controller(controller requires NFC wireless communication module else) | |
WIFI | Modem | 802.11 b/g standard |
WIFI hotspot | Receiver broadcasts its hotspot form web UI accessing with any mobile terminals | |
WIFI datalink | Receiver can transmit and receive correction data stream via WiFi datalink | |
Data Storage/Transmission | Storage | 64GB SSD internal storage Automatic cycle storage (The earliest data files will be removed automatically while the memory is not enough) Support external USB storage The customizable sample interval is up to 50Hz |
Data Transmission | Plug and play mode of USB data transmission Supports FTP/HTTP data download |
|
Data Format | Differential data format: CMR+, SCMRx, RTCM 2.1,RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2 GPS output data format: NMEA 0183, PJK plane coordinate, Binary code, Trimble GSOF Network model support: VRS, FKP, MAC, fully support NTRIP protocol |
|
Sensors | Electronic Bubble | Controller software can display electronic bubble, checking leveling status of the carbon pole in real-time |
IMU | Built-in IMU module, calibration-free and immue to magnetic interference | |
Thermometer | Built-in thermometer sensor, adopting intelligent temperature control technology, monitoring and adjusting the receiver temperature | |
User Interaction | Buttons | Linux |
Buttons | 2-button and visual operation interface | |
Indicators | 2 LED indicators, data interaction indicator and Bluetooth indicator | |
LCD | 1.54-inch HD color LCD touch screen with resolution 240*240 | |
Web interaction | With the access of the internal web interface management via WiFi or USB connection, users are able to monitor the receiver status and change the configurations freely | |
Voice guidance | The intelligent voice technology provides status and operation voice guidance, supports Chinese/English/Korean/Spanish/Portuguese/Russian/Turkish | |
Secondary development | Provides secondary development package, and opens the OpenSIC observation data format and interaction interface definition | |
Cloud service | The powerful cloud platform provides online services like remote manage, firmware update, online register and etc |
1. Warranty: 12 months warranty is offered for survey equipment. 6 months warranty offered for survey accessory. Warranty comes in effective from the day your receive good.
2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be charged by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case.
3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us
4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site. We offer this service to bulk order while customer has requirement.
5. Technical support is offered 24/365.
