64GB Support Hot Plug GPS 256M Memory Capacity RTK KQ GEO M8 GNSS Receiver

Basic Information
Place of Origin: China
Brand Name: KQ GEO
Certification: CE
Model Number: M8
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: suitcase and carton
Delivery Time: 5-10day
Payment Terms: T/T, Western Union
Supply Ability: 10pcs/day
Detail Information
Channels: 220 Channels Processor: 454MHz Industrial Level Processor
Memory Capacity: 256M Byte DDR2 SDRAM Saving Capacity: 2G Byte NAND Flash
Power Supply: Support 9~36V DC Battery As Power Supply; Support 220V AC As Power Supply Battery: Dual Power Supply + Assistant Battery Design (6800mAh×2+650mAh), The Main Battery Supports Hot Plug, Changing Battery Without Powering Off
Application Function: Speaker For Voice Broadcast Port: USB 2.0/ RS232 Serial Port, Debugging Port /TNC UHF Antenna Port
Key: One Power Key, Two Function Keys Indicator Led: Power Led, Satellite Led, Communication Led
Built-in UHF: Adjustable 0.5W/2W, Support 5 Km Working Distance, 9600 Or 19200bps U Disc: Support U Disc Storage Extension Up To 64GB, Support Hot Plug
High Light:

64GB RTK GNSS Receiver

,

Hot Plug GPS RTK Receiver

,

M8 GNSS Receiver


Product Description

Product Description

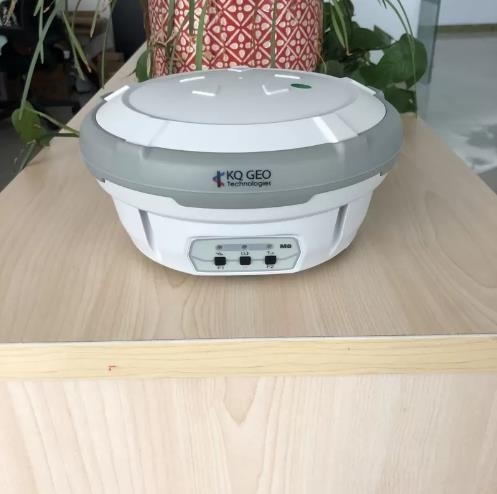

64GB Support Hot Plug GPS 256M Memory Capacity RTK KQ GEO M8 GNSS Receiver.





Technical parameter



Processor 454MHz industrial level processor
Memory capacity 256M Byte DDR2 SDRAM
Saving capacity 2G Byte NAND Flash
GNSS technical parameters
Mother board type PCC BD970/NovAtel OEM 628
Tracking channel

220 channel (BD970):
-GPS: L1 C/A, L2E, L2C, L5
-GLONASS: L1 C/A, L1 P, L2 C/A, L2 P
-GIVOVE-A/B

-BD-2: B1/B2
-SBAS

120 channel (OEM628):

–GPS: L1, L2, L2C

–GLONASS: L1, L2

–Galileo: E1,GIVOVE-A/B

–Compass

–SBAS

Positioning accuracy Single point positioning: 2-3 m
Static network post-processing:
horizontal: ±(2.5 mm+
1ppm)
height: ±(5 mm
+1ppm)
PPP(static) post-processing: 5cm
PPP(dynamic) post-processing: 10cm ~ 20cm
Dynamic route post-processing: 5cm ~ 20cm

RTK:
horizontal: ±(10 mm+1ppm)

Height: ±(20 mm+1ppm)

Communication parameters
GSM/3G

WCDMA(850/900/1700/1900/2100NHz)

GSM(850/900/1800/1900MHz)

Bluetooths 2.4GHz V2.0+EDR
U disc Support U disc storage extension up to 64GB, support hot plug
Built-in UHF Adjustable 0.5W/2W, support 5 km working distance, 9600 or 19200bps
Indicator led Power led, satellite led, communication led
Key One power key, two function keys
Port USB 2.0/ RS232 serial port, debugging port /TNC UHF antenna port
Application function Speaker for voice broadcast
Power supply
Battery Dual power supply + assistant battery design (6800mAh×2+650mAh), the main battery supports hot plug, changing battery without powering off
Power supply

Support 9~36V DC battery as power supply;

Support 220V AC as power supply



64GB Support Hot Plug GPS 256M Memory Capacity RTK KQ GEO M8 GNSS Receiver 064GB Support Hot Plug GPS 256M Memory Capacity RTK KQ GEO M8 GNSS Receiver 164GB Support Hot Plug GPS 256M Memory Capacity RTK KQ GEO M8 GNSS Receiver 264GB Support Hot Plug GPS 256M Memory Capacity RTK KQ GEO M8 GNSS Receiver 3




Packaging & Shipping


Economical 2



Our Services

1. Warranty: 12 months warranty is offered for survey equipment. 6 months warranty offered for survey accessory. Warranty comes in effective from the day your receive good.
2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be charged by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case.
3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us
4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site. We offer this service to bulk order while customer has requirement.
5. Technical support is offered 24/365.
