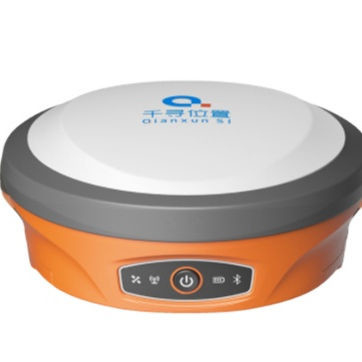

Vibration Resistant GPS 220 Channels RTK Receiver GNSS Base And Rover Qianxun SR3

Basic Information
Place of Origin: China
Brand Name: Qianxun
Certification: CE
Model Number: SR3
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: suitcase and carton
Delivery Time: 5-10day
Payment Terms: T/T, Western Union
Supply Ability: 10pcs/day
Detail Information
Static Accuracy Horizon:: 2.5mm+1ppmRMS Static Accuracy Vertical:: 5mm+1ppmRMS
RTK Accuracy Horizon:: 8mm+1ppmRMS RTK Accuracy Vertical:: 15mm+1ppmRMS
Power Supply Battery: Dual Rechargeble Batteries,7.20V/3400mh*2 Power Supply Working Time: Upto10 Hours
Power Supply Input: 9-28VDC, With Over-voltage Protection Data Interface TNC: For UHF Anternal Power
Data Interface 5-pin: External Radio And External Power Data Interface 7-pin: Connect To PC Controller And Other-external Device,such As Echo Sounder
Data Interface Indicator: 4 Indicators,Satellites,Datalink,Bluetooths,WIFI Status. Communication Memory: Internal8G;Removable Memory, Support TF Card
High Light:

Vibration Resistant RTK Receiver

,

GPS 220 Channels RTK Receiver

,

GPS GNSS Receiver SR3


Product Description

Product Description

Vibration resistant GPS 220 channels RTK receiver GNSS Base and Rover Qianxun SR3 .

•Intelligent dual batteries

Support up to 10 hours of work time, battery power can be read directly from the indicator light on the battery, the battery models of handheld device and host are same.



•Web UI

Access the Web page, complete the receiver configuration, download data, upgrade firmware, view status, etc. through the mobile phone, tablet and other handheld devices.



•Tilt survey

The SR3 receiver integrates an electronic bubble sensor, combined with a new tilt survey algorithm and surpad software operation. No calibration is required before measurement, the accuracy of coordinate data can be easily achieved within 30° tilt angle.



Technical parameter



Static Accuracy
Horizon: 2.5mm+1ppmRMS
Vertical: 5mm+1ppmRMS
RTK Accuracy
Horizon: 8mm+1ppmRMS
Vertical: 15mm+1ppmRMS
SBAS Accuracy
Horizon: 0.6mRMS Horizon: 0.3mRMS Horizon: 0.5mRMS
Code Differential Accuracy
Horizon: 0.4mRMS Horizon: 0.25mRMS Horizon: 0.25mRMS
Update rate
Up to 100HZ Upto50Hz Upto50Hz
Power Supply
Battery Dual rechargeble batteries,7.20V/3400mh*2
Working time Upto10hours
Input 9-28VDC, withover-voltage protection
Data Interface
TNC For UHF Anternal power
5-pin External radio and external power
7-pin Connect to PC controller and other-external device,such as Echo Sounder
Others SIM slot and TF slot
Indicator 4 indicators,Satellites,Datalink,Bluetooths,WIFI Status.
Communication
Memory Internal8G;Removable memory, support TF card
bluetooths V2.1+EDR/V4.1DualMode,Class2
WIFI 802.11b/g/n
4G GSM/GPRS/EDGE/LTE/UMTS/WCDMA
Internal UHF Transmitpower1W, Frequency
Work Distance 5Km in optimal environment
WEB UI To manage the status and settings,upgrade firmware, data download
Electric Bubble Enable
Tilt Survey Support
Physical
Dimension 156mm*76mm
Weight 1.2KG with 2 batteries inside
Environment
Operating Temperature -30℃~+65℃
Storage Temperature -40℃~+80℃
Water/Dust Proof IP67
Shock Survivea2m(6.6ft) poledrop,1.2m
Vibration Vibration resistant
