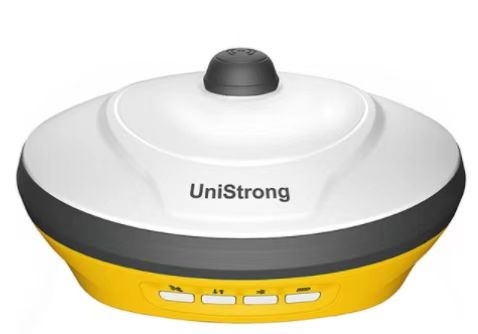

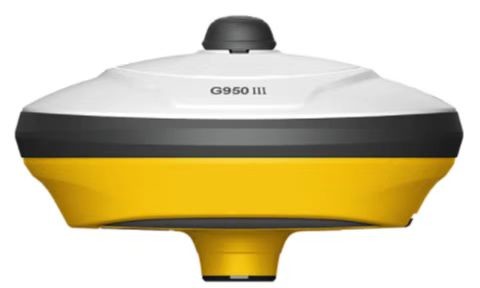

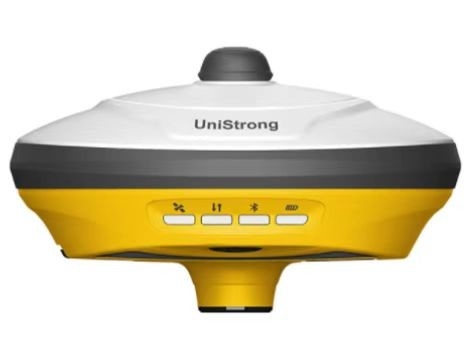

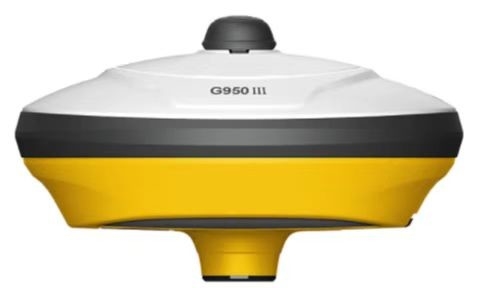

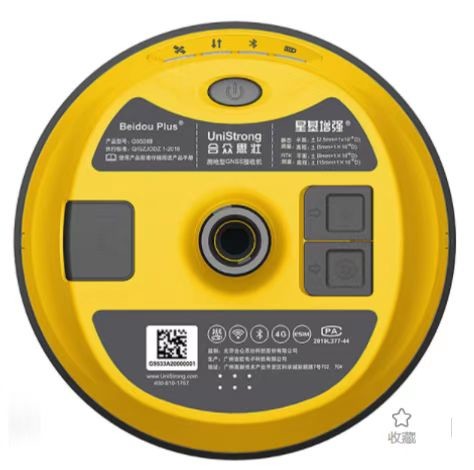

Dual Frequency Gnss Rtk Receiver Base and Rover G950III Pro With 800 Channel For Sale

Basic Information
Place of Origin: China
Brand Name: Unitstrong
Certification: CE
Model Number: G950III pro
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: With Standard Epxort Packing Ways
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs per year
Detail Information
Power Supply: AC 220V 50HZ Package: Standard Package
Data Communication: Blue Tooth Material: Aluminum Alloy
Dimension: 740"650"450mm Function: Eyesight Checking
High Light:

Dual Frequency Gnss Rtk Receiver

,

800 Channel Gnss Rtk Receiver

,

Rover G950III Pro RTK Receiver


Product Description

Product Description



BD970 motherboard

GPS+GLONASS+BEIDOU

LINUX system

8G memory

U disc extension

Automatically firmware updating

Multi-function keys

Internal bluetooth

Internal GSM modem

Full spectrum UHF

Powerful 35W external radio

Support self-built NTRIP server

System
Processor 454MHZ industrial level processor
Memory capacity 512M Byte DDR2 SDRAM
Saving capacity 8G Byte NAND Flash
GNSS technical parameters
Mother board type Trimble BD970
Tracking channel 220 channels
GPS:L1/L2/L5
GLONASS:L1/L2
GIVOVE-A/B
BDS:B1/B2
SBAS
Positioning accuracy Static post-processing: Horizontal:±(2.5mm+1ppm)
Vertical:±(5mm+1ppm)
RTK: Horizontal:±(8mm+1ppm)
Vertical:±(15mm+1ppm)
Communication parameters
GSM/3G GPRS(850/900/1800/1900MHz)
WCDMA(850/900/1700/1900/2100MHz)
Bluetooth 2.4GHz V2.0+EDR
U disc Support U disc storage extension to 64GB, support hot plug
Built-in UHF Adjustable 0.5W/2W
Indicator led Power led,satelite led, communication led
Key One power key, two function keys
Port USB2.0
RS232 serial port, debugging port
TNC UHF antenna port
Application function speaker for voice broadcast
Power supply
Battery Dual power supply+assistant battery design(6800mAh*2+650mAh), supports hot plug,changing battery without powering off
External power supply

Support 9-36V DC battery as power supply

Support 220AC as power supply

Hardware physical
Size φ200mmxh105mm
Weight 1.5kg(with battery)
Working circumstance
Working temperature -45°C~+65°C
Storage temperature -55°C~+85°C
Water/dust-proof IP67
Dual Frequency Gnss Rtk Receiver Base and Rover G950III Pro With 800 Channel For Sale 0Dual Frequency Gnss Rtk Receiver Base and Rover G950III Pro With 800 Channel For Sale 1
Our Services



1.Any inquiries will be replied within 12 hours.

2.All our products have one year warranty, And we sure the products will be free from maintenance within warranty period.

3.All products will have been strictly quality checked in factory before sending out.






M8 Intelligent GNSS Receiver

Packaging & Shipping
We can use the different international express company, usually, our first choice is DHL. if you have specified requirement , please inform us before the order.

Our Services
your inquiry will be replied within 24 hours, we welcome your email and call at any time.
our products are original and 100% new. and they will be carefully checked before we ship them out.
we provide one year quality warranty, within one year since you bought the products from us, you will get our technology support.
Company Information



Shanghai Galxy International Trade company, Ltd. combining with developing, researching and producing. Our company is located in Pudong Developing Zone, and has two subsidiary companies: Shanghai Galaxy International Trade Co., Ltd. and Mato Opto-electrical High-tech Company. Our company has researching center and factory in Changzhou.

Our main products are as following: total station, electronic theodolite, automatic level, laser level, rotation laser, GPS, distance laser sensor and accessories, such as tripod, prism, pole, staff and USB cable for total station. Our company designs software for many domestic and oversea factories, for example, Boif, TJOP, Stanley, and Cst-Berger. We have powerful capacity in technical research, and the products we designed have advanced technology and steady performance. The non-prism total station and the absolute coding measure instrument we developed and produced have very competitive points in the measure instrument market.

We expect that we could cooperate with more business partners from all over the world. In addition, we can do OEM service for companies or dealers that want to find better producers in China.

Our goal is to produce the best surveying instruments in the world.

Our target is to globalize the market, internationalize the quality and maximize the profit!
