Output Interface RS232C Mato Theodolite Double Sides Display GeoMato Met202 Theodolite

Basic Information
Place of Origin: China
Brand Name: Mato
Certification: CE
Model Number: Met-202
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: With Standard Export Packing ways
Delivery Time: 5-8 days, Specific need for consultation
Payment Terms: T/T, Western Union
Supply Ability: 1000 pieces per year
Detail Information
Model Number: GemMato Met-202 Color: Yellow
Compensating Range: ±3′ Stadia Proportion Constant: 100
Field Of View: 1°30′ Shortest Sighting Distance: 1m
Minimum Reading: 1"/5" Accuracy: 2"
High Light:

Double Sides Display Electronic Digital Theodolite

,

RS232C Total Station Theodolite

,

Electronic Digital Theodolite Met202


Product Description

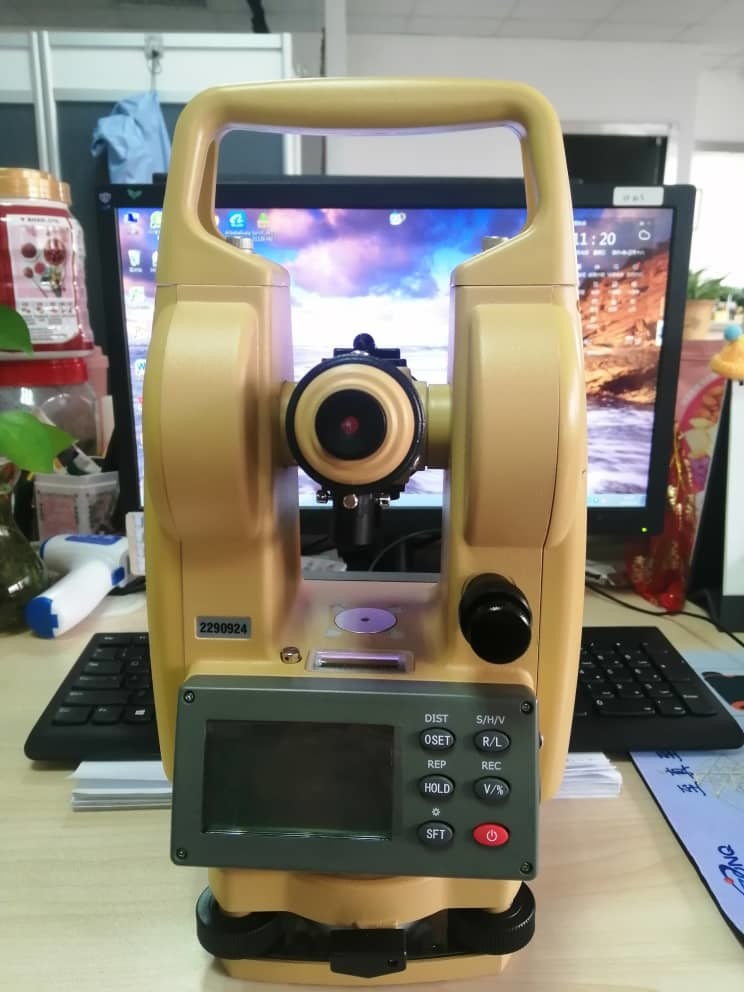

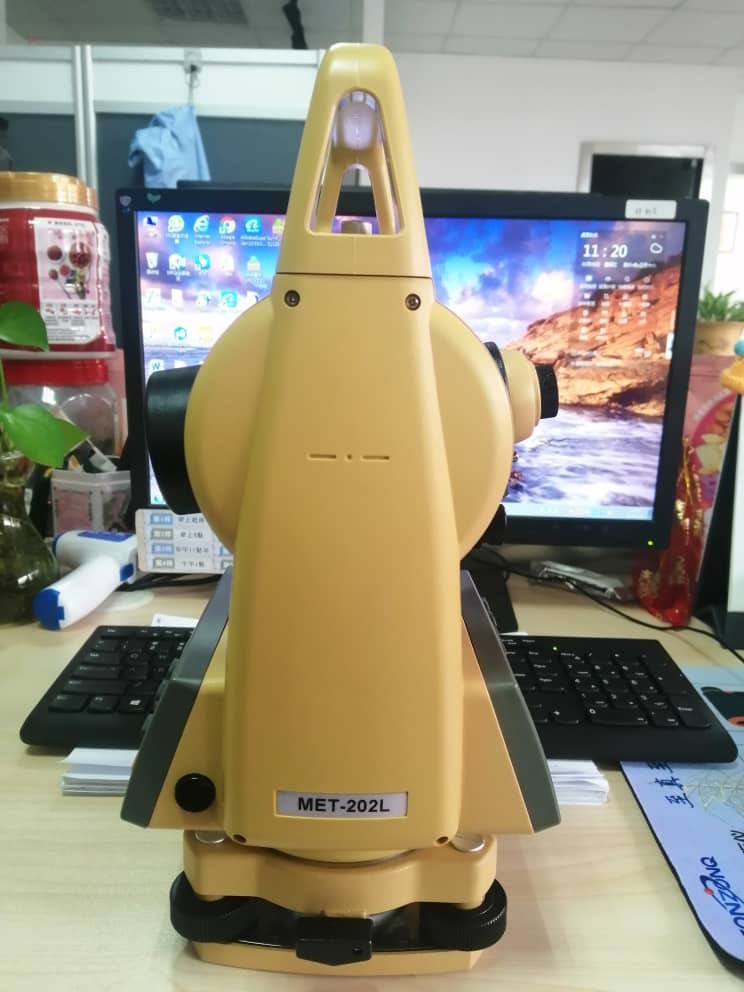

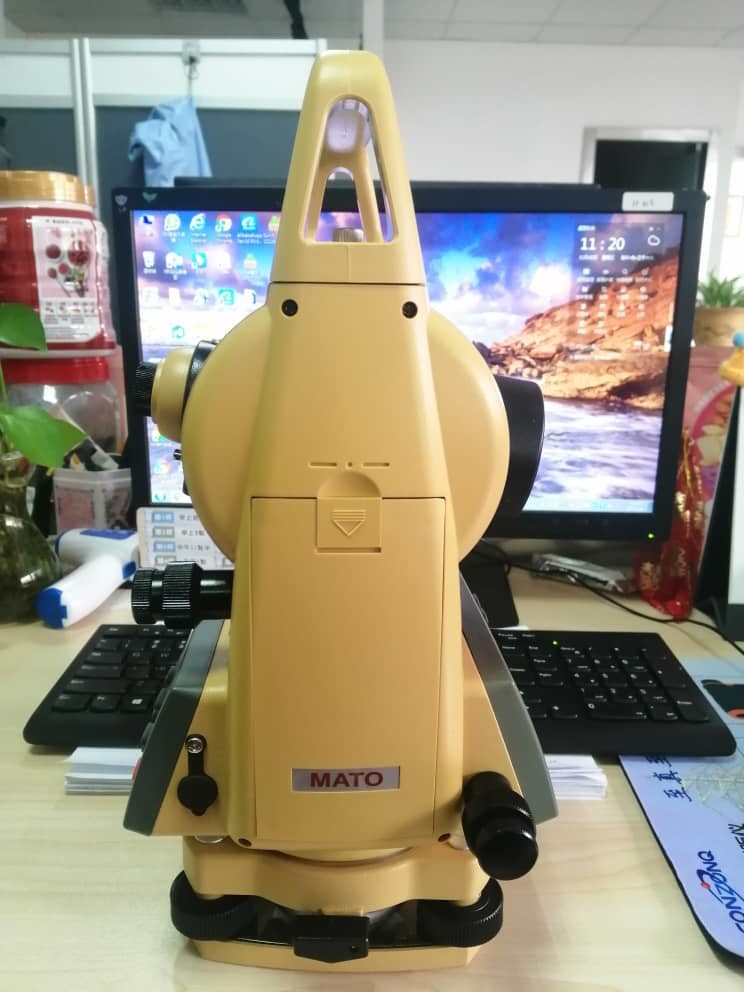

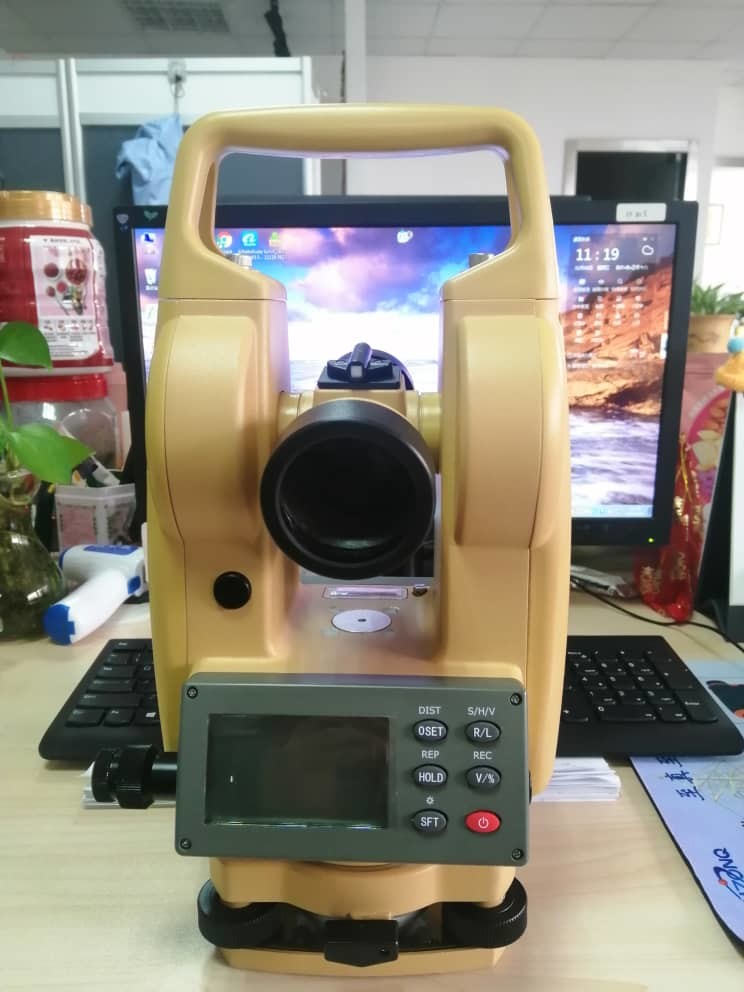

Output interface RS232C Mato Theodolite Double sides display GeoMato Met202 Theodolite



Large screen with a time display,high-brightness background-lighting

·Symmetrical support structure to ensure stability

·Build-in standard laser center-point equipment is simple and easy to use

·32-bit high speed CPU board ,processing speed .Fast Rotating telescope and bracket with not lead to loss of date and alarm

·Can store 1000 data,and the data structure is time ,angle and distance

·Wide handle showing human design,beautiful and practical

·High-precision and even intensity of laser on button for easy operation



Output Interface RS232C Mato Theodolite Double Sides Display GeoMato Met202 Theodolite 0Output Interface RS232C Mato Theodolite Double Sides Display GeoMato Met202 Theodolite 1





MET-202

MET-205

MET-210

Telescope

Length

165mm

165mm

165mm

Objective lens aperture

45mm

45mm

45mm

Magnification

30X

30X

30X


Erect

Erect

Erect

Field of view

1°30′

1°30′

1°30′

Resolving power

3.3″

3.3″

3.3″

Shortest sighting distance

1m

1m

1m

Additive constant

0

0

0

Stadia proportion constant

100

100

100

Angle measurement

Minimum reading

1"/5"

1"/5"/10"

1"/5"/10"/20"

Accuracy

2"

5"

10"

Display

Display method

Double sides display

Double sides display

One side

IIIumination

Provided

Provided

Provided

Compensator

Tilt sensor

A provided

A provided
B unprovided

B unprovided

Compensating range

±3′

±3′

-

Optical plummet

Magnification

3X

3X

3X

Field of view

Focusing rang

0.5m∼∞

0.5m∼∞

0.5m∼∞

Level sensitivity

Plate level

30″/2mm

30″/2mm

30″/2mm

Circular level

8′/2mm

8′/2mm

8′/2mm

Data output

Output interface

RS232C

RS232C

RS232C

Power supply

Battery

Four XAAsize batteries

Four XAAsize batteries

Four XAAsize batteries
