CHC I93 RTK GPS Calibration-Free IMU For Pole-Tilt Compensation Immune To Magnetic Disturbances GNSS I93 CHCNAV

Basic Information
Place of Origin: China
Brand Name: CHCNAV
Certification: CE
Model Number: i93
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: suitcase and carton
Delivery Time: 5-10day
Payment Terms: T/T, Western Union
Supply Ability: 10pcs/day
Detail Information
Channels: 1408 Channels GPS Galileo: L1 C/A, L2C, L2P, L5 E1, E5a, E5b
Name: CHCNAV X16 Pro Type: Cheap Price
Network Modem: Integrated 4G Modem GLONASS: L1, L2
BeiDou: B1, B2, B3 QZSS: L1, L2, L5
Real Time Vertical: 15 Mm+ 1 Ppm RMS Content: Index
Initialize Reliability: 99.90%
High Light:

Calibration Free IMU RTK GPS Receiver

,

CHC I93 RTK GPS Receiver

,

Pole Tilt Compensation GNSS Receiver


Product Description

Product Description

CHC I93 RTK GPS Calibration-free IMU for pole-tilt compensation Immune to magnetic disturbances GNSS Receiver I93 CHCNAV :

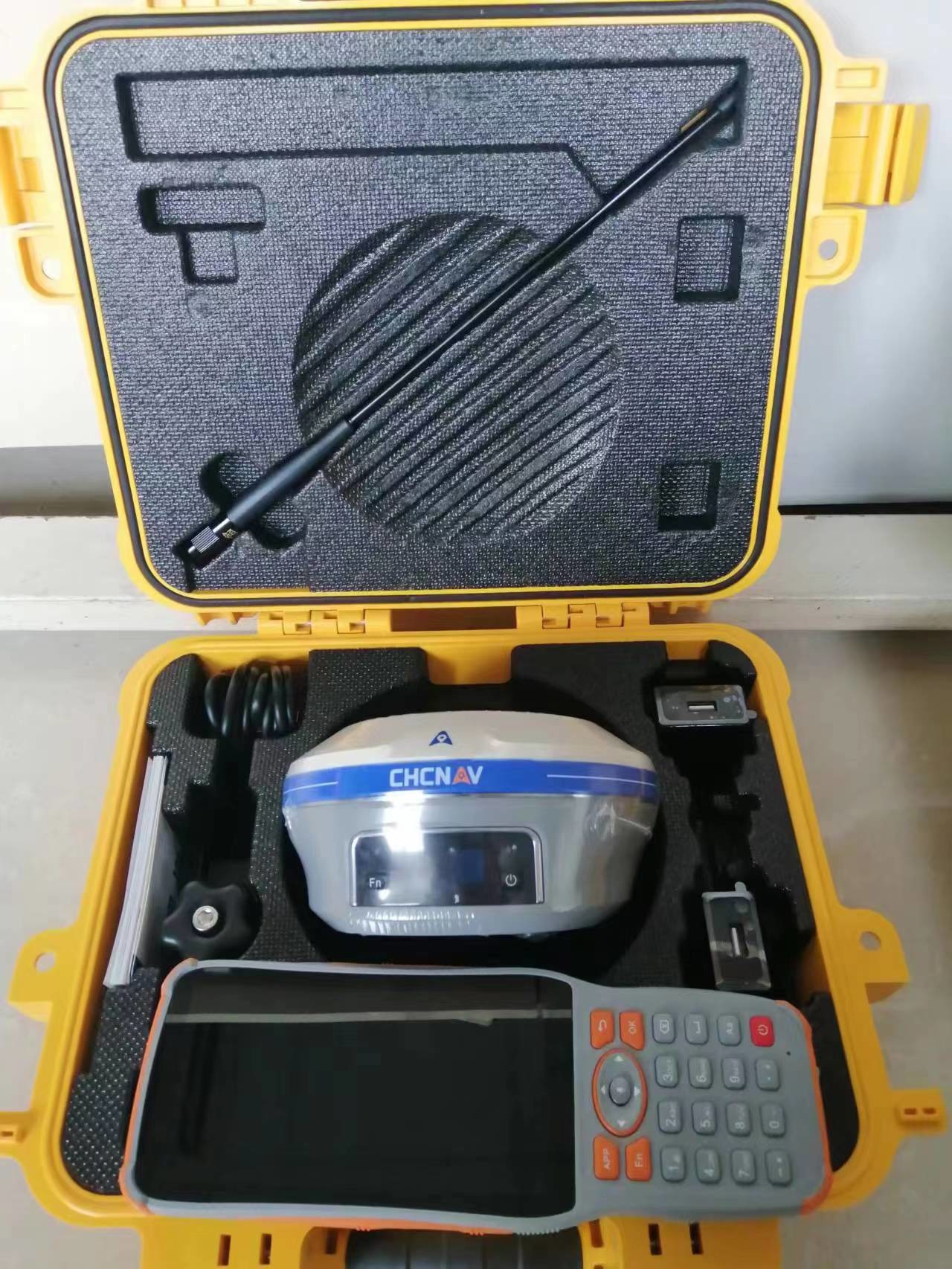

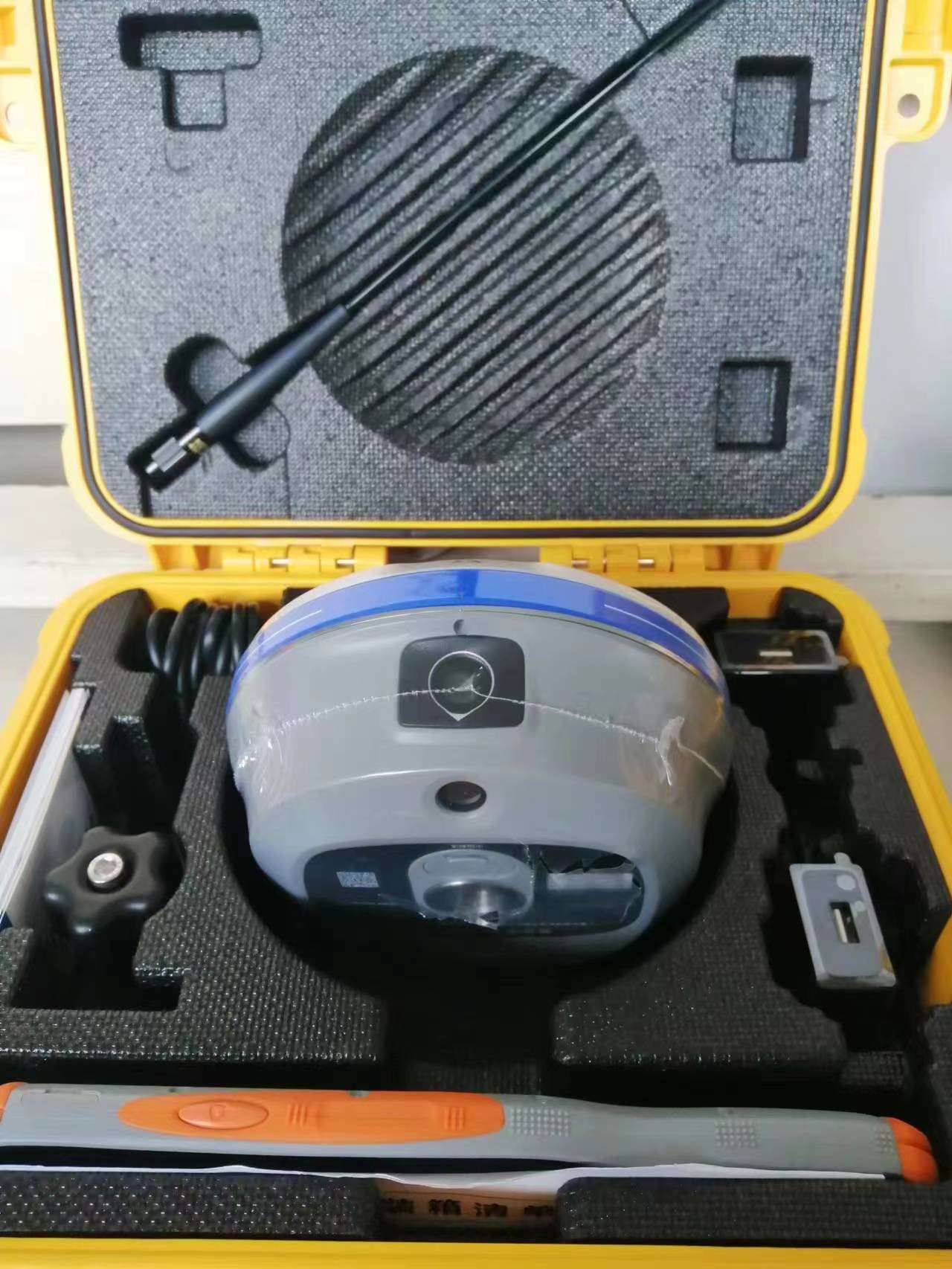

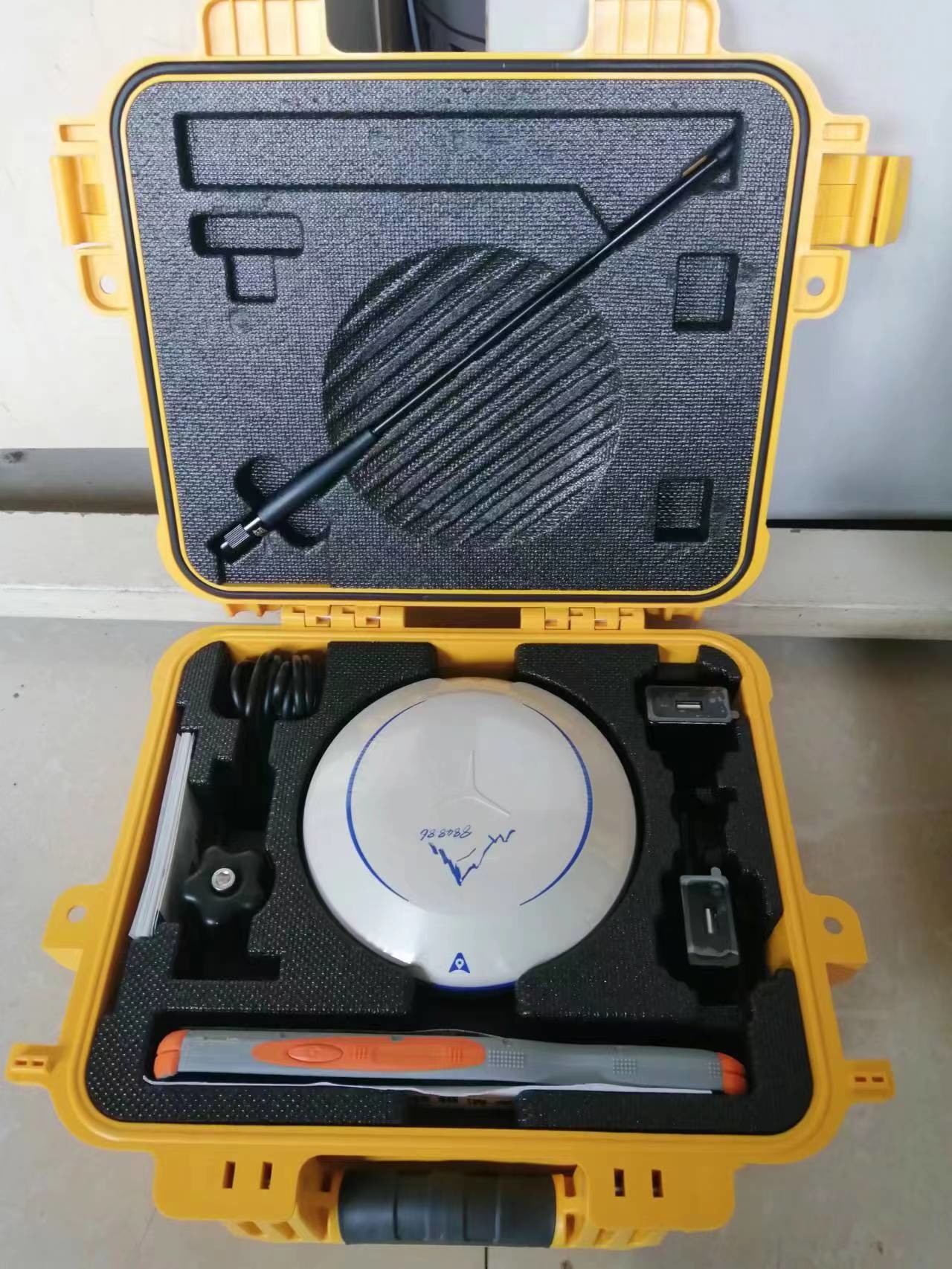

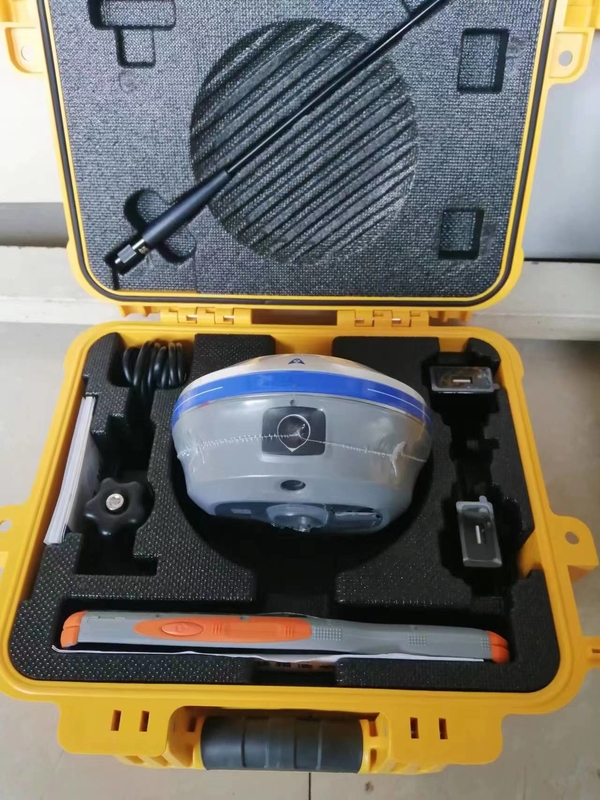

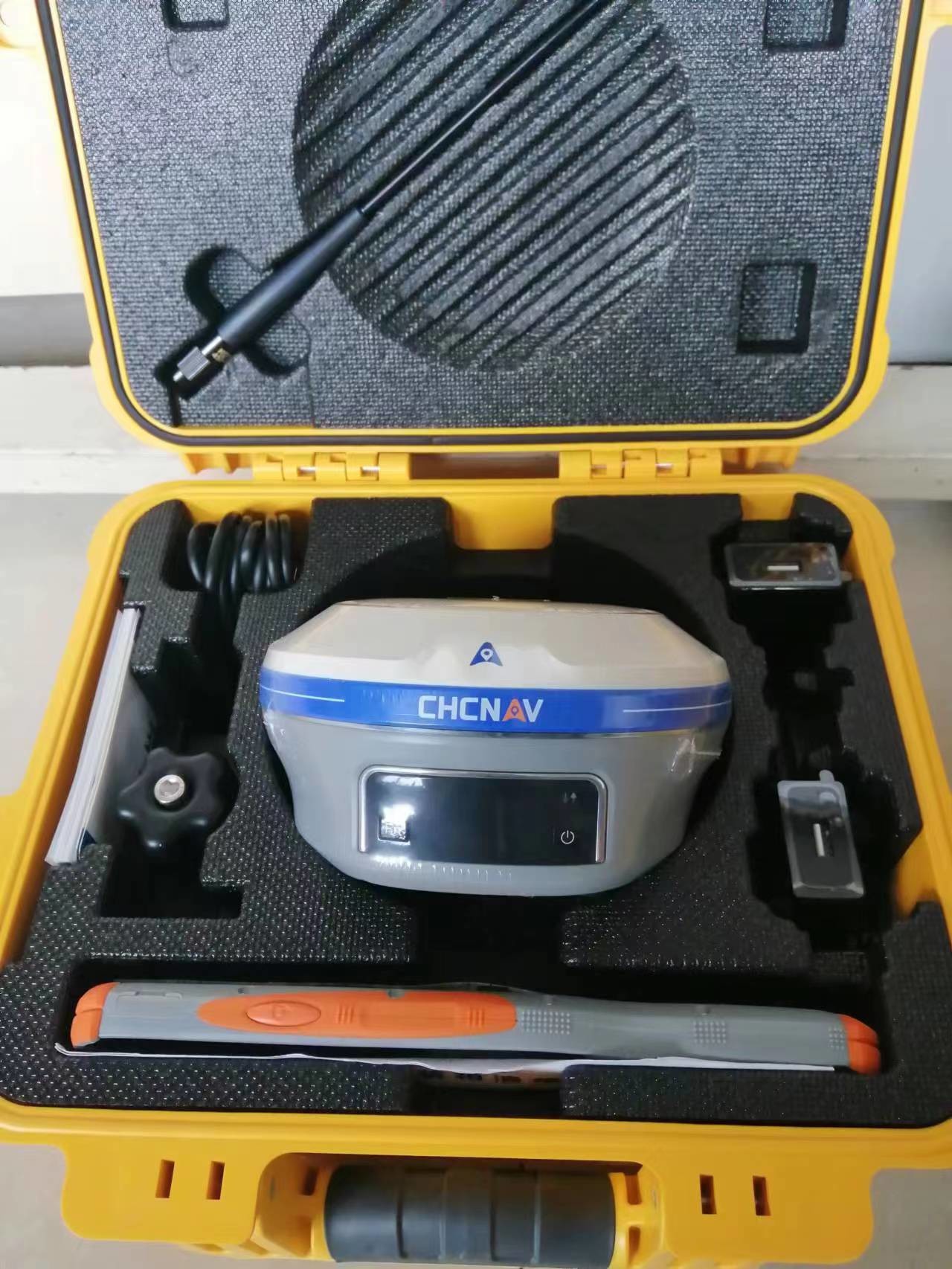

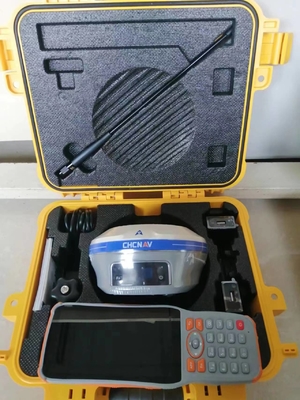

CHC I93 RTK GPS Calibration-Free IMU For Pole-Tilt Compensation Immune To Magnetic Disturbances GNSS I93 CHCNAV 0CHC I93 RTK GPS Calibration-Free IMU For Pole-Tilt Compensation Immune To Magnetic Disturbances GNSS I93 CHCNAV 1CHC I93 RTK GPS Calibration-Free IMU For Pole-Tilt Compensation Immune To Magnetic Disturbances GNSS I93 CHCNAV 2






Technical parameter
project content index
Satellites and Accuracy satellite system GPS+BDS+Glonass+Galileo+QZSS, support the third generation of Beidou, support five-star twenty-one frequency
number of channels 1408
Initialize reliability 99.90%
No network continued test Support high-precision solution, the base station can publish data such as power information
Signal capture sensitivity Typical value -162dbm, stronger ability to capture weak signal
satellite-based differential Support L-Band function:
(optional) Support Beidou third-generation B2b-ppp service, the accuracy can reach centimeter level
  Support domestic satellite-based enhanced services (centimeter level)
  Support ground-based augmentation system differential services (centimeter level)
  Global satellite-based centimeter-level services can be opened
GNSS+Inertial Navigation[2] IMU update rate 200Hz
slope 0-60 degrees
super inertial navigation Support travel process to complete initialization, and support centering rod calibration
User interaction indicator light 1 satellite light + 1 differential data light + 1 static indicator light + 1 power light
button Static toggle key + power/confirm key
web page Support PC/mobile web pages
Camera Function Support visual stakeout
pixel 2MP
frame rate 25Hz
Field of View (H, V) 75°, 75°
Illumination Starlight-level camera, still maintains full-color picture under 0.01lux illumination
physical properties size Φ133mm*87.6mm
weight 0.8 Kg (including battery)
material magnesium alloy
Operating temperature -45ºC~+75ºC
storage temperature -55ºC~+85ºC
waterproof breathable membrane Prevent water vapor from entering the equipment in harsh environments such as sun exposure and sudden heavy rain
Waterproof and dustproof IP68 (Protection against 1 meter immersion in water for 30 minutes)
anti-collision IK08 (with the same mechanical impact force as a 2.5kg steel ram without damage, 3 meters drop resistance)
Electrical properties Battery Built-in 6600mAh lithium battery
The typical battery life of the mobile station is more than 16h
fast charge Support fast charge, up to 24w fast charge
Built-in storage 8GB, can support external expansion 128G, automatic cycle storage, disk
After the storage is full, it will be automatically deleted, and the static data of the receiver will be copied with one key.
data output Differential data RTCM2.X, RTCM3.X, CMR, CHC516
positioning data NMEA-0183
static data HCN, RINEX 2.11, RINEX3.02
data communication wireless connection Support Wi-Fi data link
network module Handbook supports 4G full Netcom
radio Built-in single-receiver radio, support CTI/TT450/transparent transmission protocol
Advanced Features One-click fix Comes with a CORS account, which can be fixed at startup
Smart service Support CTI cloud service, provide cloud storage, function code sharing
control handbook model HCE600 Android Measurement Handbook
operating system Android 10
CPU Octa-core 2.0GHz processor
network 4G full Netcom, built-in eSIM for three years of surveying and mapping traffic
Operating temperature -30ºC-+60ºC
Storage temperature -40ºC-+80ºC
Waterproof and dustproof IP68
