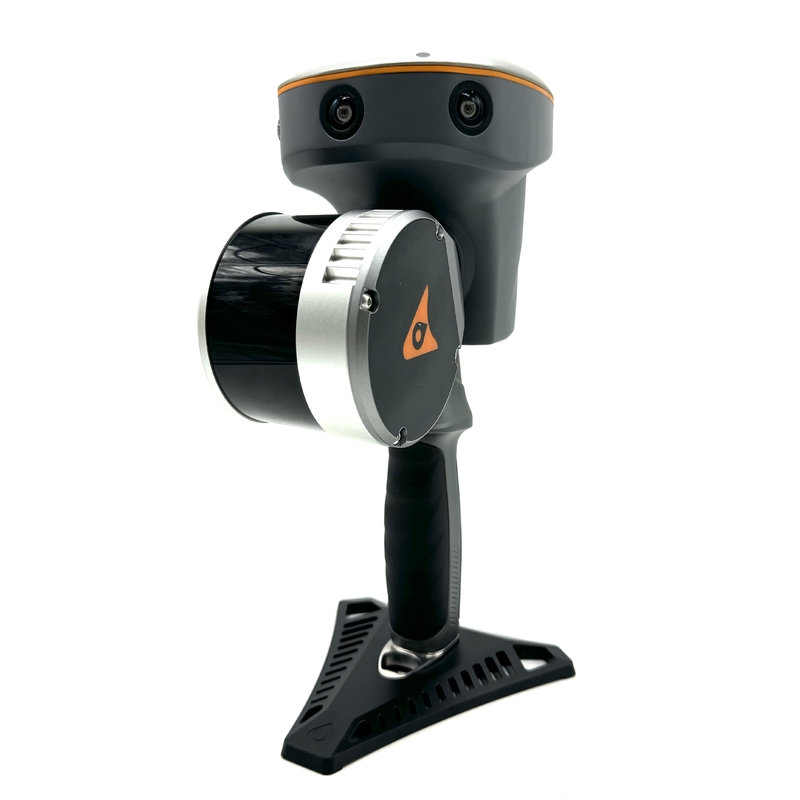

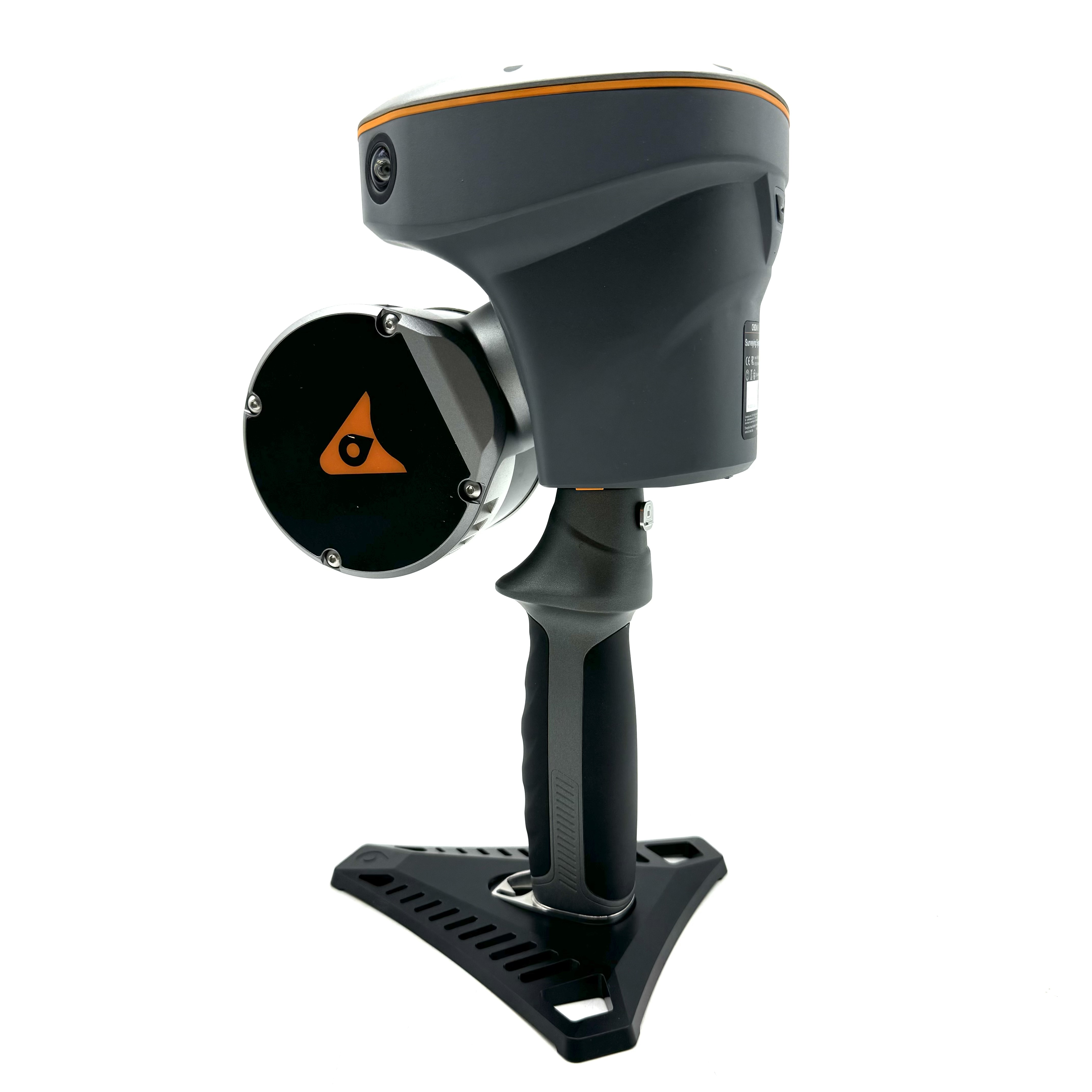

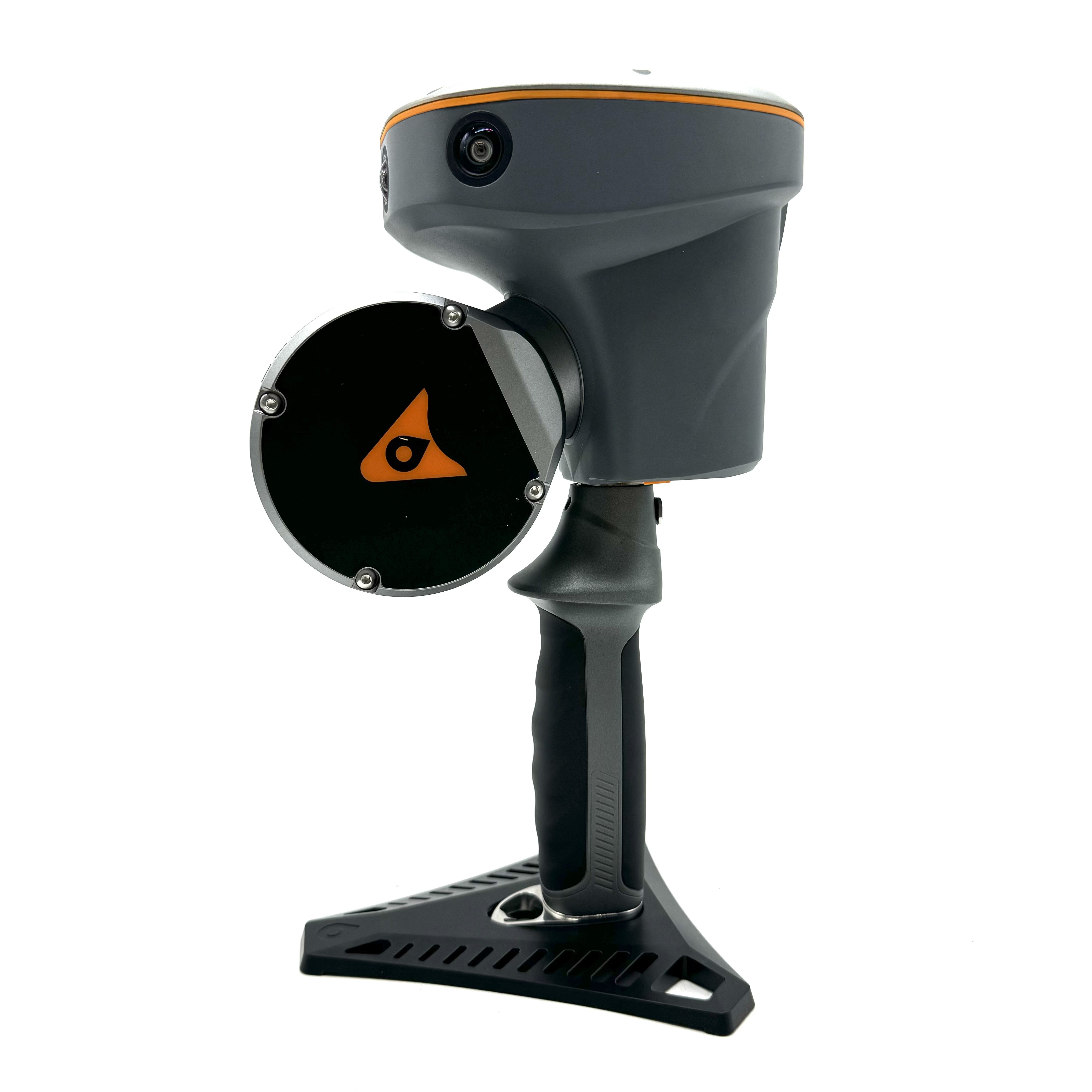

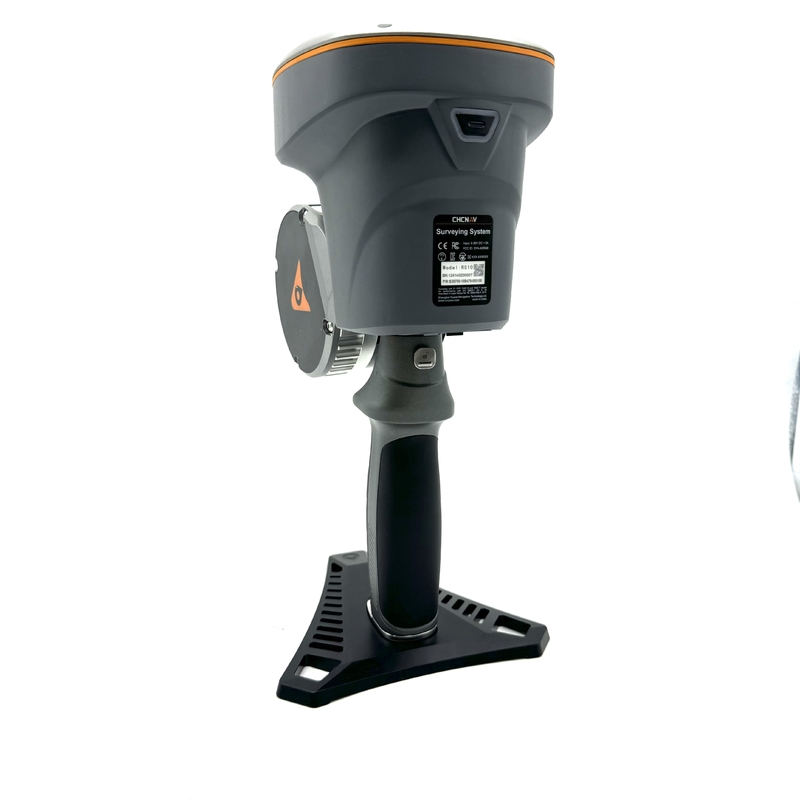

Name: Chc RS10 Provides Real Time Slam 3D Laser Scanner surveying instrument
Brand: Shanghai Hengyide Electronic Technology Co.,Ltd Ltd.
SKU: RS10
Price: 4,090.00 USD
Availability: InStock

Detail Information

Product Name:	3D Laser Scanning	Absolute Accuracy:	< 5 Cm RMS
Relative Accuracy:	<1 Cm	Data Storage:	512 GB
Laser Scanner:	Class 1 Eye Safe	Range:	0.05 To 120 M
Highlight:	Chc RS10 3D Scanning surveying instrument , Chc RS10 3D Scanning surveying instrument , Real Time Slam 3D Laser Scanner

Product Description

CHC 3D laser scanning high-precision GNSS and SLAM technologies

RS10
The RS10 combines GNSS RTK, laserscanning, and visual SLAM technologies forprecise 3D scanning and surveying indiverse environments, offering versatility andaccuracy for professionals in surveying, civilengineering, construction, mining, and otherindustries.

RTK AND SLAM FUSION FOR BETTER MAPPING ACCURACY

The RS10 is the result of CHCNAV's expertise in GNSS technology development. Featuring a 4th generation air dielectric GNSS antenna, it provides RTK positioning accuracy of better than 3 cm in a variety of challenging environments. Combined with the system's high-precision LiDAR and three HD cameras, it fuses RTK, laser, and visual SLAM to deliver 5 cm absolute measurement accuracy. From detailed architectural surveys to complex infrastructure projects, the RS10 gives professionals the tools they need to collect rich and accurate data efficiently.

REAL-TIME SLAM CAPABILITIES

Equipped with a powerful on-board processor, the RS10 provides real-time SLAM (Simultaneous Localization and Mapping) capabilities to create georeferenced point clouds directly in the field without the need for post-processing. With immediate feedback on the collected data, users can make adjustments on the fly to ensure complete and detailed scan coverage. The RS10 can map large areas up to 13,000 square meters in real-time, making it ideal for rapid or complex surveying projects where time and accuracy are critical. Chc RS10 Provides Real Time Slam 3D Laser Scanner surveying instrument 0

Tag:

Place of Origin:	China
Brand Name:	CHC
Certification:	CE
Model Number:	RS10

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	Carton
Delivery Time:	1-3 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 pcs /month
