| Place of Origin: | China |
|---|---|
| Brand Name: | Galaxyz |
| Model Number: | GAL32X |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | with standard exporting package |
| Delivery Time: | within 3-5work days after the goods are paid . |
| Payment Terms: | TT ,Western Union |
| Supply Ability: | 10000 |

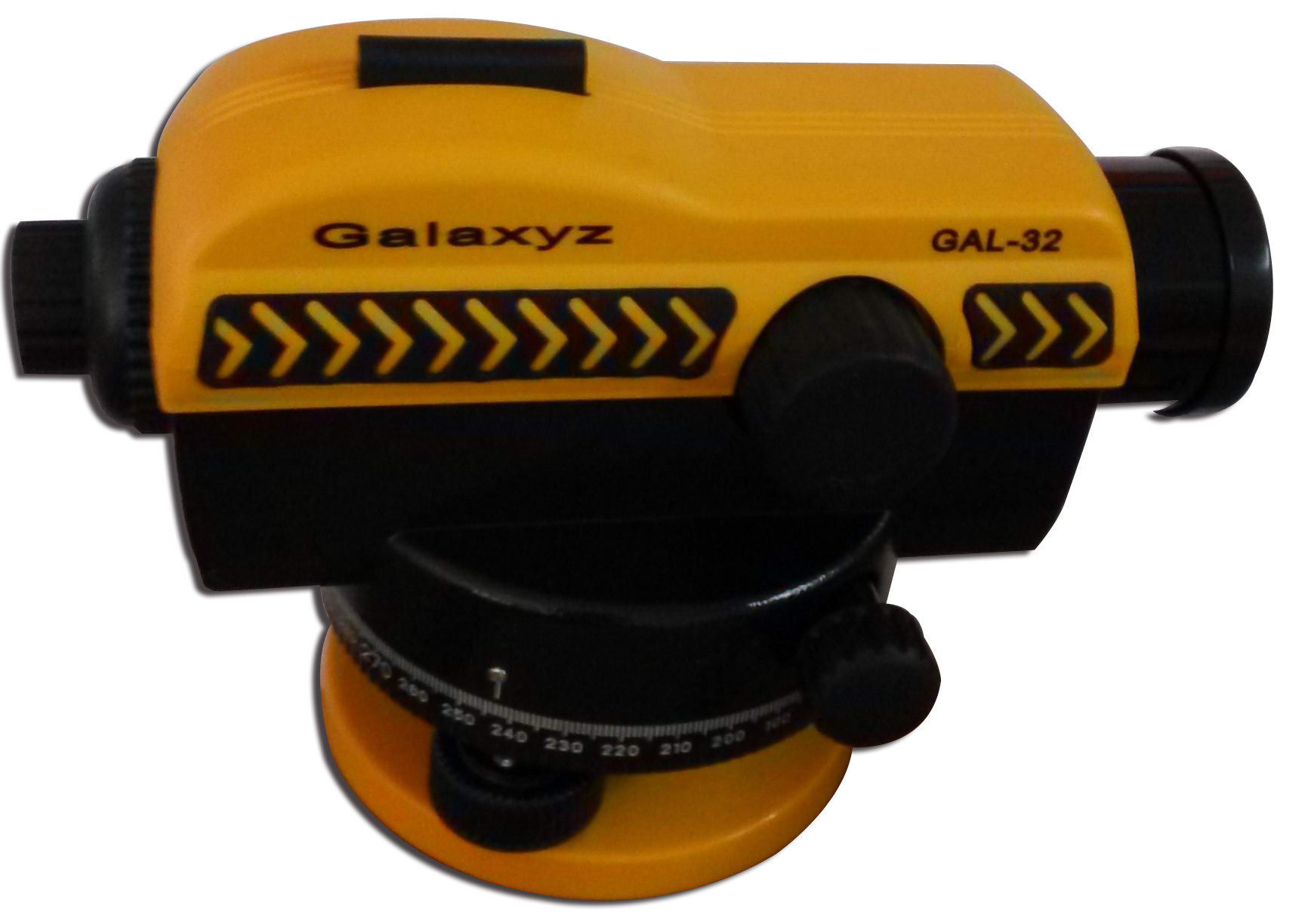

| Product Name: | Auto Level | Min Focusing Range: | 0.5m |
|---|---|---|---|
| Weight: | 1.6Kg | Model: | GAL32X |
| Horizontal Circle: | 360 / 400 Circle | Min Focus Range: | 0 . 5M |
| High Light: | automatic level machine,automatic level instrument |
||
|
Item no.: |
GAL20 |
GAL24 |
GAL28 |
GAL32 |
|
Magnification: |
20X |
24X |
28X |
32X |
|
Standard deviation for 1km: |
2.5mm |
2.0mm |
1.5mm |
1.5mm |
|
Double run leveling Objective Aperture: |
34mm |
36mm |
36mm |
38mm |
|
Field of View: |
1°20' |
|||
|
Shortest Focus Distance: |
0.5m |
|||
|
Compensator type: |
wire-hung and air-damping with locking system |
|||
|
Working range of compensator: |
±15' |
|||
|
Levelling accuracy: |
±0.8" |
±0.6" |
±0.5" |
±0.5" |
|
Circular vial: |
8'/2mm |
|||
|
Horizontal circle: |
360°or 400G for option. |
|||
|
Weight: |
1.6kg |
|||
|
Standard outfit: |
Automatic Level, plumb bob, adjusting wrench, instruction manual, plastic carrying case. |
|||
