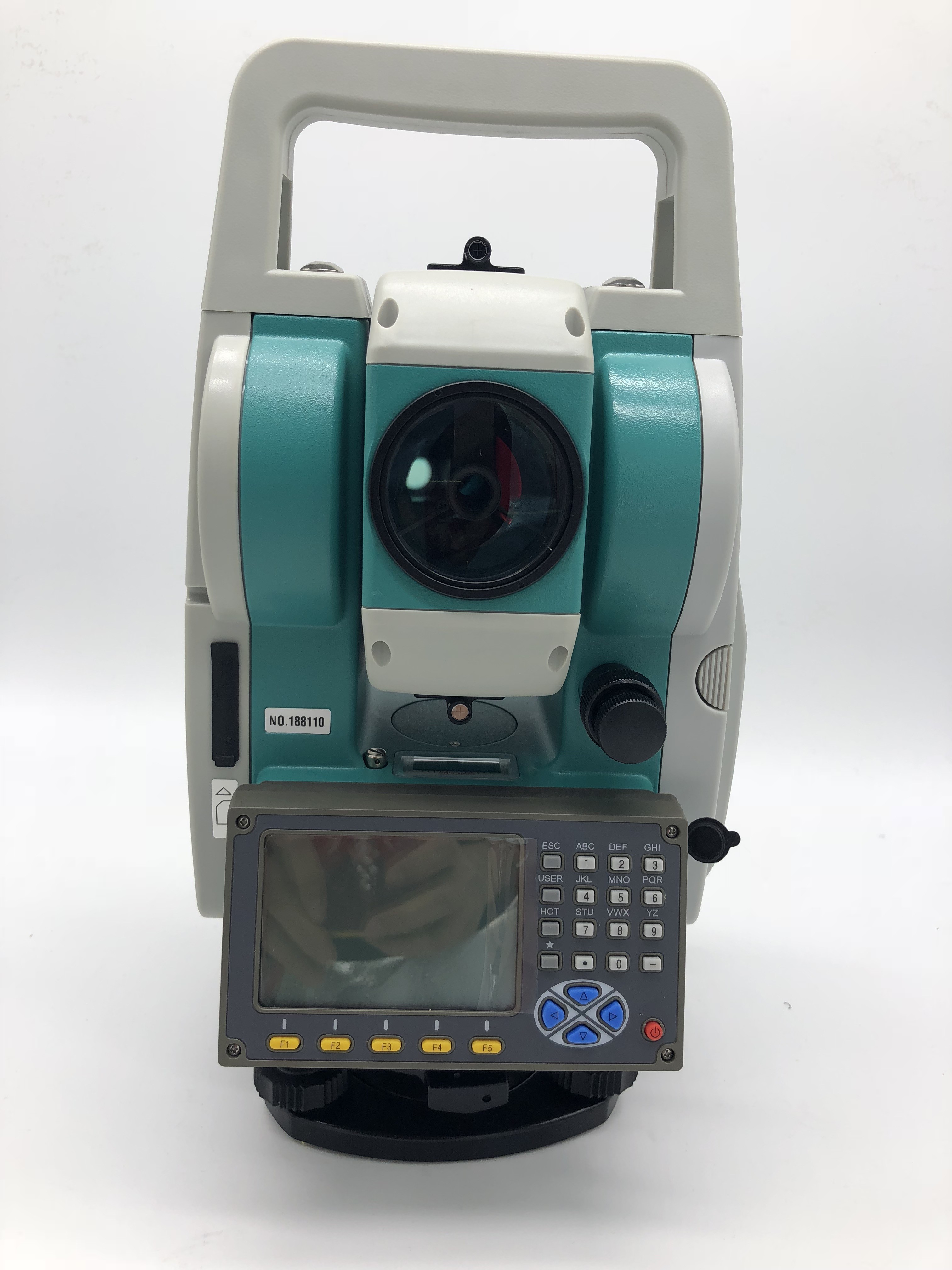

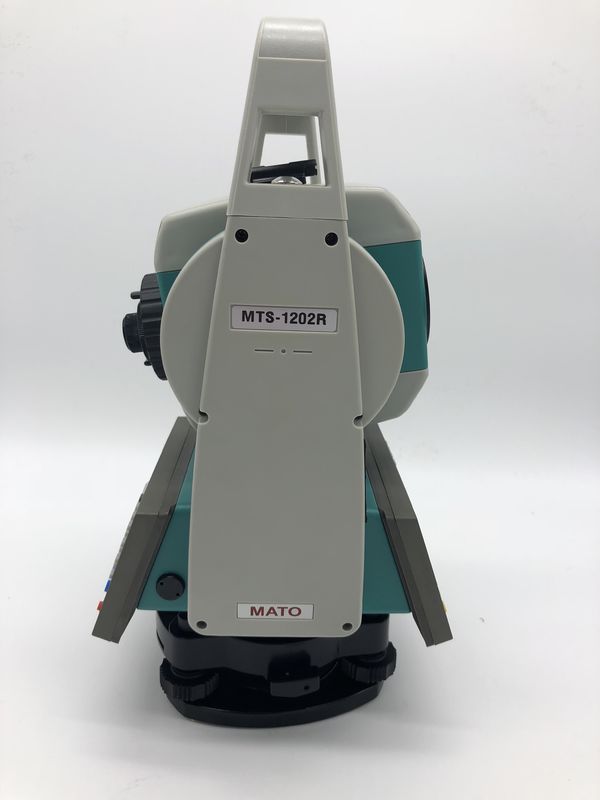

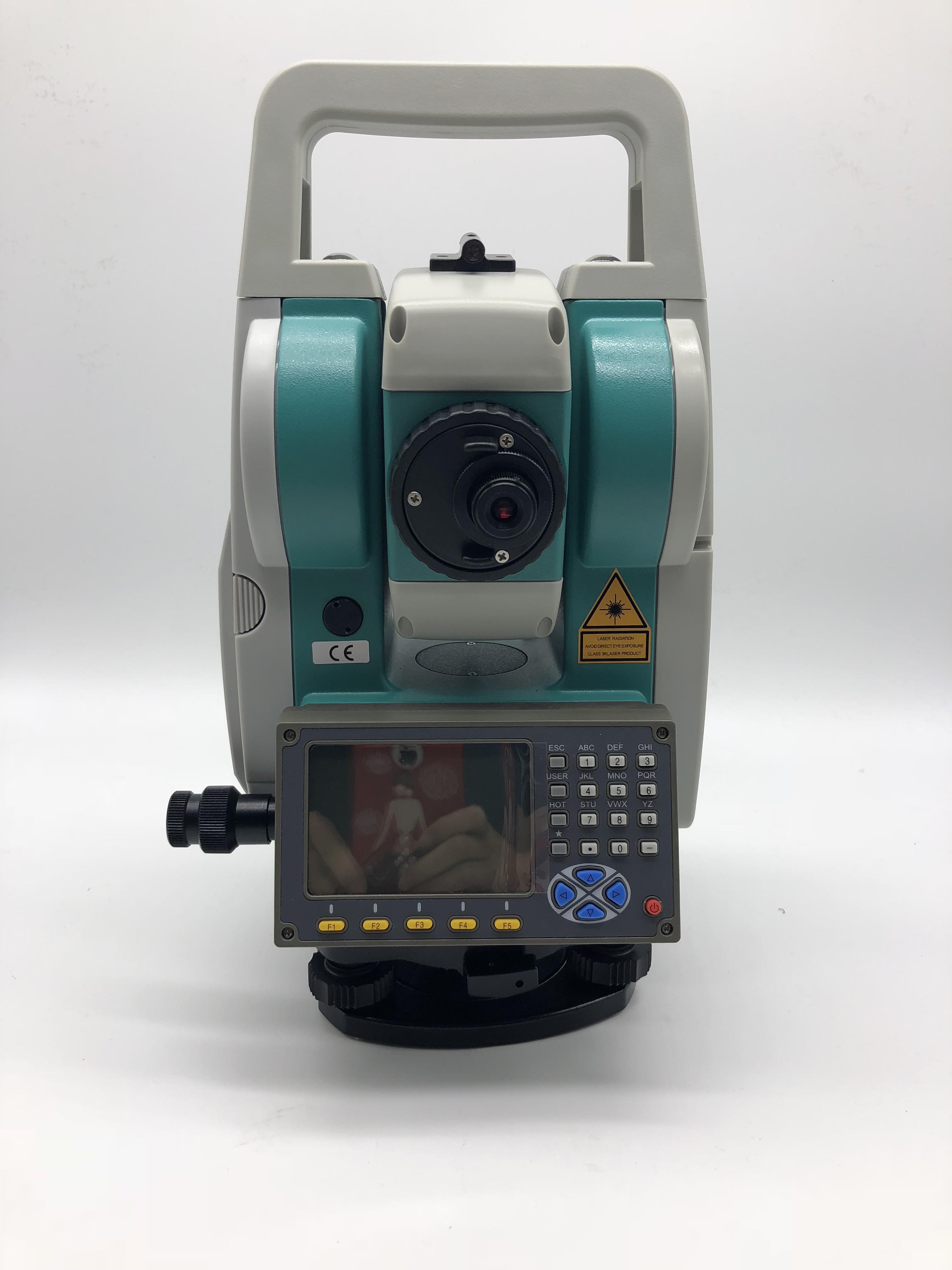

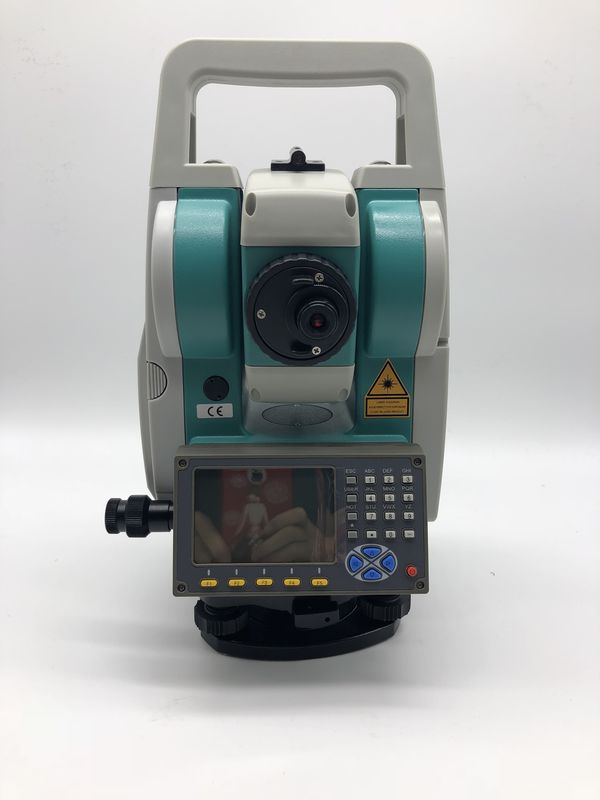

MODEL MTS1202R
Telescope
Image --------------------------------------Erect
Magnification -----------------------------30X
Effective Aperture ------------------------45mm
Resolving Power----------------------------- 4"
Field Of View ----------------------------------1°30'
Minimum Focus -------------------------------1.5m
Distance Measurement(under Fair Weather Condition)
PRISMLESS : -------------------------------------500 m
Range 1P ---------------------------------------------3km
3P------------------------------------------------------ 5km
Accuracy------------------------------------------------ 2mm+2ppmxD
Minimum Count---------------------------------------- 1mm
Distance Unit ft.Or m selectable
Measuring Time
Fine -------------------------------------------------------1.8sec.(first time2.5sec.)
Tracking -------------------------------------------------0.4 Sec.
Maximum display --------------------------------------999999.999m
Atmospheric Correction
Temperature ---------------------------------------------C or F
Atmospheric Pressure -----------------------------------hPa/mmH/inHg
Atmospheric Deflection &
Earth Curvature
Correction-----------------------------------------------------k=0.14/0.20/0
Prism Constant ----------------------------------------------0 mm / 30 mm
Angle Measurement
Measurement Method--------------------------------------Incremental Photoelectronic Encoder
Detection Method
Horizontal--------------------------------------------------- Dual
Vertical------------------------------------------------------ Dual
Accuracy ----------------------------------------------------2"
Minimum Readout ----------------------------------------1"and5"
Sensitivity of Vials
Plate Vial ----------------------------------------------------30"/2mm
Circular Vial -------------------------------------------------8'/2mm
Compensation ----------------------------------------------Dual Axis Compensation
Type ----------------------------------------------------------Liquid-electric detection/Plate level
Compensation Range------------------------------------ +/-3'
Resolution --------------------------------------------------1"
Optical Plummet
Image --------------------------------------------------------Erect
Magnification -----------------------------------------------3X
Focus Rang -------------------------------------------------0.5m-infinity
Display --------------------------------------------------------Big Display , Double Side, LCD
Data Port -----------------------------------------------------RS-232
Packaging & Shipping
Original Packing.
Your products will be shipped within 3 days after received payment.
