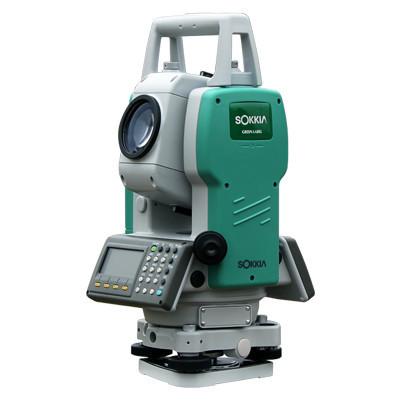

Sokkia Set02N Total Station

Model

SET-02N

Telescope

Length

150mm

Objective  aperture

45mm(EDM: 50mm)

Magnification

30  ×


Erect

Field  of  view

1° 30'

Resolving  power

3.0  "

Shortest  focus

1.3m

Distance  measurement  section

Single  prism

2, 000m

Three  prism

2700m

Measuring  Accuracy

± (2mm+2ppm× D)m. s. e

Measuring  time

(first  time)

fine

1.2sec(4sec)

tracking

0.4sec(3sec)

Angle  measurement  section

Accuracy

2  "

Method

Absolute  encoder

Minimum  readout

1" /5  "

Diameter  of  circle

71mm

displaying

display

Double  sides

Tilt  compensator

method

Single  axis

range

± 3'

Level  sensitivity

Circular  level

10' /2mm

Plate  level

30  " /2mm

Optical  plummet

Magnification

3x

Focus  range

0.5m-∞

Field  of  view

5°

Durability

Proof  water

and  dust

IP54

Working  temperature

-20

Power  supply

Charger

TBC-2

Battery

TBB-2, 2300mA

7.2V(NI-MH)

Working  time

45hours

(angle  measurement)

10hours

(angle  and  distance  measurement)

others

size

336H× 184W× 172L

Weight(with  battery)

4.9kg

Data  port

RS-232C

Internal  memory

24000points
