Name: Gowin TKS202 Total Station
Brand: Shanghai Hengyide Electronic Technology Co.,Ltd Ltd.
SKU: TKS202
Price: 2300 USD
Availability: InStock

Gowin TKS202 Total Station

Basic Information

Place of Origin:	China
Brand Name:	Gowin
Model Number:	TKS202

Minimum Order Quantity:	1pc
Price:	usd2300
Packaging Details:	with standard exporting package
Delivery Time:	within 3-5work days after the goods are paid .
Payment Terms:	TT ,western Union
Supply Ability:	10000 Per Year

Get Best Price Contact Now

Detail Information

Accuracy Class:

Highlight:

robotic total station

manual total station

Product Description

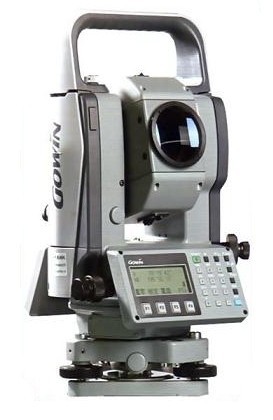

Gowin TKS202 Total Station

Gowin TKS202 Total Station 0

•Two second angle accuracy

• Economical, value-priced measuring solution

• Expanded, full numeric keypad

• On-board programs & 24,000 point data storage

• Ideal for Boundary, Topo and Stakeout applications

If you need to replace an outdated instrument or add an economical and lightweight backup, the winner is Gowin.

Built to work the way you do, the GoWin comes standard with an RS232 port, perfect for use with Topcon’s FC series data collectors. If you want more, upgrade to “Hayes Instruments exclusive” BlueTooth option for a completely cable free instrument.

As with all Topcon instruments, the Gowin is built to be reliable and cost effective while providing years of productivity.

Length	150mm
Object Lens Diameter	45mm (EDM:50mm)
Magnification	30x
Minimum Focusing Distance	1.3m
DISTANCE MEASUREMENT *1
1 prism	2,000m
3 prism	2,700m
Accuracy	±(2mm + 2ppm x D) m.s.e.
MEASURING TIME
Fine Mode	1mm: 1.2sec (Initial 4sec) 0.2mm: 2.8sec (Initial 5sec)
Coarse Mode	0.7sec (Initial 3sec)
Tracking Mode	0.4sec (Initial 3sec)
ELECTRONIC ANGLE MEASUREMENT
Method	Absolute Reading
Detecting System	Horizontal Angle: 2 side, Vertical Angle: 1 side
Accuracy	2"
TILT CORRECTION
Tilt Sensor	Single Axis
Method	Liquid Type
Compensating Range	±3’
DISPLAY
Display Unit	2 side
Display Type	Dot Matrix Graphic LCD
Keyboard	24 keys
BATTERY LIFE
Angle & Distance Measurement	14 h
Angle Measurement Only	60 h
OTHERS
Serial Signal Connection	Yes
BlueTooth	Optional
Environmental Protection	IP54
Internal Data Memory	24,000 pts
Ambient Temperature Range	-4°F to +122°F (-20°C to +50°C)
Plummet	Optical Only
