Place of Origin: | China |
---|---|
Brand Name: | MATO |
Certification: | CE |
Model Number: | MTS602R |
Minimum Order Quantity: | 1pc |
Price: | usd1800 |
Packaging Details: | with plastic case inner and the carton outer |
Delivery Time: | within 3-5days after the goods are paid. |
Payment Terms: | TT |
Supply Ability: | 10000 Per Year |
High Light: | robotic total station,manual total station |
---|

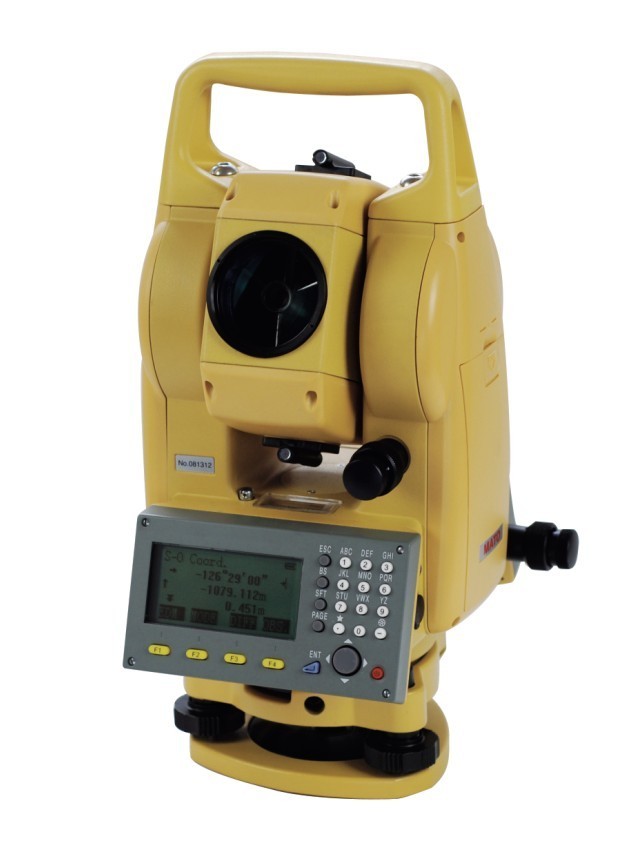

MATO MTS600 series Total Station
MODEL |
MTS-602R |
MTS-602L |
MTS-605L |
Telescope |
|||
Image |
Erect |
||
Magnification |
30X |
||
Effective Aperture |
45mm |
||
Resolving Power |
4" |
||
Field Of View |
1°30' |
||
Minimum Focus |
1.5m |
||
Distance Measurement(under Fair Weather Condition)PRISMLESS : 500 meter |
|||
Range 1P |
5km |
3km |
3km |
3P |
3km |
2.5km |
|
Accuracy |
2mm+2ppmxD |
||
Minimum Count |
1mm |
||
Distance Unit |
ft.Or m selectable |
||
Measuring Time |
|||
Fine |
1.8sec.(first time2.5sec.) |
||
Tracking |
0.4 Sec. |
||
Maximum display |
999999.999m |
||
Atmospheric Correction |
|||
Temperature |
C or F |
||
Atmospheric Pressure |
hPa/mmH/inHg |
||
Atmospheric Deflection & |
|||
Earth Curvature Correction |
k=0.14/0.20/0 |
||
Prism Constant |
0 mm / 30 mm |
||
Angle Measurement |
|||
Measurement Method |
Incremental Photoelectronic Encoder |
||
Detection Method |
|||
Horizontal |
Dual |
||
Vertical |
Dual |
||
Accuracy |
2" |
2" |
5" |
Minimum Readout |
1"and5" |
1"and5" |
5"and10" |
Sensitivity of Vials |
|||
Plate Vial |
30"/2mm |
||
Circular Vial |
8'/2mm |
||
Vertical Compensation |
Available |
||
Type |
Liquid-electric detection/Plate level |
||
Compensation Range |
+/-3' |
||
Resolution |
1" |
||
Optical Plummet |
|||
Image |
Erect |
||
Magnification |
3X |
||
Focus Rang |
0.5m-infinity |
||
Display |
Double Side, LCD, Four-line Display |
||
Data Port |
RS-232 |
