Product Description

New Standard Reflectorless Total Stations Offering Enhanced EDM Performance and Increased Data Collection Capability
Industry-Leading Technologies to Maximize Work Efficiency
Topcon’s GPT-102 R series total stations offer an array of new features that include the enhanced non-prism measurement performance, improved user interface, and increased onboard data collection capability while maintaining field-proven durability and portability. The GPT-102R provides superior performance and quality backed by Topcon’s industry-leading technologies.
Features:

Extended Non-Prism Measurement Range up to 1,310ft. (350m)
Class I/1M Safe Pulse Laser EDM
Laser Pointer for NP Measurement and Layout
24-key Alphanumeric Keyboard
TopField and Road Onboard Software
Point Guide for Stakeout/Layout
Toughest IP66 Dust and Water Protection

Extended Non-Prism Range with Class I/1M Safe Laser
A refinement of the Non-Prism EDM in the GPT-102R allows measuring distances up to 1,310ft. (400m) range without a reflector. Incorporating Topcon’s advanced time-of-flight (pulse) technology, the GPT-102R offers both of superior performance and maximum safety with its Class I (FDA) / Class 1M (IEC) safe laser. This allows safe use even in areas with heavy traffic.
TopField / Road Software with Alphanumeric Keyboard
The onboard “TopField” and “Road” software dramatically increases efficiency in topo data collection, construction layout, as well as road stakeout tasks. The 24-key alphanumeric keyboard allows for quick inputting of point numbers, codes, attributes, and other necessary data.
Specifications

TELESCOPE
Length	150mm (5.9 in.)
Objective Lens Dia.	45mm (1.77 in.), EDM 50mm (1.97 in.)
Magnification	30x
Image	Erect
Field of View	1°30'
Resolving Power	2.8"
Minimum Focus Distance	1.3m (4.27 ft.)
DISTANCE MEASUREMENT - PRISM MODE
Measuring Range	Mini prism 1,000m (3,280 ft.) 1 prism 3,000m (9,900 ft.)
Measuring Accuracy	±(2mm + 2ppm x D)m.s.e.
Measuring time	Fine mode 1mm (0.005 ft.) 1.1s (Initial 2.5s) Fine mode 0.2mm (0.001 ft.) 1.5s (Initial 3.0s) Coarse mode 1mm/10mm (0.005/0.02 ft.) 0.8s (Initital 2.5s)
DISTANCE MEASUREMENT - NON-PRISM MODE
Measuring Range	Condition I*1: 1.5m to 350m (5 ft. to 1,150 ft.)
Measuring Accuracy	±(3mm + 2ppm x D)m.s.e.
Measuring time	Fine mode 1mm (0.005 ft.) 1.7s (Initial 3.0s) Fine mode 0.2mm (0.001 ft.) 2.6s (Initial 3.5s) Coarse mode 1mm/10mm (0.005/0.02 ft.) 1.0s (Initital 2.0s)
ANGLE MEASUREMENT
Method	Absolute Reading

Minimum Reading	GPT-102R 1" / 5" (0.2mgon/1mgon)
Accuracy	GPT-102R 2" (0.6mgon)
Diameter of Circle	71mm (2.8 in.)
DISPLAY/KEYBOARD
Display	Graphics LCD 160 x 64 Dots with backlight, 20 characters x 4 lines
Keyboard	Alphanumeric, 24 keys
TILT CORRECTION
Tilt Sensor	GPT-102R Single axis
Method	Liquid type
Compensating Range	±3'
Correction Unit	1" (0.1mgon)
OTHERS
Laser Pointer	Red Laser Diode, Wavelength 690nm
Point Guide	Two Orange LED

Internal Memory	Max. 24,000 points
Interface	RS-232C
Instrument Height	176mm (6.93in.)
Laser Class	Class I/1M (EDM), Class 2 (Laser Pointer/Laser Plummet)
Circular Level Sensitivity	10'/2mm
Plate Level Sensitivity	GPT-102R 30"/2mm
Dimension	336(H) x 184(W) x 172(L) mm

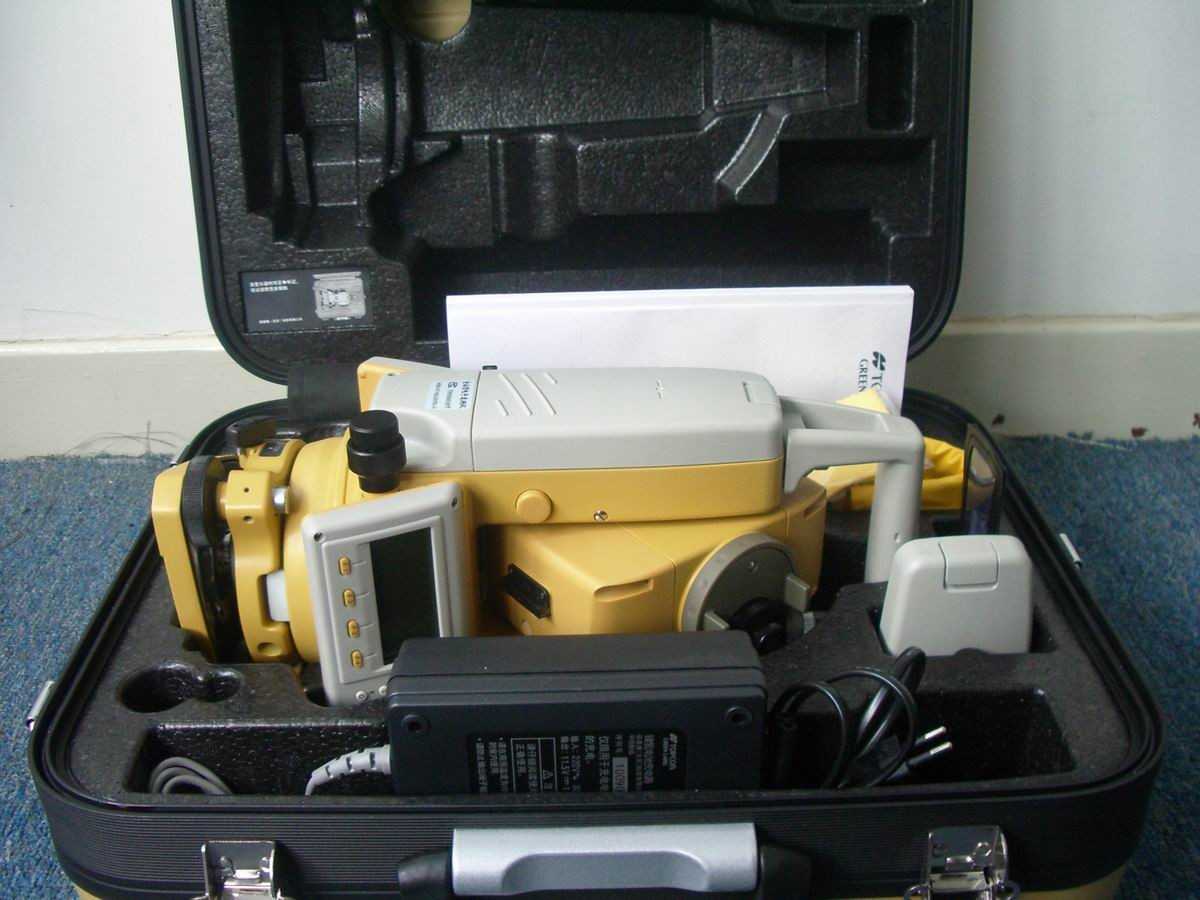

Weight	Instrument (with battery) 5.3kg (11.6 lbs) Plastic Carrying Case 3.4kg (7.5 lbs)
Dust and Water Protection (IEC 60529)	IP66 (with BT-52QA installed)
Operating Temperature	-20°C to +50°C (-4°F to +122°F)
Battery BT-52QA Operating Time	Distance and Angle Measurement-About 5.0 hrs / About 4.2 hrs w/Bluetooth connection Angle Measurement Only-About 45 hrs

Tag:

Place of Origin:	China
Brand Name:	Topcon

Minimum Order Quantity:	1pc
Price:	usd4800
Packaging Details:	in standard exporting packing way
Delivery Time:	within 3-5 work days after the goods are paid .
Payment Terms:	TT ,Western Union ,Paypay,LC
Supply Ability:	10000 Per Year

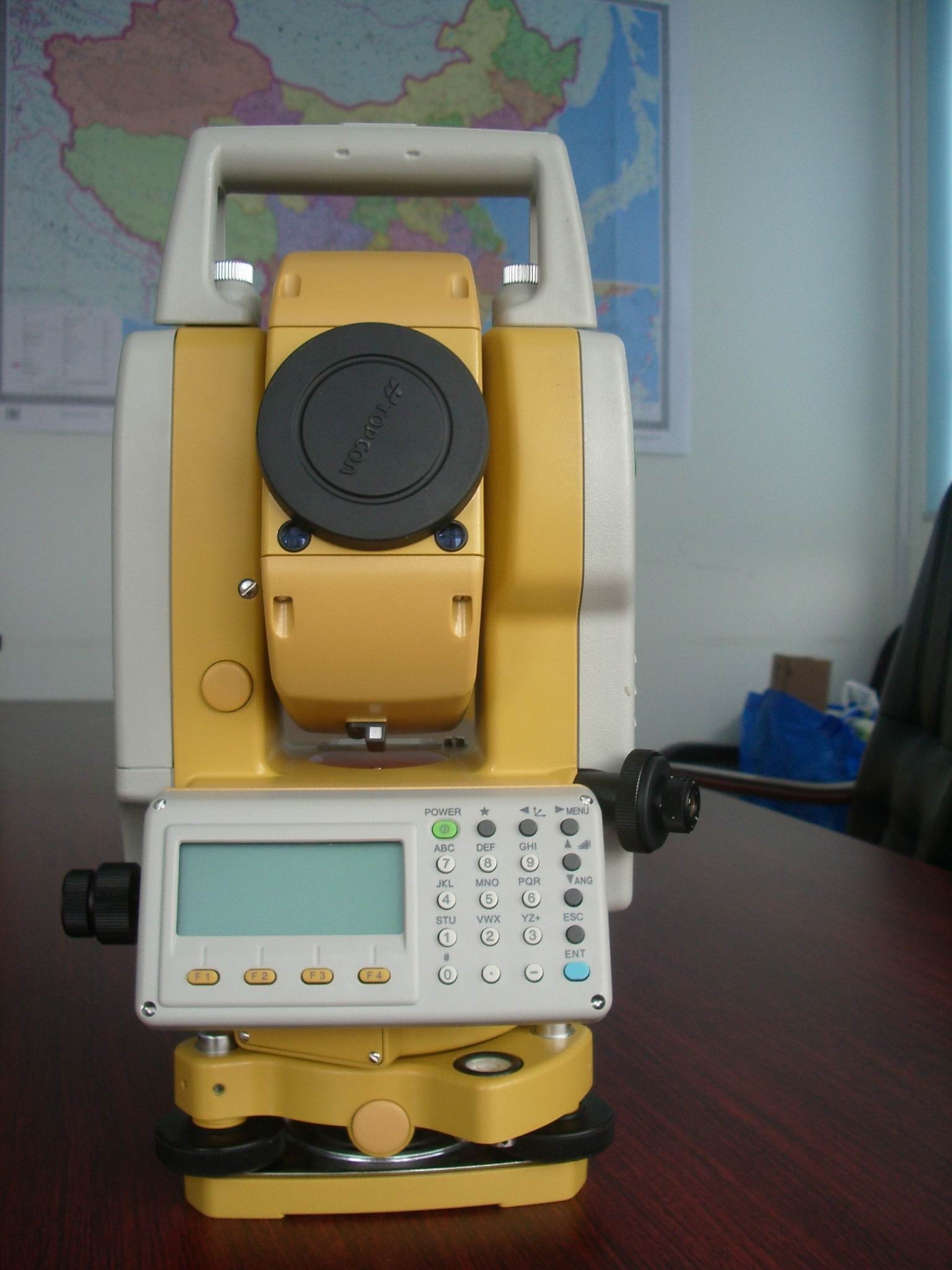

Topcon Total Station GPT102R Reflectorless Total Station
