Topcon GTS252N GTS255N Total Station

Basic Information

Place of Origin:	China
Brand Name:	Topcon
Model Number:	GTS252N GTS252N

Minimum Order Quantity:	1pc
Price:	usd3400- usd3700
Packaging Details:	with plastic case inner and the carton outer
Delivery Time:	within 3-5days after the goods are paid.
Payment Terms:	TT
Supply Ability:	10000 Per Year

Get Best Price Contact Now

Detail Information

Highlight:

robotic total station

manual total station

Product Description

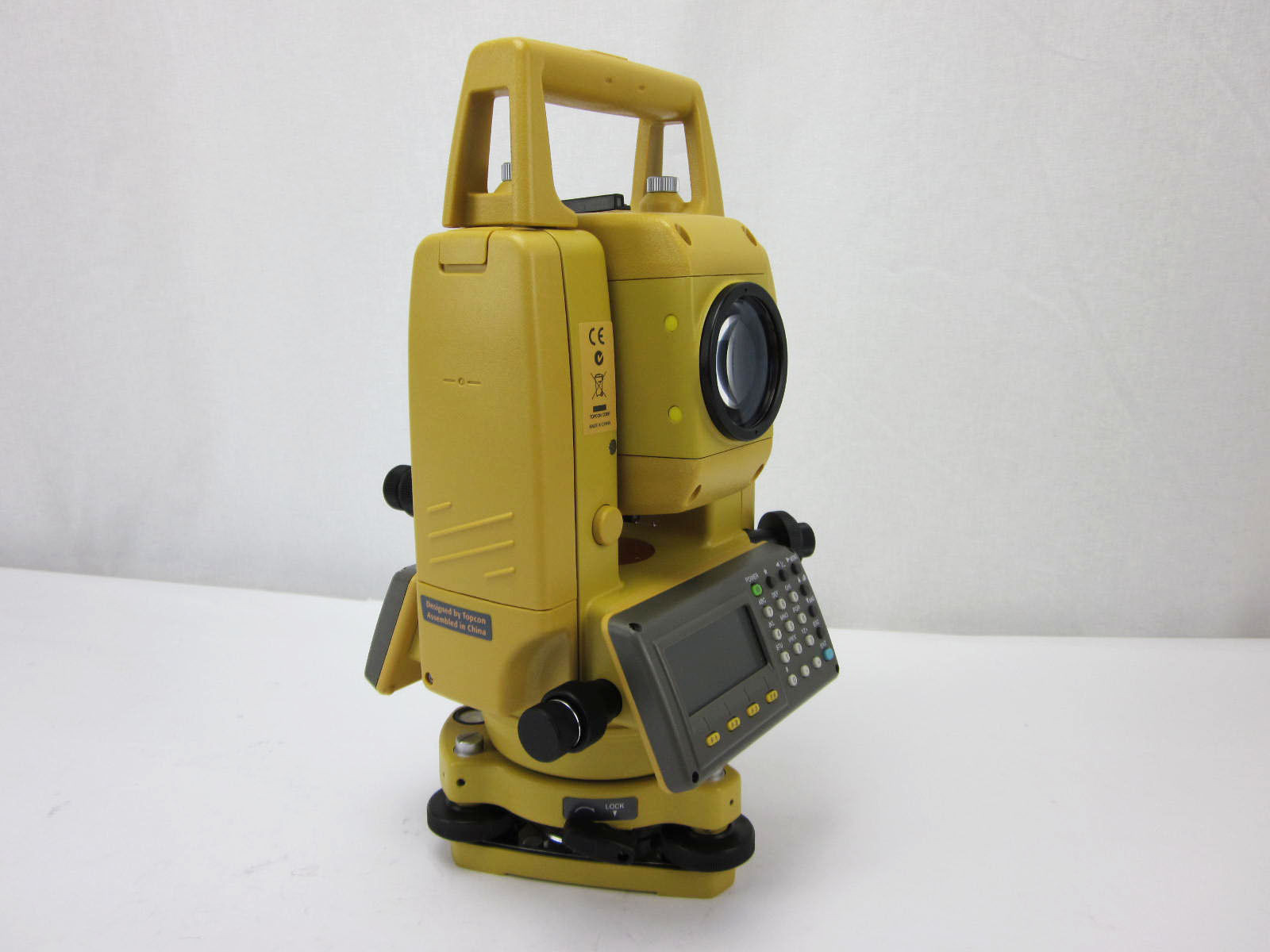

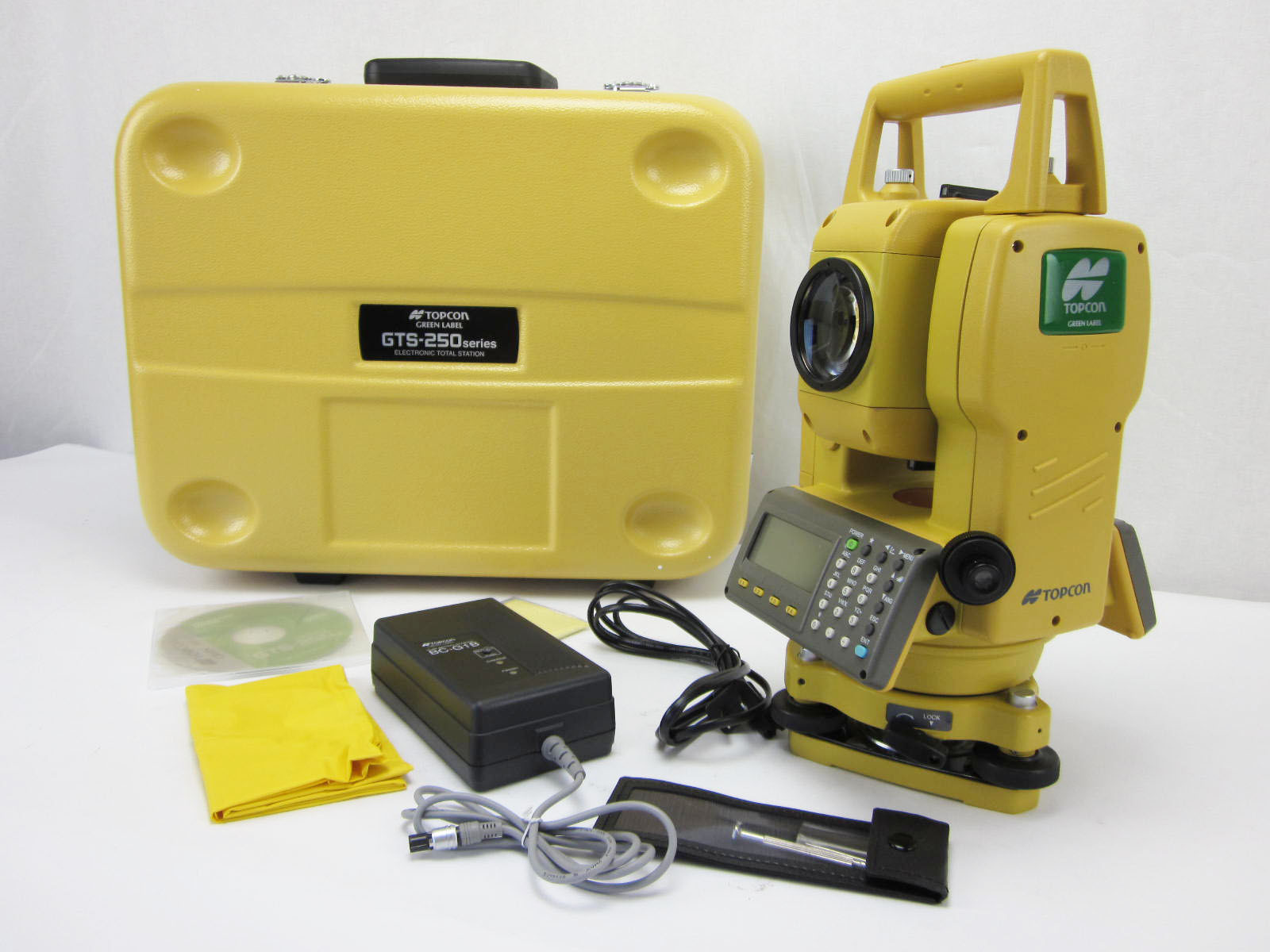

TOPCON Total Station GTS-250 Series

Topcon GTS252N GTS255N Total Station 0

The GTS-250 series combines Topcon's tradition of rugged field-ready quality and accuracy and places it in an economical, compact design perfect for everyday measuring and

positioning applications.

Meeting or exceeding the precision and durability of most competitive high end models, Topcon's GTS-250 provides construction professionals and surveyors performing construction layout with a dedicated solution.

The on-board software makes it easy to rapidly shoot points for quick adjustments or resets. For more advanced layout tasks

use your GTS-250 with any of Topcon's field controllers running MAGNET™ software.

Economical, value priced measuring solution
Rugged, durable, water resistant design (IP54)
Two accuracies from which to choose: 2" and 5"
Dual-axis compensation
Onboard programs and 24,000 point data storage

Ideal as a construction stakeout total station

Specifications:

Telescope	150 Millimeters
Objective Lens Diameter	45mm (EDM:50mm)
Magnification	30x
Image	Erect
Field of View	1°30
Min. Focus Distance	1.3 meters
Resolve Power	3 "
Measurement Range
1 Prism	6560 ft, 2000 meters
3 Prism	8856 ft, 2700 meters
Measuring Accuracy
Prism Mode	±(2mm + 2ppm x D)m.s.e. fine, N/A
Measurement Time	1mm: 1.2sec. (Initial 4sec.) fine, 0.2sec.
	(Initial 3sec.) coarse, N/A
Angle Measurement
Method	Absolute Reading
Detection	2 horizontal, 1 vertical
Minimum reading	5”/1”, 1/5 mgon
Tilt Correction
Type	Automatic Vertical and Horizontal compensator
Method	Liquid surface reflective profile sensor reading type
Compensating Range	±3'
Correction Unit	1 arc sec, N/A
Computer Unit

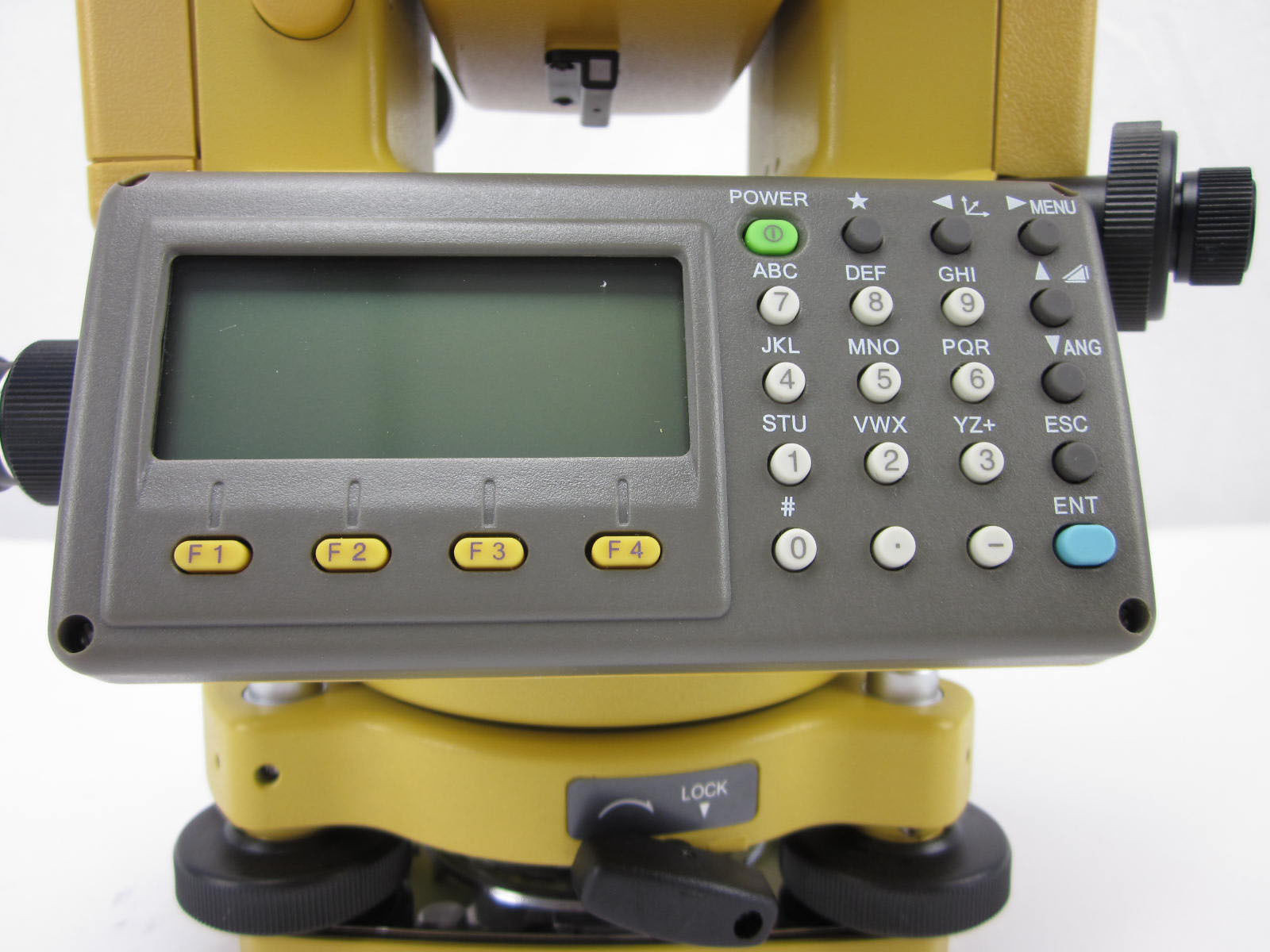

Display	2 screen, dot matrix graphic LCD display
Power
Approximate battery life	9 hours including distance measurement , 40 Angle measurement only
Durability
Protection against water and dust	IP54
Temperature	-20 to 50 degrees C (-4 to 122 degree F)
Weight	Instrument 4.9KG (10.8lb)
