New Topcon Total Station Gpt3502ln Total Station with Yellow Color

Basic Information
Place of Origin: Singapore
Brand Name: TOPCON
Certification: CE
Model Number: GPT3502LN
Minimum Order Quantity: 1
Price: USD 8150 /PC
Packaging Details: With Standard Export Packing Ways. Internal with Hard case and external with Carton.
Delivery Time: 5-8 works day Specific time needs to consult
Payment Terms: Western Union, T/T
Detail Information
Brand Name: Topcon Brand Model Number: GPT3502LN
Non-prism: 2000m
High Light:

reflectorless total station

,

robotic total station


Product Description

Detail Specification:



TOPCON GPT3502LN REFLECTORLESS TOTAL STATION

​​

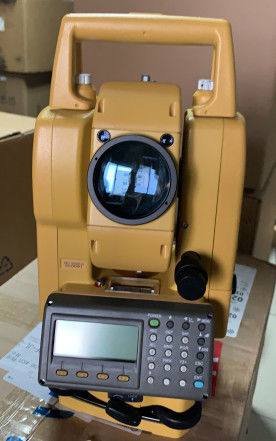

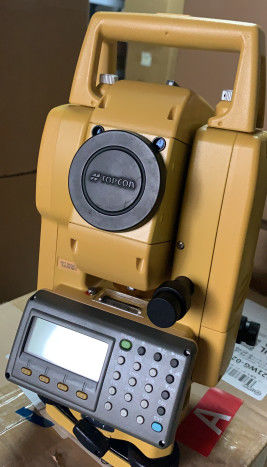

New Topcon Total Station Gpt3502ln Total Station with Yellow Color 0



GPT3502Ln Total Station with 2000m Reflectorless Total Station


roduct Introduction
Class1 Safe Pulse Laser EDM
Laser Pointer for Reflectorless Measurement and Layout
Point Guide for Stakeout/Layout
24-Key Alphanumeric Keyboard
Versatile On board Applications Including Road
Rugged IP66 Dust and Water Protection
Powerful 2,000m Reflectorless EDM
A refinement of GPT3502Ln Total Station advanced time-of-flight (pulse) EDM technology in the GPT-3500 allows measuring distances up to 2,000m (6,550 ft.) range without a reflector.
This wide range reflectorless capability enables quick and efficient measuring works in the large area. Also, it increases personal safety without approaching dangerous surface.
Reflectorless Measuring for Any Targets
Powerful reflectorless measuring capability even for narrow object such as power line or tower frame of power line.
Also, it can measure low reflection target like road and ground surface, wood, coal, and any dark color materials.
TopField / Road Software with Alphanumeric Keyboard
The on board "TopField" and "Road" software dramatically increases efficiency in topo data collection, construction layout, as well as road stakeout tasks.
The 24-key alphanumeric keyboard allows for quick inputting of point numbers, codes, attributes, and other necessary data.

Main Parameter


GPT3502
Ln/lnw
GPT3505
Ln/lnw
Distance Measurement
Measuring Range
Mini prism 1000m
1 prism 3000m
Measurement Accuracy Fine:±(2mm+2ppmxD)m.s.e.
Measuring Time Fine mode 1mm:approx.1.2sec.
Non-Prism Mode(Diffusing-surface)
Measuring Range 1.5m to 250m
Measurement Accuracy Fine:±(5mm)m.s.e.
Measuring Time Fine mode 1mm:approx.1.2sec.
