New Sanding Total Station Sts772r8l Sanding Total Station with green color

Basic Information
Place of Origin: China
Brand Name: Sanding
Certification: CE
Model Number: STS772R8L
Minimum Order Quantity: 1PC
Packaging Details: With Standard Export Packing Ways
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 PCS per year
Detail Information
Color: Green Product Name: Sanding STS772R8L
Warranty Time: One Year
High Light:

reflectorless total station

,

robotic total station


Product Description

Detail Specification:



Sanding STS772R8L Total Station

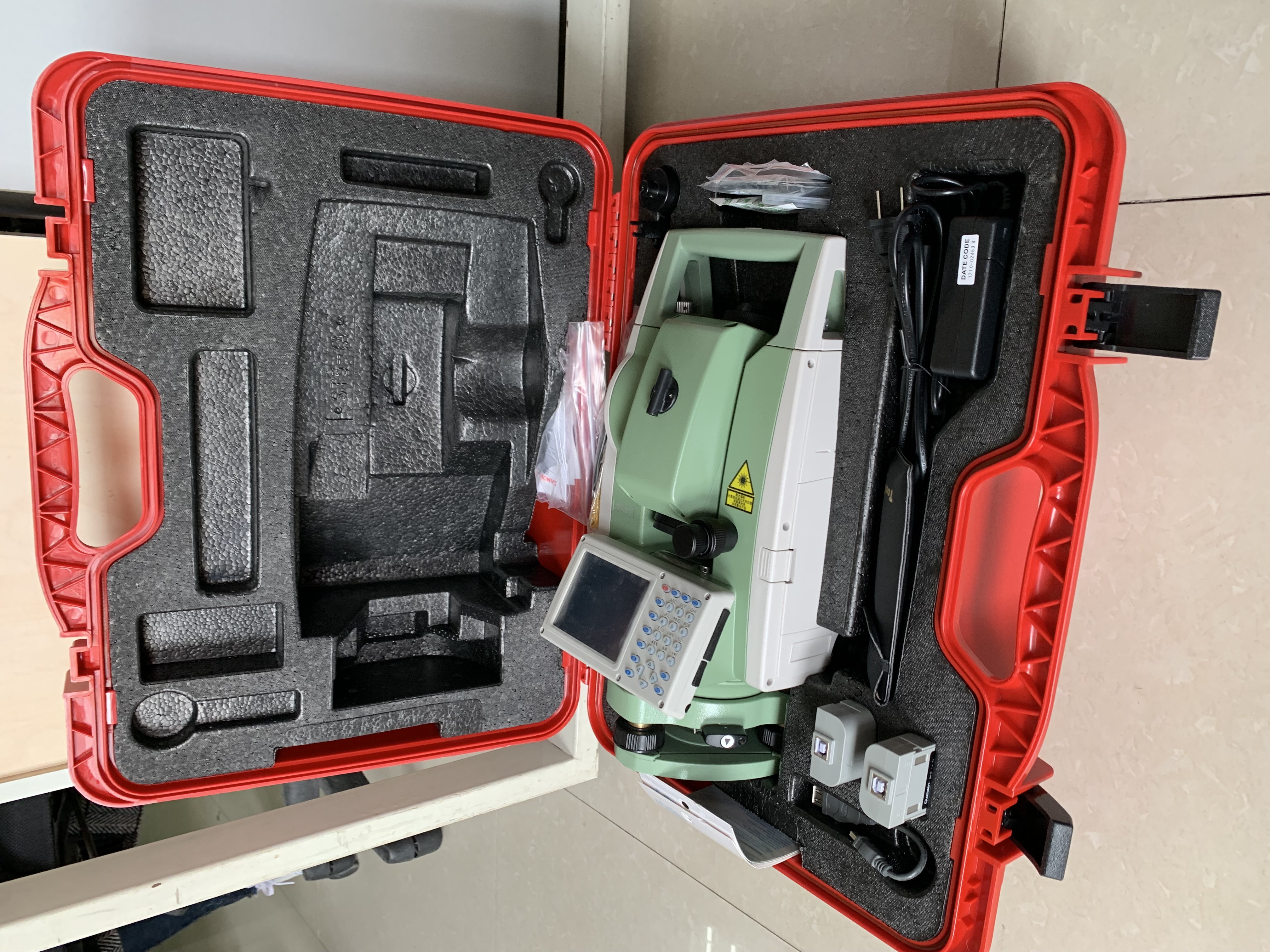

New Sanding Total Station Sts772r8l Sanding Total Station with green color 0



Product Description


STS-772R8L

STS-775R8L

DISTANCE MEASUREMENT(GOOD WEATHER)

single prism

5.0km

5.0km

triple prism

8km-10km

8km-10km

reflectorless

800m

accuracy

with prism: 2mm+2ppm; without prism: 3mm+2ppm

reading

max: 99999999.999 min: 0.1mm

measuring time

fine: 0.3s; tracking: 0.1s

atmospheric refraction & earth curvation correction

manual input, auto correction

prism constant

manual input, auto correction

ANGLE MEASUREMENT

measuring method

absolute encoding

diameter of raster disk

79mm

minimum reading

1"/5" selectable

accuracy

2"

5"

detection method

horizontal: dual vertical: dual

TELESCOPE


erect

tube length

154mm

effective aperture

Telescope: 45mm; EDM: 50mm

magnification

30X

field of view

1°30'

resolviong power

3"

min. focusing distance

1m

AUTO VERTICAL COMPENSATOR

system

2-axis liquid-electric

working range

±3'

accuracy

1"

LEVEL

plate vial

30"/2mm

circular vial

8'/2mm

OPTICAL PLUMMET


erect

magnification

3X

focusing range

0.5m ~ ∞

field of view


Laser plummet

optional

DISPLAY

type

3.5 inches LCD, 640X480 touch screen
Windows CE6.0 operation system

ON-BOARD BATTERY

type

rechargeable Lithium battery

voltage

DC 7.4V, 3100mAh

operating time

16 hours

DATA STORAGE

Internal memory

64M

SD card

Max. 32G

Communication port

RS-232 port(6 pin), Mini USB, SD card

DIMENSION & WEIGHT

dimension

200 X 190 X 350mm

weight

6.0kg



We can use the different international express company, usually, our first choice is DHL. if you have specified requirement , please inform us before the order.

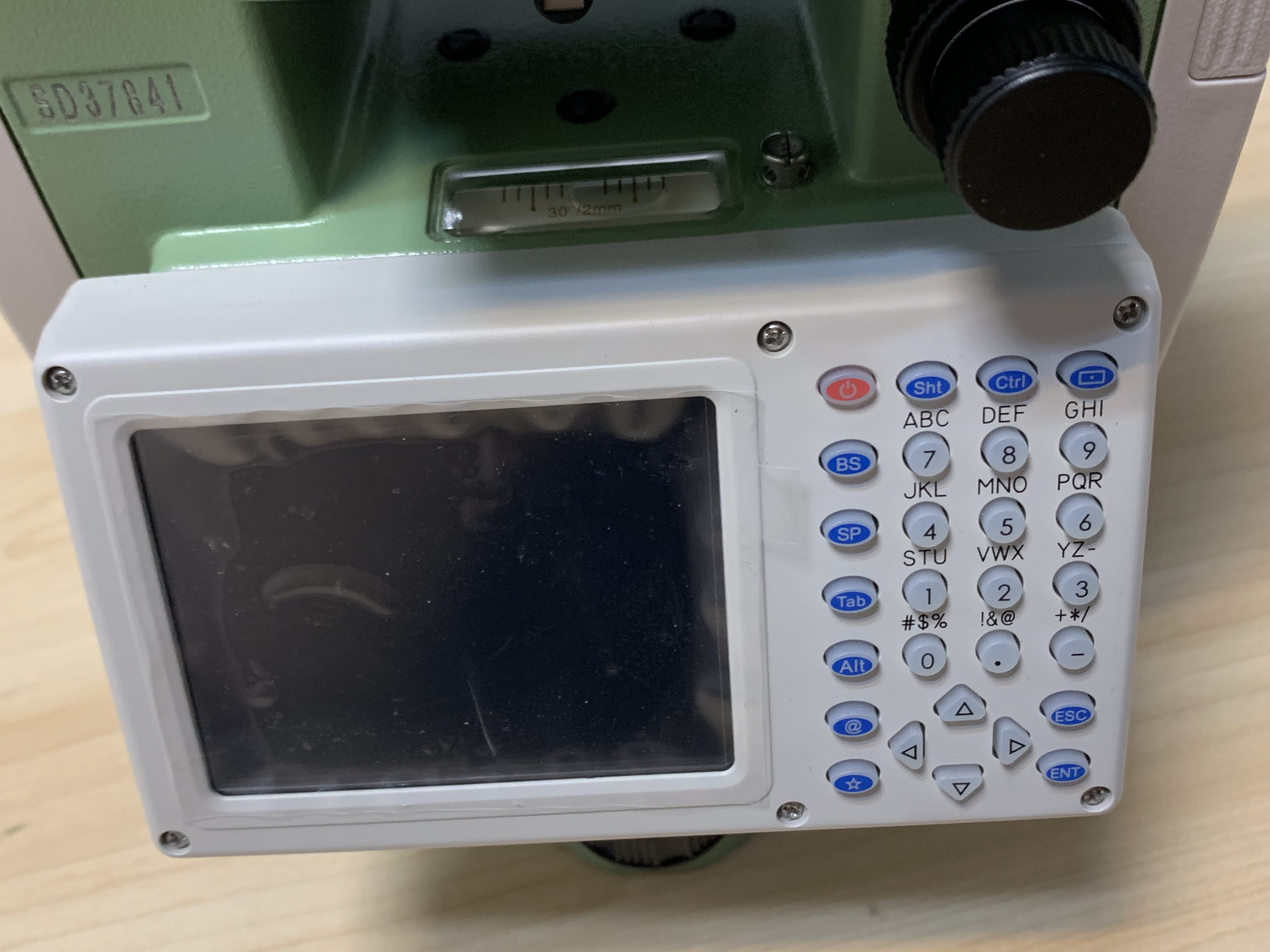

New Sanding Total Station Sts772r8l Sanding Total Station with green color 1



Our Services

your inquiry will be replied within 24 hours, we welcome your email and call at any time.

our products are original and 100% new. and they will be carefully checked before we ship them out.

we provide one year quality warranty, within one year since you bought the products from us, you will get our technology support.
