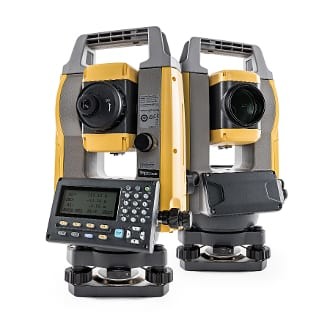

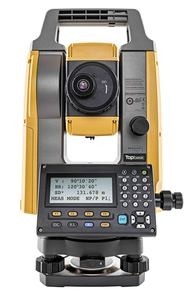

500M Reflectoless GM52 Topcon Total Station For Surveying Instrument

Basic Information
Place of Origin: JAPAN
Brand Name: Topcon
Certification: CE
Model Number: GM52
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: CARTON
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 SET PER MONTH
Detail Information
PRODUCTS NAME: TOTAL STATION Place Of Origin: Japan
Brand Name: TOPCON Model Number: GM52
Interface: Serial RS-232C, USB2.0 Operating System: Linux
High Light:

GM52 Topcon Total Station

,

500M reflectoless Topcon Total Station

,

USB2.0 gm52 total station


Product Description

2021 New Model TOPCON GM52 500M reflectoless Topcon Total Station for surveying instrument Japan

Fast and Powerful Reflectorless EDM
We perform the tough environmental tests to
ensure long-term operation even under the
rough site environments.
GM Series total stations are thoroughly
inspected with dust-proof and water-proof test
chambers.
In addition, the various tests against vibration,
drop, temperature, and humidity were
successfully passed to achieve the best
environmental spec. Also, the measuring
distance accuracy test on base line and the
instrument leveling and angle accuracy test
and adjustment by collimator system ensure
your satisfaction on GM Series product quality.
• Fast and accurate pinpointing with phase shift technology.
• Fast distance measurement of 0.9s regardless of object.
• Minimum reflectorless measuring distance - just 30cm.
• Improved collimation with super-bright pointer.
• Smaller EDM beam spot size for minimal distance
measuring error.
• Dependable measuring even at shallow incidence angles.
• Ensures accurate reflective sheet distance measurement.


Magnification / Resolving power 30x / 2.5"
Minimum Display 1”/5” (0.0002 / 0.001gon, 0.005 / 0.02mil)
Accuracy (ISO 17123-3:2001) 2"
Dual-axis compensator Dual-axis liquid tilt sensor, working range: ±6'
Collimation compensation On/Off (selectable)
Laser output*1 Reflectorless mode : Class 3R / Prism/sheet mode : Class 1
Measuring range Reflectorless 0.3 to 500m (1,640ft.)
Mini prism 1.3 to 500m (4.3 to 1,640ft.)
One prism 1.3 to 4,000m (4.3 to 13,320ft)
Prism (1.5 + 2ppm x D) mm



500M Reflectoless GM52 Topcon Total Station For Surveying Instrument 0
