IP66 Reflectorless Total Station EDM Beam Topcon GM101

Basic Information
Place of Origin: Japan
Brand Name: Topcon
Certification: CE
Model Number: GM100
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Within Standard Exported Packing Way
Supply Ability: 1000 pieces per year
Detail Information
Brand: Topcon GM100 Series Control Panel Location: On Both Faces
Country: Made In Japan Name: Topcon GM101
Magnification / Resolving Power: 30x / 2.5" Dust And Water Protection / Operating Temperature: IP66 (IEC 60529:2001) / -20 To +60ºC (-4 To +140ºF)
Laser-pointer: Coaxial Red Laser Using EDM Beam Guide Light: Green LED (524nm) And Red LED (626nm), Operating Range: 1.3 To 150m (4.3 To 490ft.)
Levels Graphic: 6’ (Inner Circle Operating Time (20ºC)*: BDC70: Approx. 28hours
Operating Time (20ºC): BDC70: Approx. 28hours Minimum Display: 1"/5" (0.0002 / 0.001gon, 0.005 / 0.02mil)
High Light:

Topcon GM101 Total Station Machine

,

IP66 Reflectorless Total Station

,

EDM Beam Total Station Instrument


Product Description



Topcon GM105/ GM101 /GM103 model reflectorless total station GM100 series:

Key Features:

  • 1,000 m non-prism range
  • 6,000 m prism range
  • “Best-in-class” 1″angle accuracy
  • Up to 32 GB storage
  • Waterproof/dust-proof IP66
  • Environmentally protected
  • Compatible with industry standard thumb drives
  • 21 hour battery life in normal mode

Description

This powerful, cost efficient Manual Total Station was designed from the ground up to deliver the latest technological advantages in a small, sleek design. It features an ultra-powerful EDM, best-in-class angle accuracy encoder system to provide the accuracy, speed, and endurance needed on the most demanding job sites. Plus, with a rugged housing and extented battery-life you’ll be able to handle even the toughest conditions.

The GM-105 Manual Total Station was designed from the ground up to deliver the latest technological advantages in a small, sleek design. It’s rugged waterproof/dustproof magnesium-alloy housing encases an ultra-powerful 6,000m prism range 1.5mm accuracy EDM, Best-in-class 1″ angle accuracy angle encoder system, and 28 hour battery-life power supply. The GM-100 also features dual axis compensation, 32 GB USB, Bluetooth to 10m and TSshield™ telematics for ultimate security and investment protection.

Designed to deliver the latest technological advantages in a sleek design, each GM-100 total station is equipped with a best-in-class EDM. The total station measures up to 5,000 meters to standard prisms (6,000 meters under good conditions) and up to 800 meters in reflectorless mode. Other features include a built-in laser plummet, dual-axis compensation, Bluetooth® connectivity, and a battery life of up to 28 hours. In addition to an internal memory of 50,000 points, the total station also features a USB 2.0 slot for up to 32GB of storage. TSshield™ technology provides ultimate security and maintenance capabilities for your total station thanks to a telematics-based multi-function communications module. If an activated total station is lost or stolen, just send a coded signal to the instrument and disable it – anywhere in the world. You can also access cloud-based Topcon servers for available software updates and firmware enhancements. Waterproof/dustproof IP66 design.

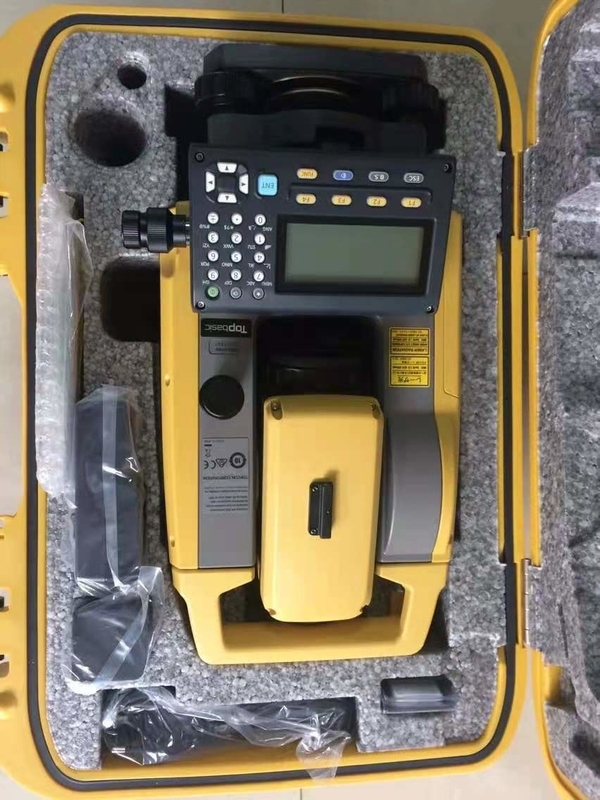

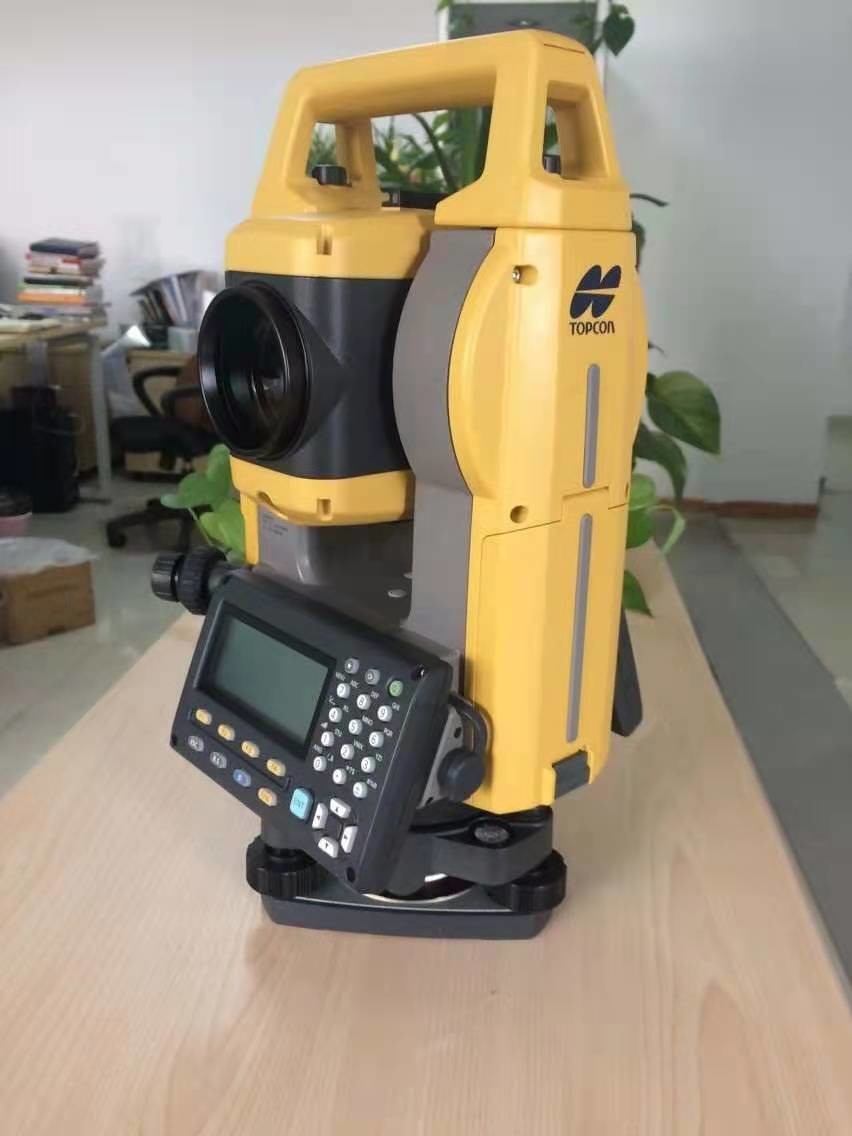

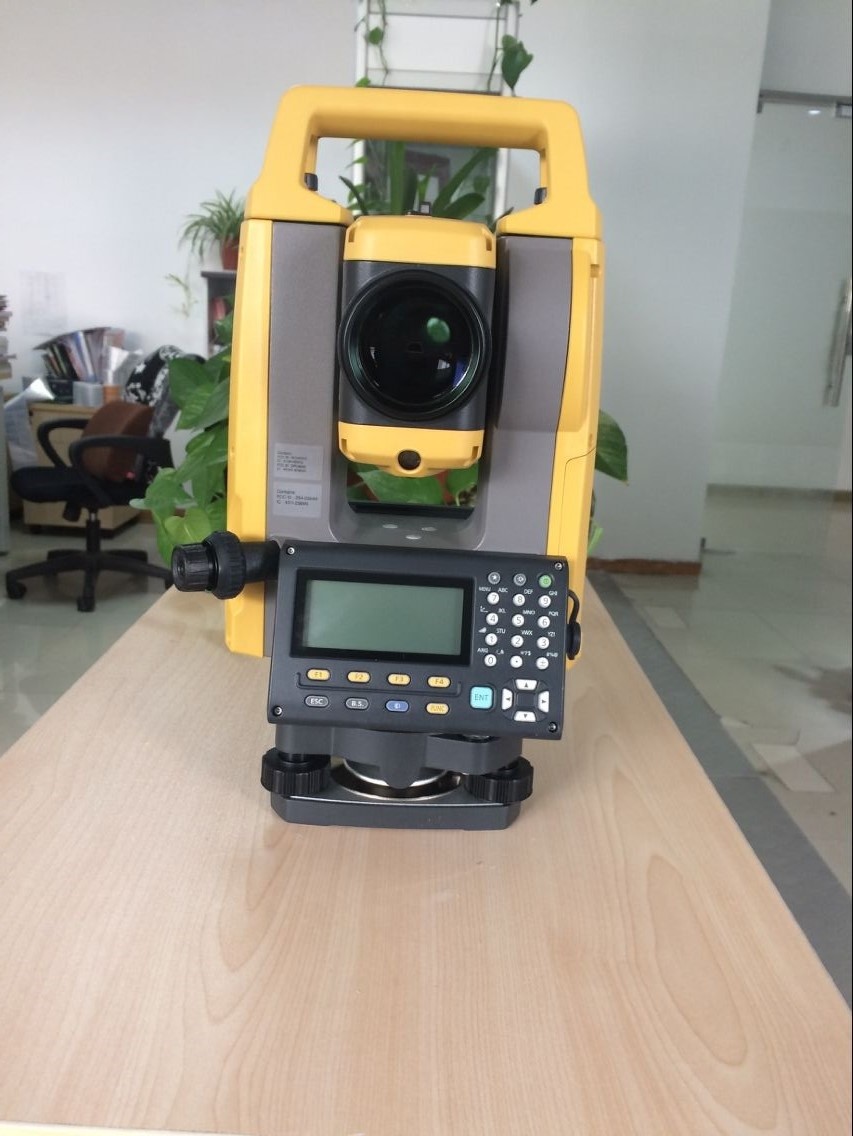

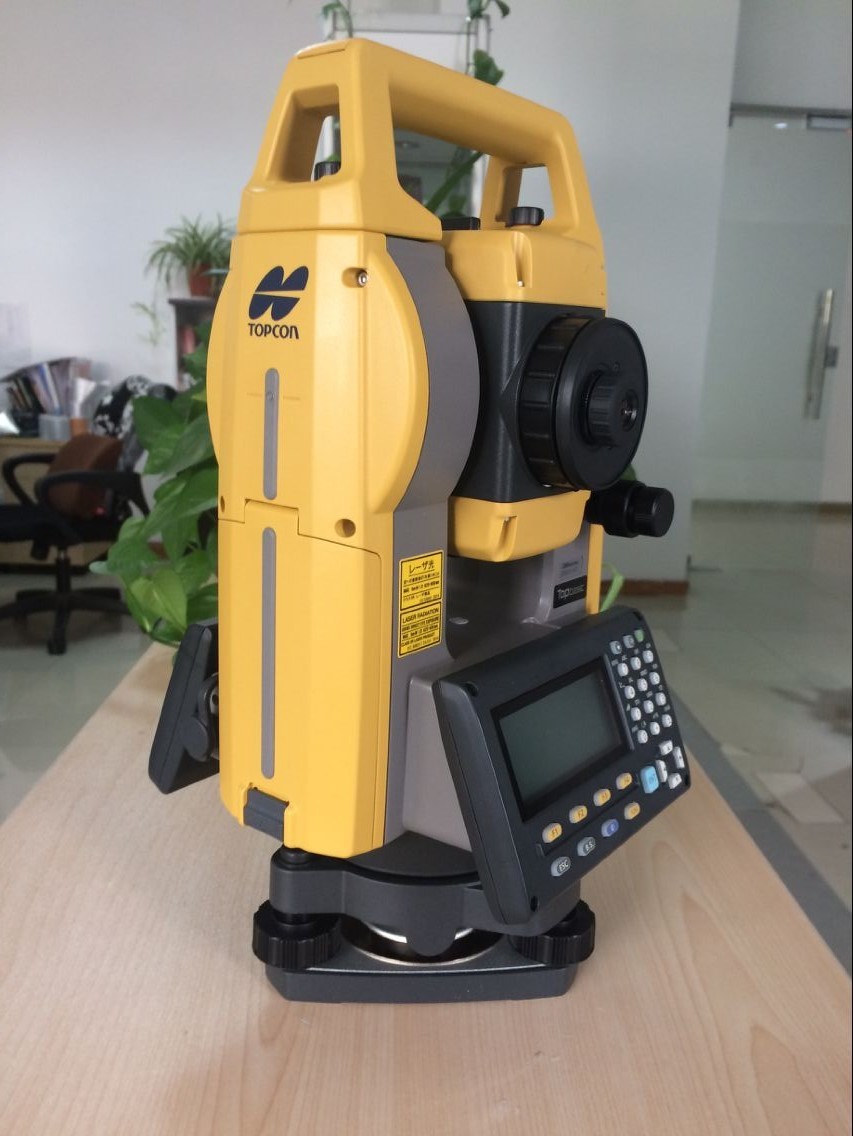

IP66 Reflectorless Total Station EDM Beam Topcon GM101 0
IP66 Reflectorless Total Station EDM Beam Topcon GM101 1
IP66 Reflectorless Total Station EDM Beam Topcon GM101 2
IP66 Reflectorless Total Station EDM Beam Topcon GM101 3IP66 Reflectorless Total Station EDM Beam Topcon GM101 4IP66 Reflectorless Total Station EDM Beam Topcon GM101 5
Model GM-series
Telescope
Magnification / Resolving power 30x / 2.5"
Others Length : 171mm (6.7in.), Objective aperture : 45mm (1.8in.) (48mm (1.9in.) for
EDM), Image: Erect, Field of view: 1°30' (26m/1,000m), Minimum focus: 1.3m (4.3ft.)
Reticle illumination: 5 brightness levels
Angle measurement
Minimum Display 1"/5" (0.0002 / 0.001gon, 0.005 / 0.02mil)
Accuracy (ISO 17123-3:2001) 5"
Dual-axis compensator / Dual-axis liquid tilt sensor, working range: ±6'
Collimation compensation On/Off (selectable)
Distance measurement
Laser output*1 Reflectorless mode : Class 3R / Prism/sheet mode : Class 1
Measuring range Reflectorless 0.3 to 800m (2,620ft.) / Under good conditions*4 : 1,000m (3,280ft.)
Reflective sheet RS90N-K: 1.3 to 500m (4.3 to 1,640ft.), RS50N-K: 1.3 to 300m (4.3 to 980ft.),
RS10N-K: 1.3 to 100m (4.3 to 320ft.)
Mini prism 1.3 to 500m (4.3 to 1,640ft.)
One prism 1.3 to 5,000m (4.3 to 16,400ft) / Under good conditions*4 : 6,000m (19,680ft.)
Minimum Display Fine / Rapid : 0.0001m (0.001ft. / 1/16 in.) / 0.001m (0.005ft. / 1/8 in.) (selectable)
Tracking / Road : 0.001m (0.005ft. / 1/8 in.) / 0.01m (0.02ft. / 1/2 in.) (selectable)
Accuracy*2 Reflectorless*3 (2 + 2ppm x D) mm
  Reflective sheet* (2 + 2ppm x D) mm
  Prism*7 (1.5 + 2ppm x D) mm
Measuring time* Fine 0.9s (initial 1.5s)
  Rapid 0.6s (initial 1.3s)
  Rapid 0.4s (initial 1.3s)
OS, Interface and Data management
Operating system Linux
Display / Keyboard Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / Alphanumeric keyboard / 28 keys with backlight
Control panel location On both faces
Trigger key Yes (right side)
Data storage Internal memory Approx. 50,000 points
  Plug-in memory device USB flash memory (max. 32GB)
Interface Serial RS-232C, USB2.0 (Type A for USB flash memory)
  Bluetooth modem Bluetooth Class 1.5, Operating range: up to 10m
General
Guide light Green LED (524nm) and Red LED (626nm), Operating range: 1.3 to 150m (4.3 to 490ft.)
Laser-pointer Coaxial red laser using EDM beam
Levels Graphic 6’ (Inner Circle
Circular level 10' / 2mm
Plummet Optical Magnification: 3x, Minimum focus: 0.5m (19.7in.) from tribrach bottom
  Laser (option) Red laser diode (635nm±10nm), Beam accuracy: <=1.0mm1.3m, Class 2 l aser product
Dust and water protection / Operating temperature   IP66 (IEC 60529:2001) / -20 to +60ºC (-4 to +140ºF)
Size with handle 183(W)x 181(D)x 348(H)mm
Instrument height 192.5mm from tribrach mounting surface
Weight with battery & tribrach Approx. 5.3kg (11.7lb)
Power supply
Battery Li-ion rechargeable battery BDC70
Operating time (20ºC)* BDC70: Approx. 28hours
Application program
On board •REM Measurement •3D Coordinate Measurement •Resection •Stake Out
•Topography Observation •Offset Measurement •Missing Line Measurement
• Intersection •Surface Area Calculation •Route Surveying •Point to Line
