Product Description:

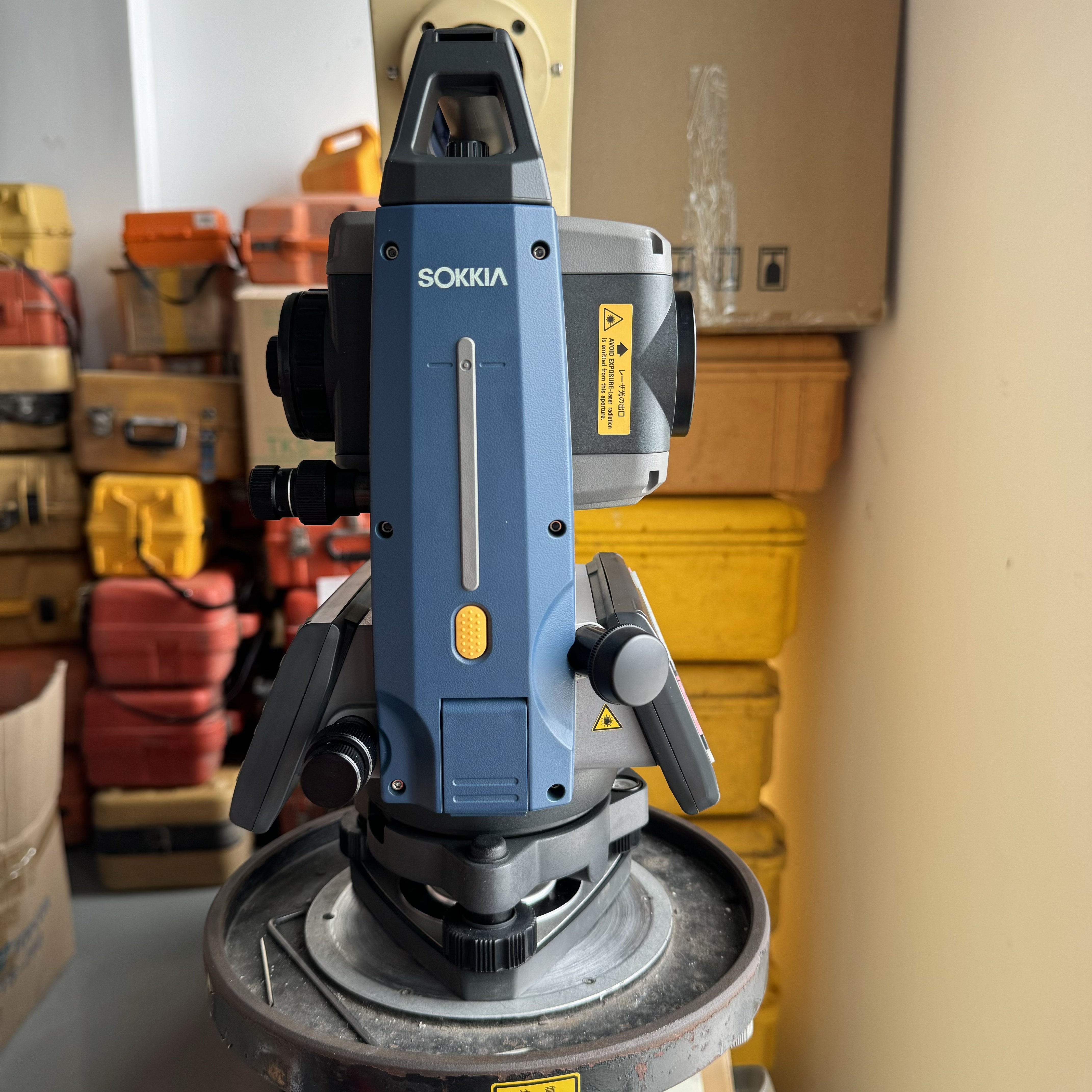

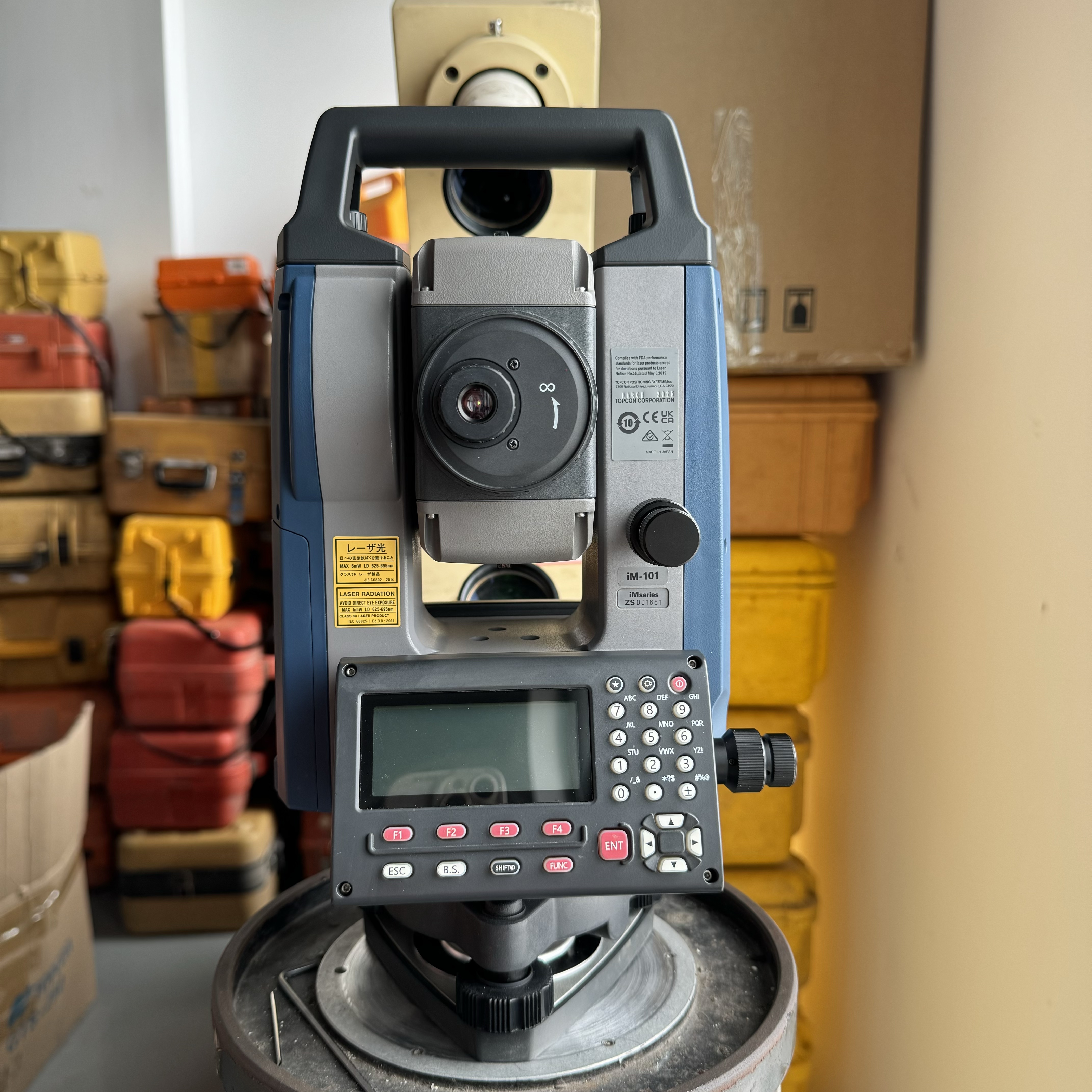

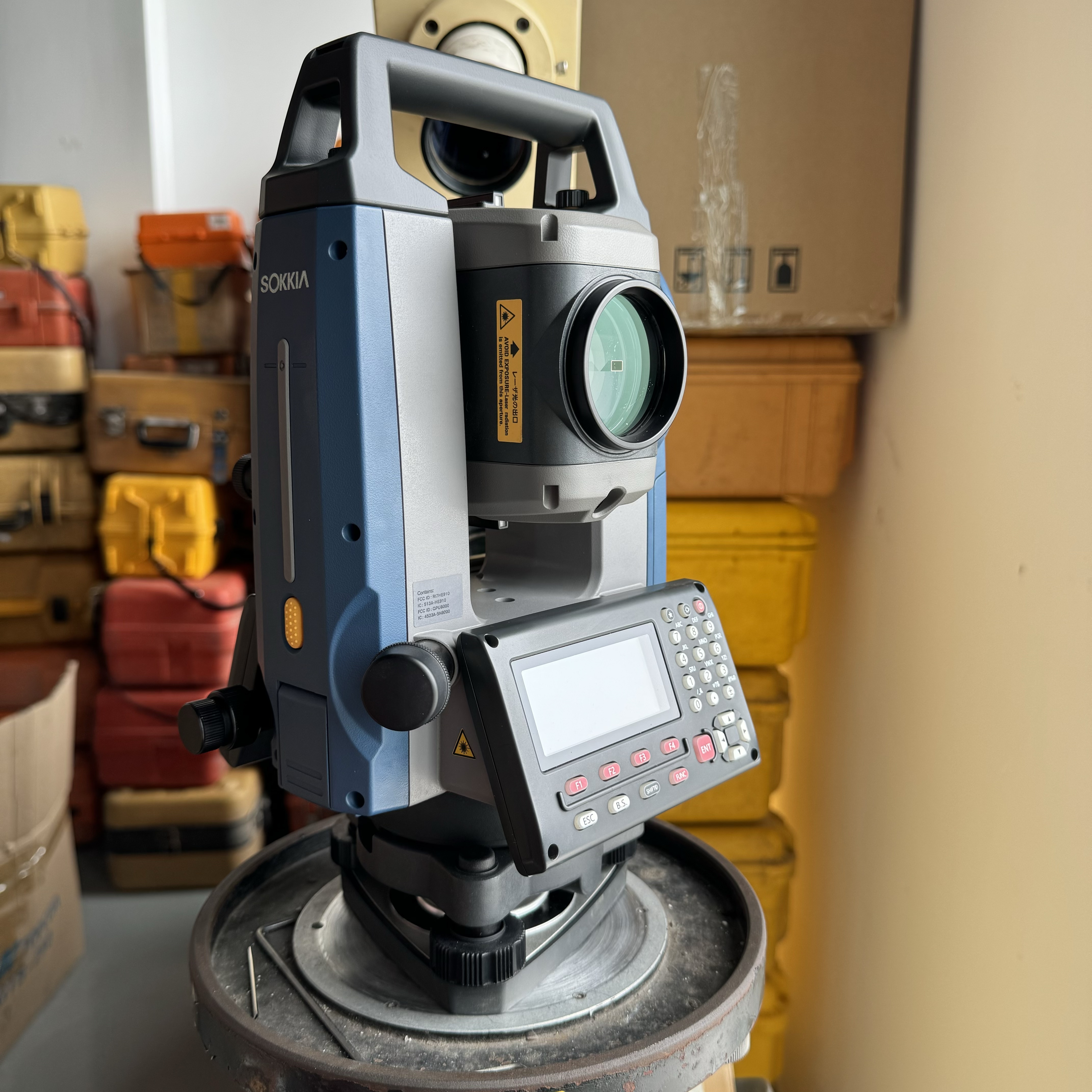

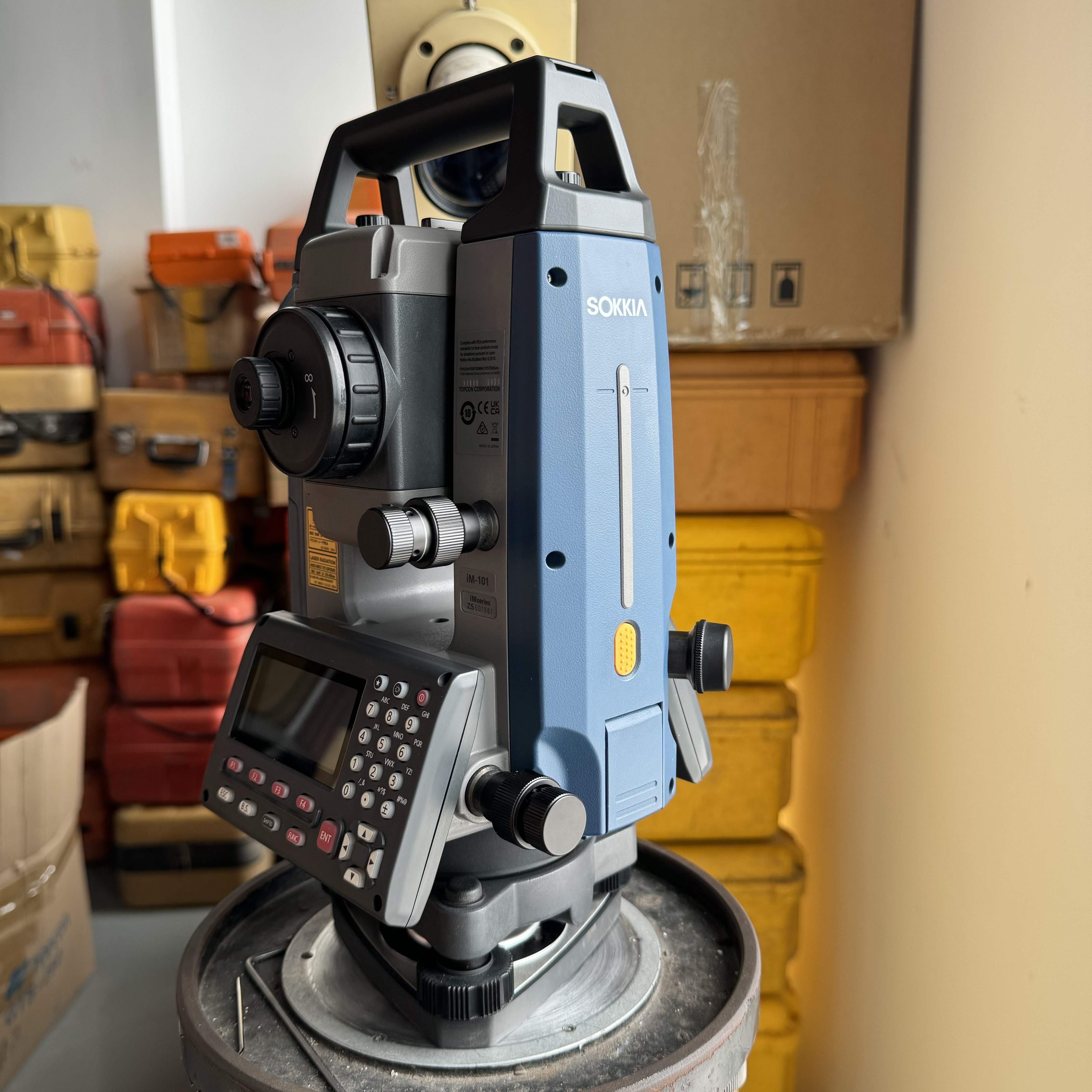

Sokkia iM101 / iM105 manual Total Station.
The Sokkia iM101 Manual Total Station (Intelligent Measurement Total Station) incorporates all the features you need at a cost-efficient price. Sokkia iM101 / iM105 Manual Total Station will handle your most demanding survey layout or as-built project needs.
Features:
Key Features of Sokkia IM105/Sokkkia IM101 Reflectorless Total Station
Experience the advanced capabilities of the Sokkia IM-105 Total Station / Sokkia IM-101 Total Station, including fast, accurate, and powerful Electronic Distance Measurement (EDM) technology. The device boasts best-in-class accuracy of up to 6,000 meters with a prism and up to 1000 meters in reflectorless mode. Additionally, enjoy a remarkable battery life of up to 28 hours.
The iM-100 series intelligent measurement station is poised to be your most reliable companion in the field, ready to tackle even the toughest of tasks with ease and precision.
Construction and Survey Application Software Reliable All-Round Total Station
- Cross-Sectional Survey: Utilize the MLM (Missing Line Measurement) program to calculate height differences between points and expedite measurements in reflectorless mode across a wide area.
- Stake Out: The Guide Light function facilitates quick navigation for the prism operator, streamlining stake out operations for enhanced efficiency.
- Elevation Stake: Simplify staking out tasks with 3D coordinates, eliminating the need for TS setup along straight lines for elevation stakes.
- Boundary and Cadastral Survey: Leverage the Area function to effortlessly calculate areas and employ offset calculation to determine the center point of structures like electric poles when direct measurement is not feasible.
- Coordinate Measurement: Manage 3D coordinate data efficiently, enabling various calculations for projects like roads and layouts. Enhance productivity significantly through enhanced 3D coordinate data management.
- Topographic Survey: Expedite topographical tasks with the trigger key for quick measurements while maintaining telescope view. The extended measuring range reduces instrument changes, optimizing working time.
Enhance your topography and stake out activities with these exceptional features that lead to faster and more efficient workflows.
Technical Parameters:
IoT Support System – Connect the Site and the Office
TSshield IoT Support System
- Remotely update the firmware via the internet
- Improves asset management by checking TS operating time
- Remote Lock secures the instrument from theft
- Monitor TS health status to enable quick reaction against any functionality issues
Superior Basic Feature will Expand Your Application
- Strong Environmental Spec
- The IP66 rating ensures durability for most any rough job site temperatures and conditions
Long Hours Operation
- One battery lasts up to 28 hours, or about four days of normal operation time
Bright Illumination Key for Nighttime Work
- Key buttons are illuminated to minimize mistakes
Reliable Large Volume Memory
- Internal memory has 50,000 points to record
- USB memory can be used up to 32GB
Japan Quality Products
We perform the tough environmental tests to ensure long-term operation even under the rough site environments. Sokkia iM 100 Series total stations are thoroughly inspected with dust-proof and water-proof test chambers.
In addition, the various tests against vibration, drop, temperature, and humidity were successfully passed to achieve the best environmental spec. Also, the measuring distance accuracy test on base line and the instrument leveling and angle accuracy test and adjustment by collimator system ensure your satisfaction on iM Series product quality.
Applications:
Sokkia IM-101 Total Station is a cutting-edge surveying instrument designed for a wide range of applications across various industries. The product is manufactured in Japan, ensuring high quality and precision. With its CE certification, the Sokkia IM-101 Total Station meets international standards for reliability and accuracy.
One of the key product attributes is its top-notch image quality, providing users with clear and crisp visuals for accurate measurements. The 45mm aperture (EDM:48mm) and 30X magnification of the Sokkia IM-101 Total Station ensure detailed and precise readings, even in challenging lighting conditions.
With a minimum display of 1'', users can easily read and interpret measurements with precision. Weighing in at 5.3kg, the Sokkia IM-101 Total Station is lightweight and portable, making it ideal for fieldwork and on-site surveys.
The Sokkia IM-101 Total Station is suitable for a variety of product application occasions and scenarios. Whether you are conducting land surveys, construction projects, or infrastructure development, this total station offers reliable and accurate measurements. The reflectorless technology allows for quick and efficient distance measurements without the need for a prism, making it a versatile tool for various surveying tasks.
From mapping and topographic surveys to construction layout and boundary marking, the Sokkia IM-101 Total Station excels in delivering precise and consistent results. Its user-friendly interface and intuitive design make it easy to operate for both beginners and experienced surveyors.
Available at a competitive price of 1300USD, the Sokkia IM-101 Total Station offers exceptional value for money, making it the cheapest Topcon total station in its class. The product comes with packaging details of carton+plastic box for secure transportation and storage.

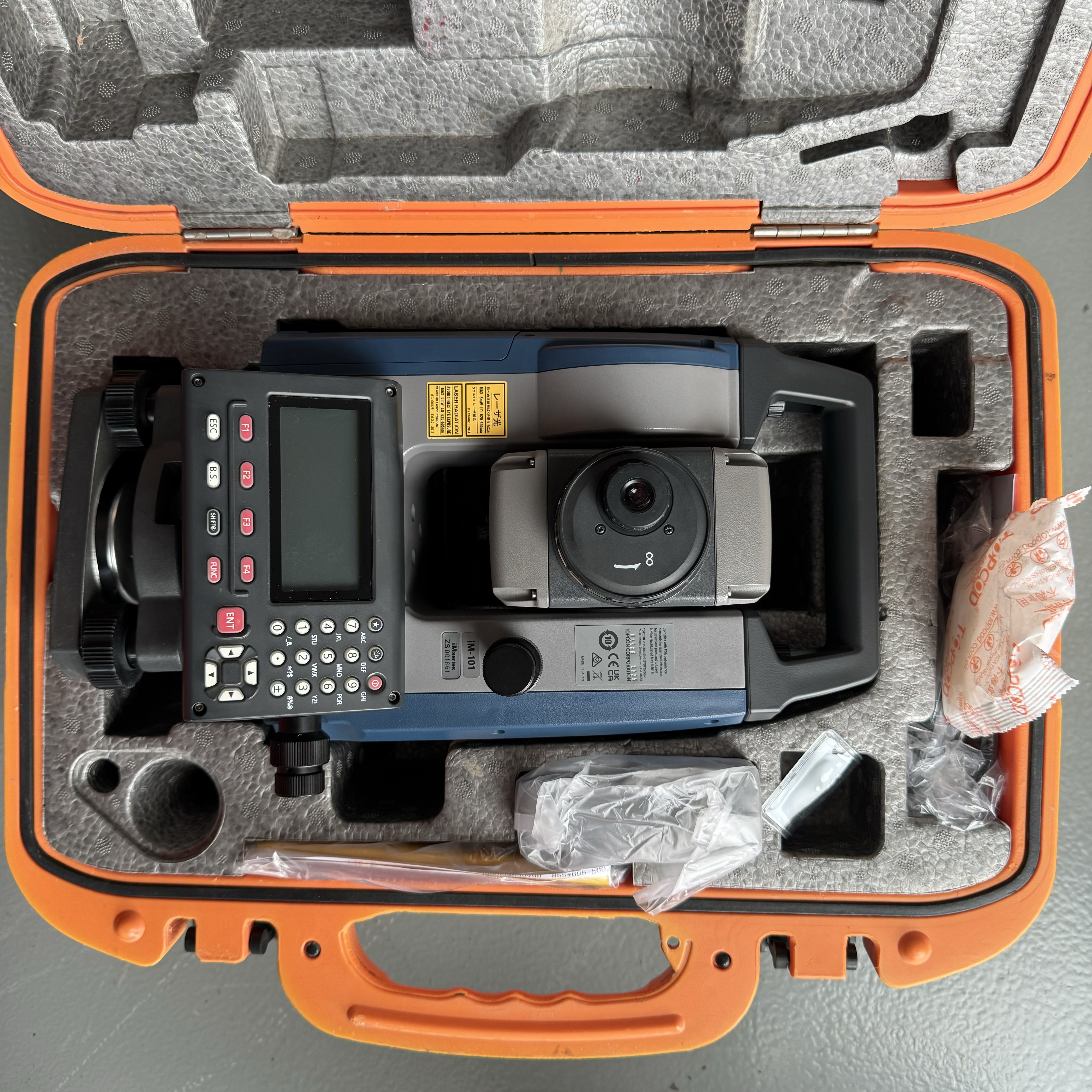

With a minimum order quantity of 1 PC and a delivery time of 2-3 days, customers can quickly acquire the Sokkia IM-101 Total Station for their surveying needs. The payment terms of TT ensure a convenient transaction process, while the supply ability of 1000 pcs per month guarantees product availability for large-scale projects.
