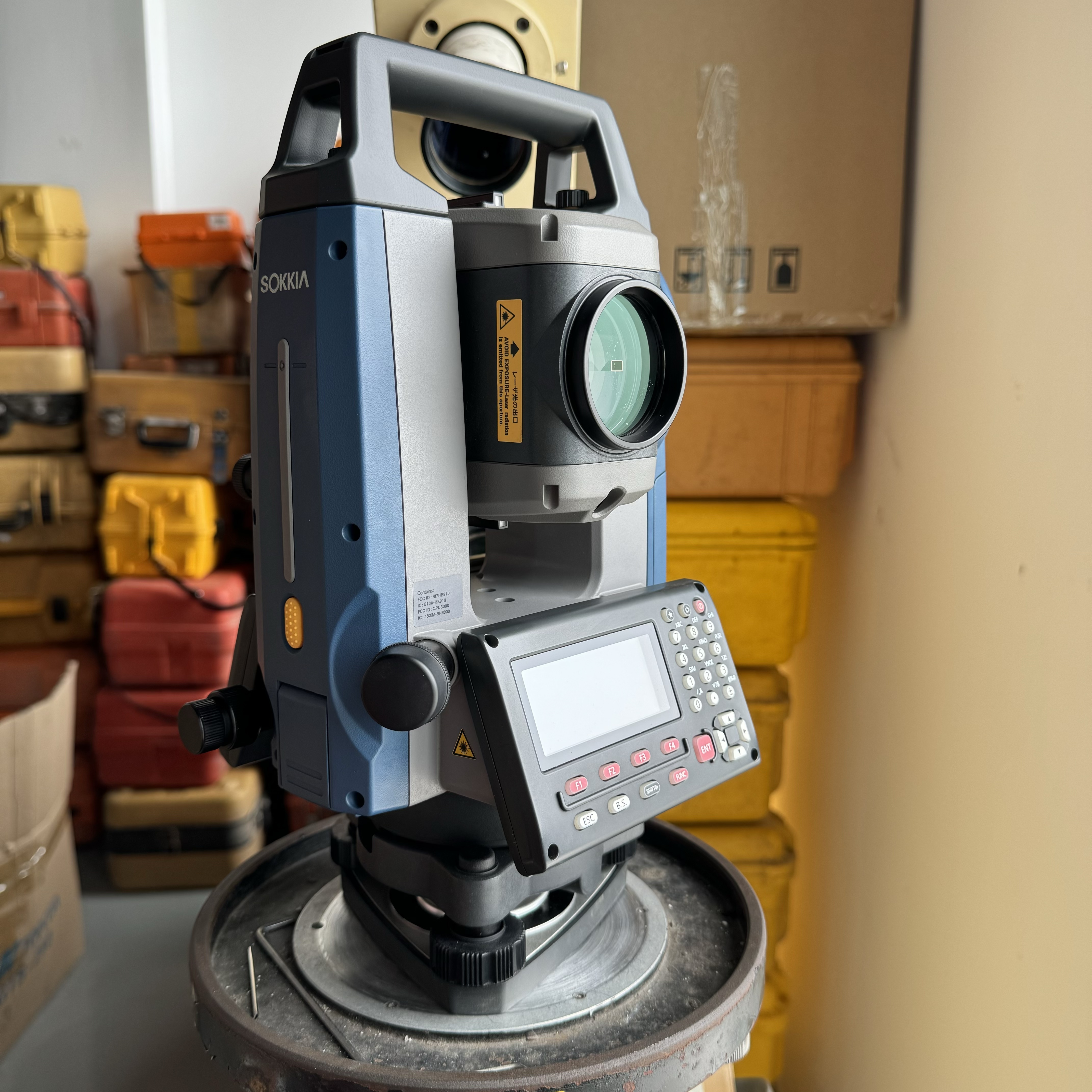

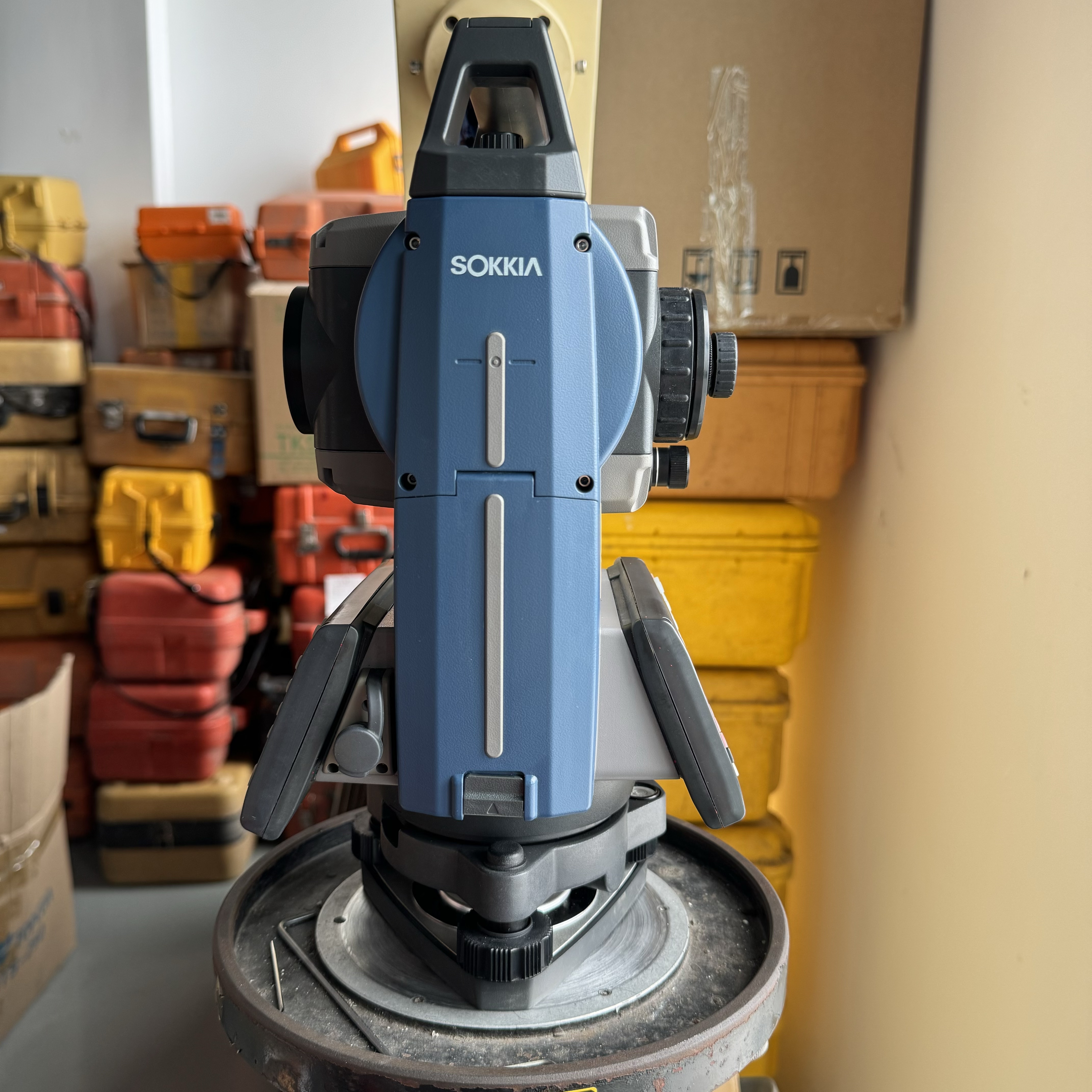

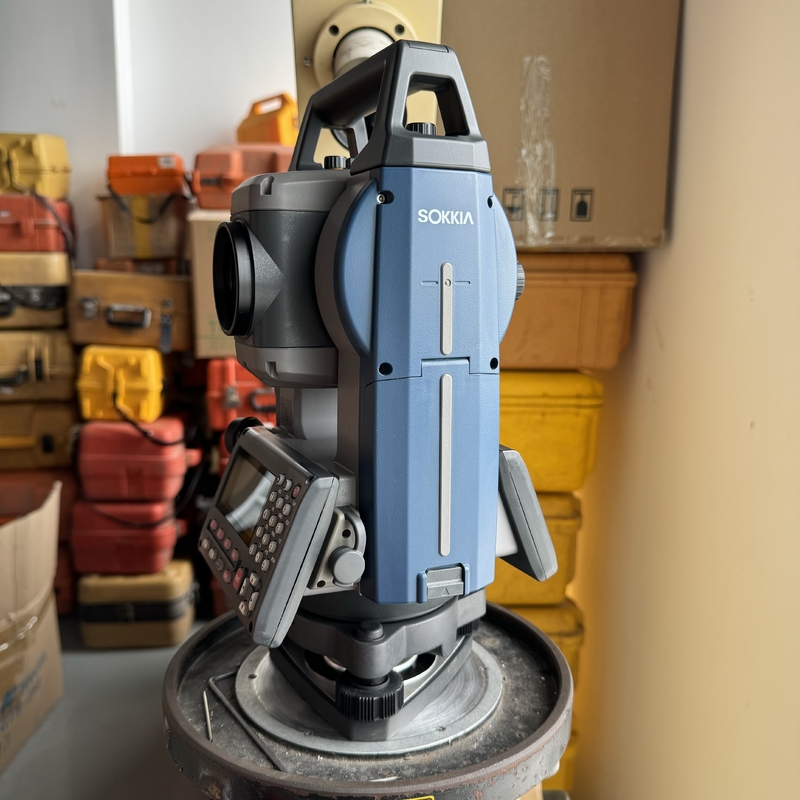

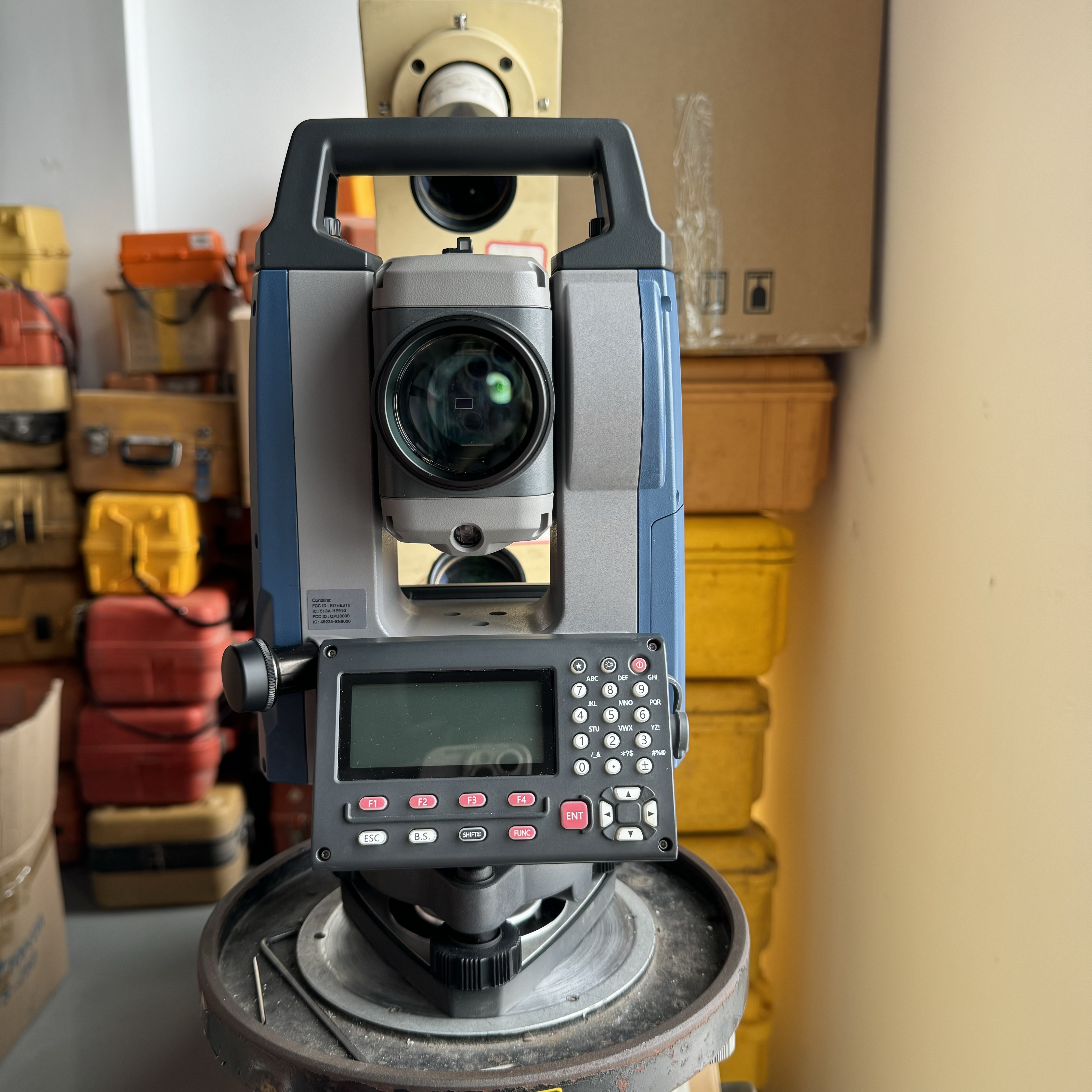

Used Sokkia IM101 total station Capacity About 50000 Points GNSS receiver for High Precision Positioning Solutions

The Sokkia iM101 /iM105 manual Total Station is a versatile equipment manufactured by Sokkia. It is designed to meet a wide range of surveying needs with its intelligent measurement features.

The Sokkia iM101 Manual Total Station is engineered to provide all the essential functions at an affordable price point. Whether you are working on a survey layout or an as-built project, the Sokkia iM101 /iM105 Manual Total Station is equipped to handle even the most demanding tasks.

Features:

With Sokkia IM-105 Total Station /Sokkia IM-101 Total Station you get fast, accurate, and powerful EDM technology. The devices offer best-in-class accuracy up to 6,000 meters with a prism and up to 1000 meters in reflectorless mode. Additionally, they boast a battery life of up to 28 hours. The iM-100 series intelligent measurement station is designed to be your hardest worker out in the field.

Cross-Sectional Survey: The MLM (Missing Line Measurement) program allows for calculating height differences between points. In reflectorless mode, time can be saved measuring multiple points of variation in a large area.

Stake Out: The Guide Light function assists the prism operator in quickly moving to the stake out line for effective stake out operations.

Elevation Stake: Staking out with 3D coordinates eliminates the need to set up the total station on the straight line for all elevation stakes.

Boundary and Cadastral Survey: The Area function enables easy calculation of area. Offset calculation can be used to determine the center point of columns such as electric poles, which cannot be directly measured.

Coordinate Measurement: 3D coordinate data can be managed for various calculations such as Road, Layout, and more. Efficient productivity improvement is achieved through 3D coordinate data management.

Topographic Survey: The trigger key or measuring distance key aids in quickly performing topography while continuously viewing through the telescope. The long distance measuring range reduces the need for instrument changes, enhancing work efficiency.

Improve Topography and Stake Out, with features to achieve faster and more efficient workflows.

Technical Parameters:

Remotely update the firmware via the internet

Improves asset management by checking TS operating time

Remote Lock secures the instrument from theft

Monitor TS health status to enable quick reaction against any functionality issues

The IP66 rating ensures durability for most any rough job site temperatures and conditions.

One battery lasts up to 28 hours, or about four days of normal operation time.

Key buttons are illuminated to minimize mistakes.

Internal memory has 50,000 points to record. USB memory can be used up to 32GB.

• Strong Environmental Spec
• Long Hours Operation
• Bright Illumination Key for Nighttime Work
• Reliable Large Volume Memory

We perform the tough environmental tests to ensure long-term operation even under the rough site environments. Sokkia iM 100 Series total stations are thoroughly inspected with dust-proof and water-proof test chambers.

In addition, the various tests against vibration, drop, temperature, and humidity were successfully passed to achieve the best environmental spec. Also, the measuring distance accuracy test on base line and the instrument leveling and angle accuracy test and adjustment by collimator system ensure your satisfaction on iM Series product quality.

Applications:

Sokkia IM-101 Total Station is a high-precision surveying instrument that offers a wide range of product application occasions and scenarios. With its advanced features and reliable performance, this total station is suitable for various industries and projects.

Product Application Occasions and Scenarios:

• Land Surveying: The Sokkia IM-101 Total Station is ideal for land surveying applications, providing accurate measurements and data for mapping, boundary marking, and construction projects.
• Construction Site Layout: This total station can be used for precise layout and alignment of structures, roads, and utilities on construction sites, ensuring efficient and accurate project execution.
• Building Information Modeling (BIM): The IM-101 Total Station is compatible with BIM software, allowing users to integrate survey data with digital models for better project visualization and management.
• Utility Infrastructure Mapping: With its high accuracy and measurement capabilities, this total station is suitable for mapping utility infrastructure such as pipelines, cables, and communication networks.
• Environmental Monitoring: The Sokkia IM-101 Total Station can be used for environmental monitoring applications, such as monitoring land deformation, assessing natural hazards, and conducting ecological surveys.
• GPS RTK Integration: By integrating GPS RTK technology, this total station enables real-time kinematic positioning for enhanced accuracy and efficiency in surveying and mapping tasks.
• Topcon Total Station Compatibility: The IM-101 Total Station is compatible with Topcon total station software and accessories, allowing seamless integration with existing surveying equipment and workflows.

Designed and manufactured in Japan, the Sokkia IM-101 Total Station meets the highest quality standards and is CE certified. It features a minimum display of 1'', 45mm aperture (EDM: 48mm), and 1'' accuracy, ensuring reliable and precise measurements in various working conditions.

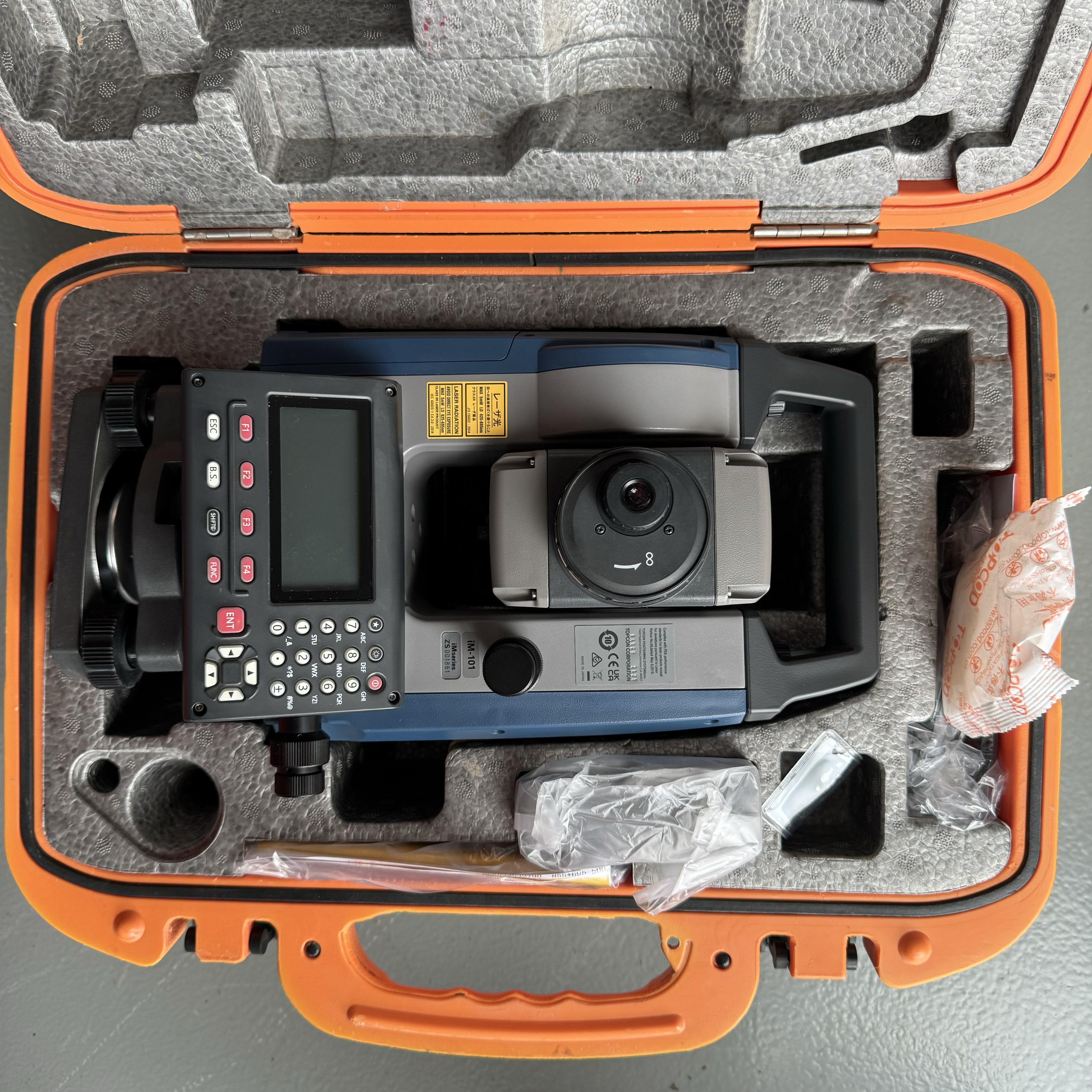

Each Sokkia IM-101 Total Station is packaged in a carton and plastic box for safe transportation and storage. The product has a minimum order quantity of 1 PC and is priced at 1300 USD. Delivery time is 2-3 days, and payment terms are TT. The total station has a supply ability of 1000 pcs per month and comes with a 32GB USB flash memory for data storage.

With its liquid 2-axis tilt sensor, the Sokkia IM-101 Total Station offers enhanced stability and accuracy, making it a versatile and reliable tool for professionals in the surveying and mapping industry.
